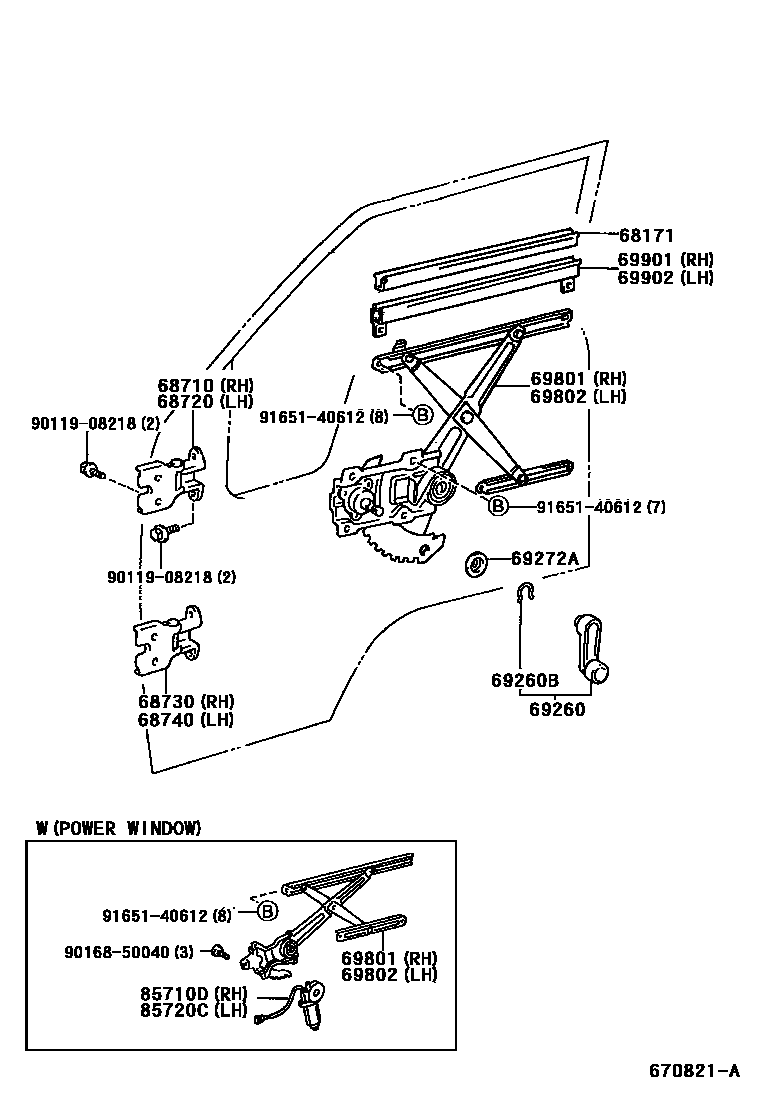

Toyota DYNA200 — FRONT DOOR WINDOW REGULATOR & HINGE
68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-10040-B1×2iBU222..EUR;BU212..LHD..40T..TD;BU102,212,222..RHD..IV3;BU100,101,110,111,14#,211,221,RZU100,YU210..175T,20T,25T,30T,40T199505
BLUISH GRAY,TRIM1#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01274×2iBU222..EUR;BU212..LHD..40T..TD;BU102,212,222..RHD..IV3;BU100,101,110,111,14#,211,221,RZU100,YU210..175T,20T,25T,30T,40T199505-200008
69272APLATE, DOOR WINDOW REGULATOR HANDLE
main69272-30010-08×2iBU222..EUR;BU212..LHD..40T..TD;BU102,212,222..RHD..IV3;BU100,101,110,111,14#,211,221,RZU100,YU210..175T,20T,25T,30T,40T199505
NATURAL WHITE,TRIM1#
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
HONG KONG SPEC
main69810-37010iBU222..EUR;BU212..LHD..40T..TD;BU102,212,222..RHD..IV3;BU100,101,110,111,14#,211,221,RZU100,YU210..175T,20T,25T,30T,40T199505-200008
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
HONG KONG SPEC
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH
HONG KONG SPEC
85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH
HONG KONG SPEC
9011908218
main90119-08218
9016850040
main90168-50040
9165140612
main91651-40612
17 parts on this diagram · 1 diagram in section
FRONT DOOR WINDOW REGULATOR & HINGE for Toyota DYNA200
This section contains 17 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota DYNA200. Key components include: WEATHERSTRIP, FRONT DOOR GLASS CHANNEL, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
