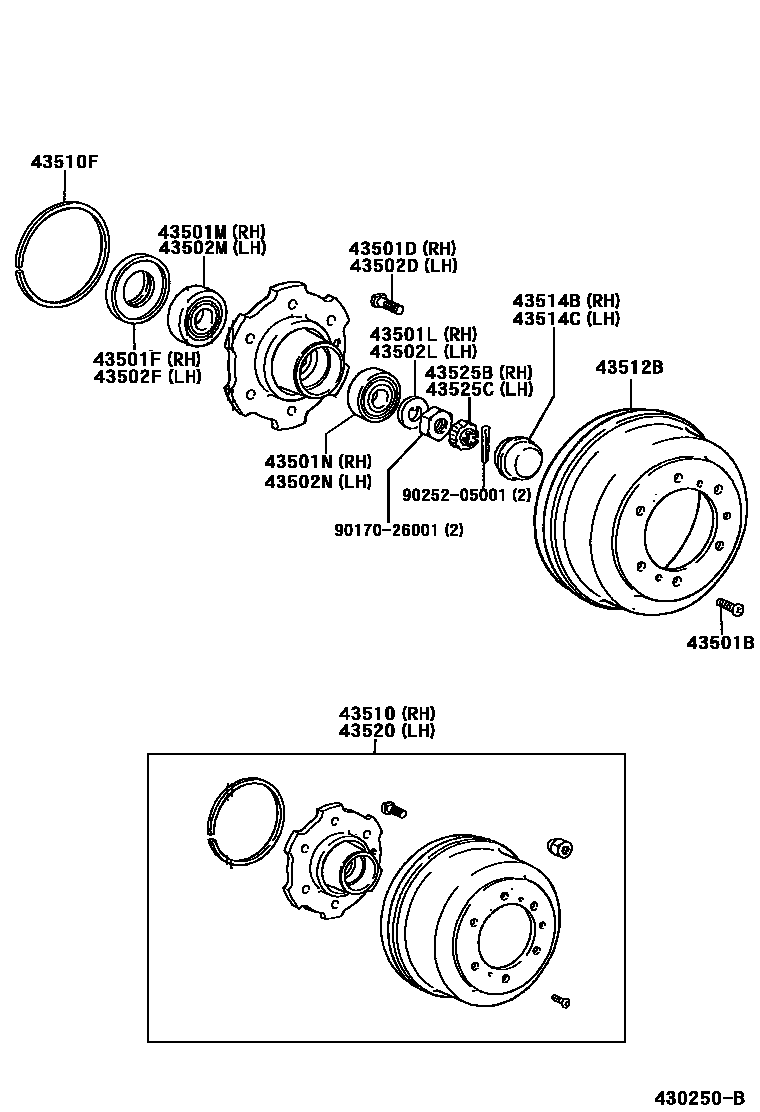

Toyota DYNA200 — FRONT AXLE HUB
43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02045×6iBU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T); BU21#,22#..40T199505
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
43501NBEARING (FOR FRONT AXLE HUB OUTER RH)
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02046×5iBU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T); BU21#,22#..40T199505
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
43502NBEARING (FOR FRONT AXLE HUB OUTER LH)
43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
main43510-37040iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505
BANGLADESH SPEC
43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)
T=1.60
43512DISC, FRONT
main43512-36070×2iBU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505
43512BDRUM, BRAKE
main43512-37040×2iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505
43514BCAP, FRONT AXLE HUB GREASE, RH
43514CCAP, FRONT AXLE HUB GREASE, LH
43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
main43520-37040iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505
BANGLADESH SPEC
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
9017026001
main90170-26001
9025205001
main90252-05001
22 parts on this diagram · 6 diagrams in section
FRONT AXLE HUB for Toyota DYNA200
This section contains 36 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota DYNA200. Key components include: SPACER, STEERING KNUCKLE, PIECE, BALANCE (FOR FRONT BRAKE DRUM), BOLT, SET (FOR FRONT BRAKE DRUM SETTING), HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH).
