Toyota DYNA200 — FOG LAMP
81210LAMP ASSY, FOG
CHINA SPEC & FOG LAMP---BUMPER; CHINA SPEC & W(FOG LAMP---BUMPER) OR ALGERIA SPEC
main81210-39155iBU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3)199505
FOG LAMP---BUMPER
81210BBULB, FOG LAMP
main90981-13029×2iBU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3)199505
12V 35W
main90981-17013×2iBU211..40T..GEN..(IV2,IV3);BU100,101,211..LHD..(175T,40T)..CBU;BU100,140,211..LHD..T3..WT..(20T,25T,30T)199708
24V 35W
81211GLENS, FOG LAMP, RH
81212GASKET, FOG LAMP LENS
81220LAMP ASSY, FOG, LH
CHINA SPEC & FOG LAMP---BUMPER; CHINA SPEC & W(FOG LAMP---BUMPER) OR ALGERIA SPEC
main81220-39095iBU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3)199505
FOG LAMP---BUMPER
81221GLENS, FOG LAMP, LH
8121995403BOLT, FOG LAMP
main81219-95403
8127995700WASHER, SIDE TURN SIGNAL LAMP
main81279-95700
9018905027
main90189-05027
9018906018
main90189-06018

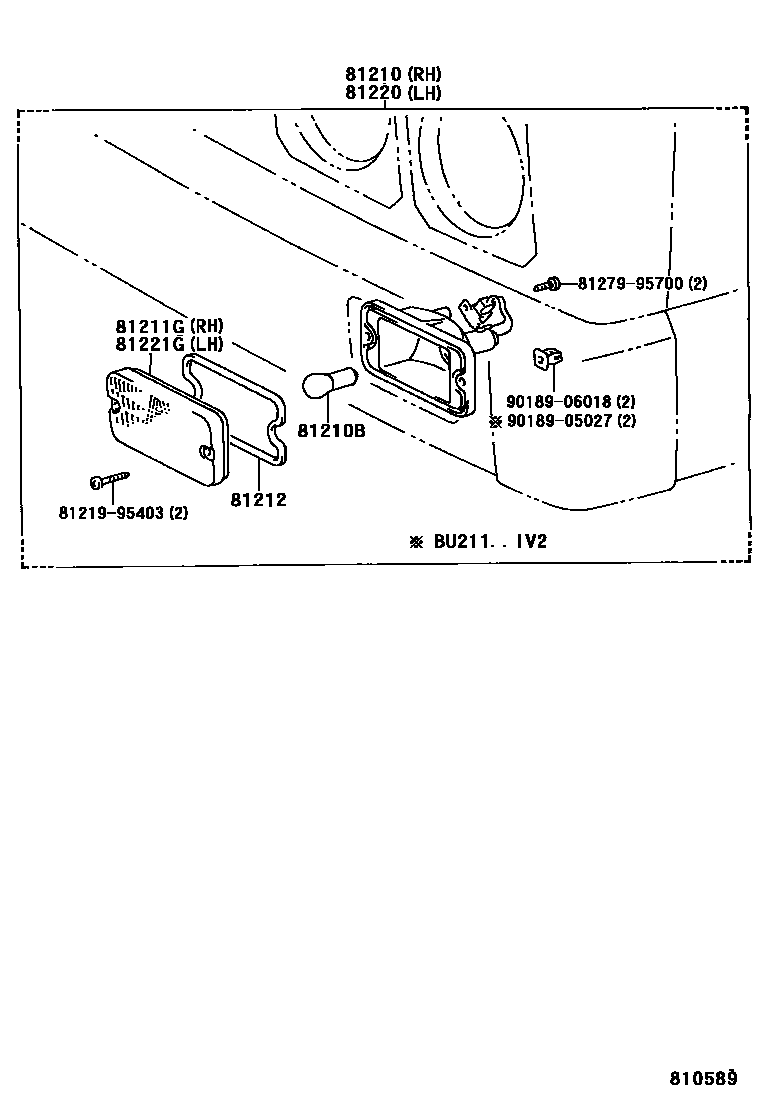

10 parts on this diagram · 1 diagram in section
FOG LAMP for Toyota DYNA200
This section contains 10 genuine Toyota parts for the FOG LAMP system of the Toyota DYNA200. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LENS, FOG LAMP, RH, GASKET, FOG LAMP LENS, LAMP ASSY, FOG, LH.
