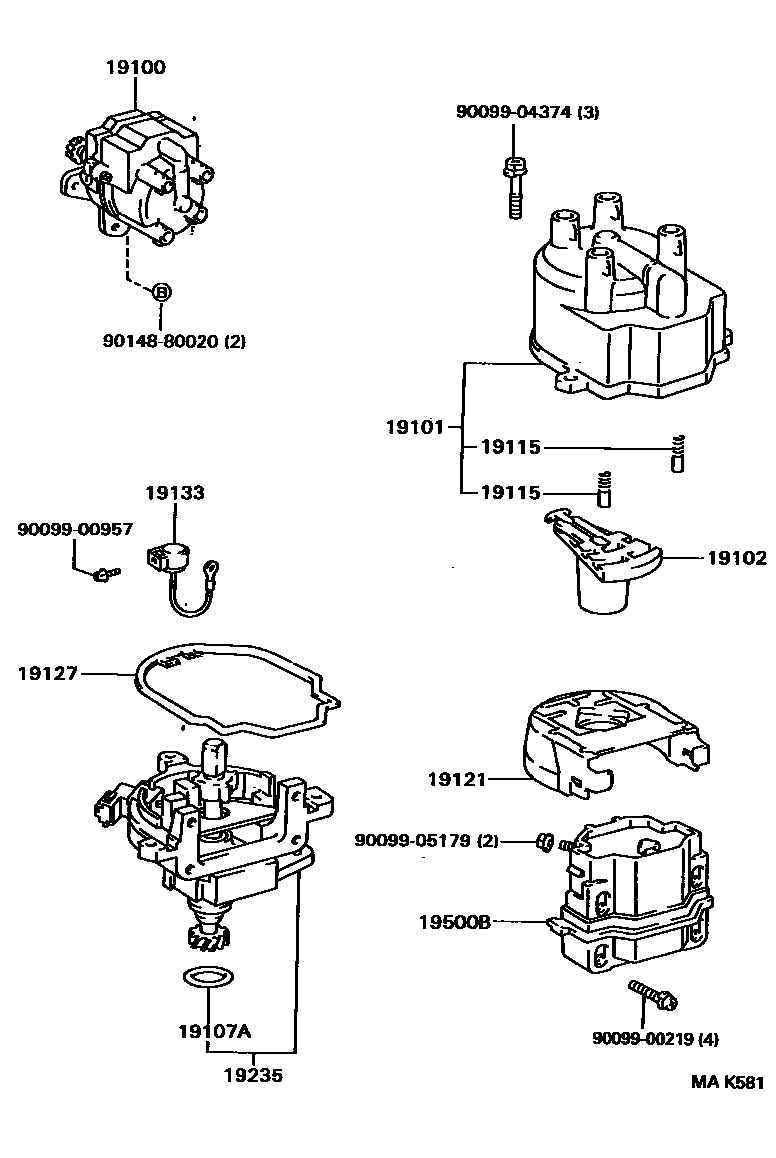

Toyota DYNA200 — DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19030-73080i4Y..YU210199505

main19050-75020i3RZFE..RZU100..RHD199703

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-71010i4Y..YU210199505

main19101-75010i3RZFE..RZU100..RHD199703

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-16010i3RZFE..RZU100..RHD199703

main19102-16040i4Y..YU210199505

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14090i4Y..YU210199505

main90099-14127i3RZFE..RZU100..RHD199703

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i4Y..YU210199505

19121COVER, DUST PROOF

main19121-11080i3RZFE..RZU100..RHD199703

main19121-63010i4Y..YU210199505

NO.1

main19121-63040i4Y..YU210199505

NO.2

19127PACKING, DUST PROOF

main19127-15120i3RZFE..RZU100..RHD199703

main19127-63010i4Y..YU210199505

NO.1

main19127-63020i4Y..YU210199505

NO.2

19133CONDENSER, DISTRIBUTOR

main19133-16240i3RZFE..RZU100..RHD199703

19235HOUSING, DISTRIBUTOR

main19235-72011i4Y..YU210199505

main19235-75060i3RZFE..RZU100..RHD199703

19500BCOIL ASSY, IGNITION

main90919-02139i4Y..YU210199505

main90919-02163i3RZFE..RZU100..RHD199703

9009900219

main90099-00219

9009900957

main90099-00957

9009904374

main90099-04374

9009905179

main90099-05179

9014880020

main90148-80020

15 parts on this diagram · 2 diagrams in section
