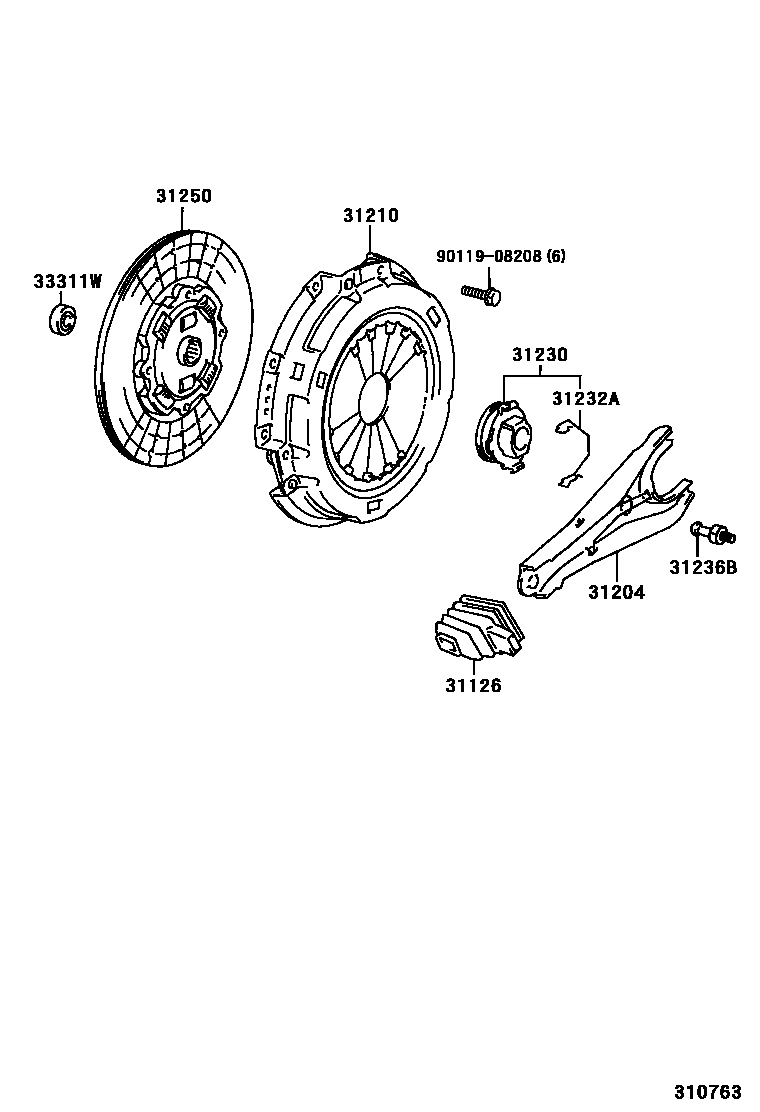

Toyota DYNA200 — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
main31126-36080iBU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,11#,14#,RZU100..(DM1,DM6,T1,T2,T3,T4,TW2)..(DSL,EFI)199505
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-35031iBU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,11#,14#,YU210..(DM1,DM6,T1,T2,T3,TW2)..(CBR,DSL)199505
31210COVER ASSY, CLUTCH
main31210-36170iBU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU101,111,112,141,142..(DM1,DM6,T1,T2,T3,TW2)..DSL199505
31230BEARING ASSY, CLUTCH RELEASE
main31230-36150iBU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL199505
31232ACLIP, RELEASE BEARING HUB
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
main31232-36010iBU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL199505
31236BSUPPORT, RELEASE FORK
main31236-35030iBU211..40T..SA;BU102,221..SA,TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,11#,14#,YU210..(DM1,DM6,T1,T2,T3,TW2)..(CBR,DSL)199505
main31236-36060iBU102..TD;BU102,112,142,212,213,222,223..(25T,30T,40T)..(ARL,EUR,GEN,SA)199505-200110
31250DISC ASSY, CLUTCH
33311WBEARING (FOR INPUT SHAFT)
main90363-12018iBU222..EUR;BU212,222..RHD;BU101,111,141,142,211,213,221,223;BU212,RZU100..LHD..(15T,40T)..(EFI,TD)199904-200006
NSK
NACHI
9011908208
main90119-08208
9 parts on this diagram · 4 diagrams in section
CLUTCH & RELEASE FORK for Toyota DYNA200
This section contains 11 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota DYNA200. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
