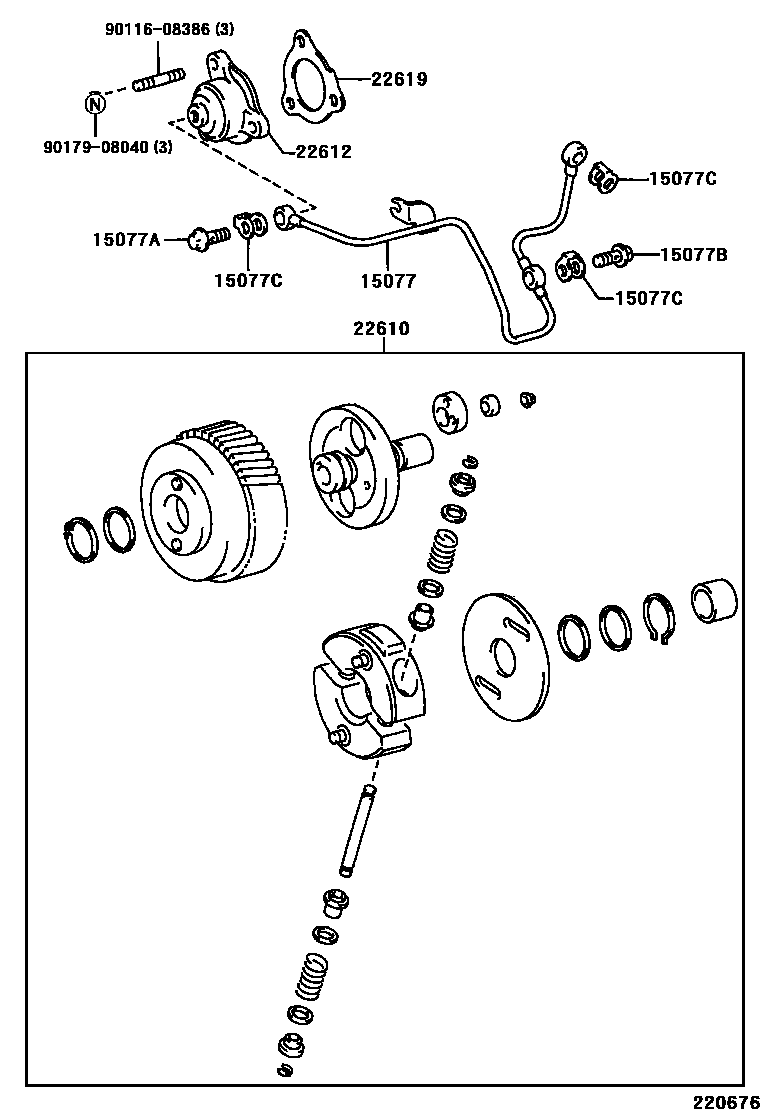

Toyota DYNA200 — AUTOMATIC TIMER

15077PIPE SUB-ASSY, AUTOMATIC TIMER OIL

main15077-58010i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

15077AUNION, NO.1(FOR AUTOMATIC TIMER OIL PIPE)

main90401-10059i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

15077BUNION, NO.2(FOR AUTOMATIC TIMER OIL PIPE)

main90401-10026i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

15077CGASKET, NO.1(FOR AUTOMATIC TIMER OIL PIPE)

main90904-30007×3i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22610TIMER ASSY, AUTOMATIC

main22610-58350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22612COVER, TIMER

main22650-58350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22619GASKET, TIMER COVER

main22619-58350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

9011608386

main90116-08386

9017908040

main90179-08040

9 parts on this diagram · 1 diagram in section
