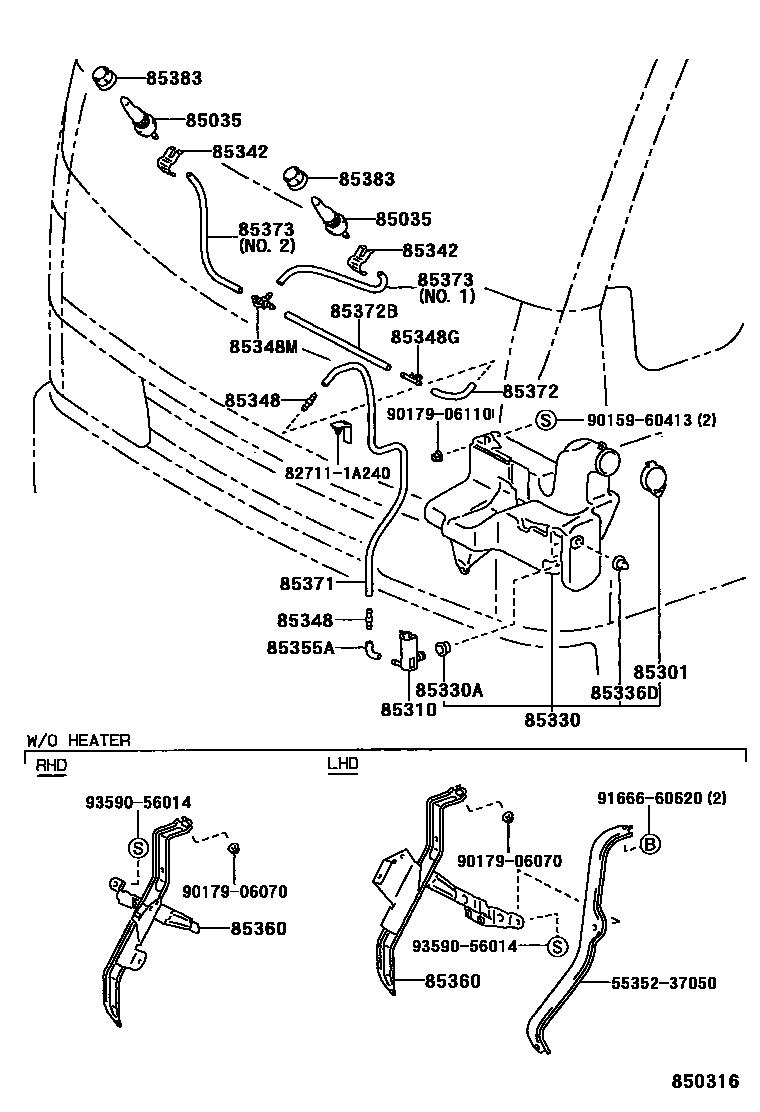

Toyota DYNA200 — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-22080iRZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)199505-200008
main85310-90B00iBU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN; BU141..LHD; BU212..RHD..GEN..IV3;BU212..30T..GEN..IV3;BU102,111,112,222..GEN..IV3199505-199708
24V; CHINA SPEC; CHINA SPEC OR ALGERIA SPEC
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85342HOLDER, WASHER NOZZLE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85355AJOINT, WINDSHIELD WASHER ELBOW
85360BRACKET ASSY, WINDSHIELD WASHER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1800(*H,L=760)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=130
L=50
L=130
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1800(*H,L=410)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=340),NO.1; L=1450(*H,L=410),NO.2
L=1000(*H,L=340),NO.1
L=170
85383HOLDER, FRONT WASHER NOZZLE
5535237050ORNAMENT, VENTILATOR LOUVER, CENTER
main55352-37050
827111A240WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A240
9015960413
main90159-60413
9017906070
main90179-06070
9017906110
main90179-06110
9166660620
main91666-60620
9359056014
main93590-56014
24 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota DYNA200
This section contains 29 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota DYNA200. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
