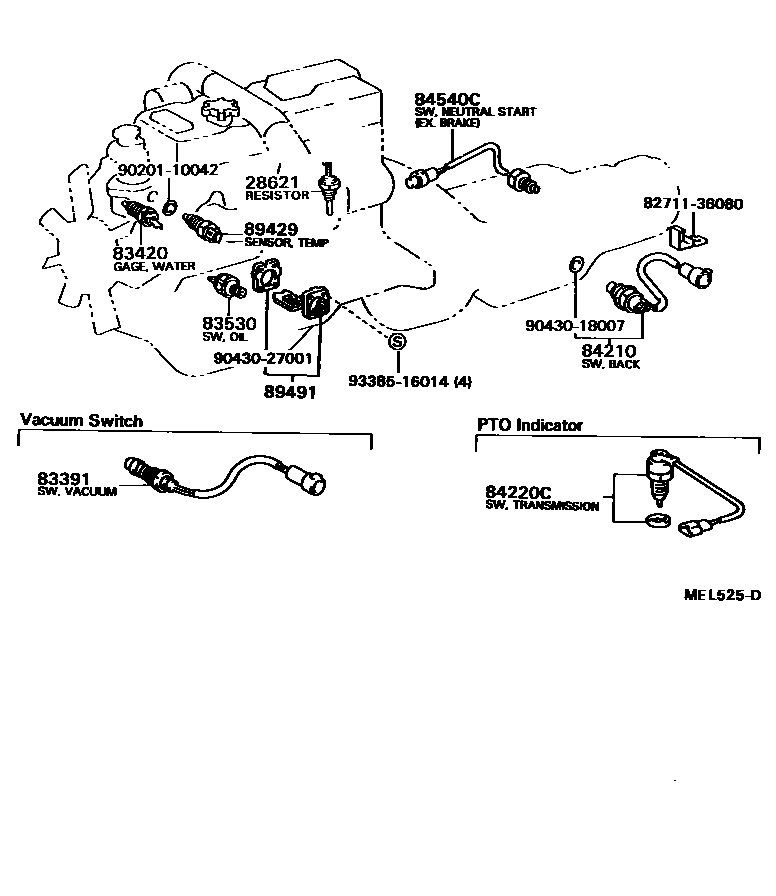

Toyota DYNA200 — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

28621RESISTOR, GLOW PLUG

main28621-57011i3B..BU79,92199210-199505

83391SWITCH, VACUUM

main83391-32020iBU7#,88,92198808-199309

sub83391-35040

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iBU79,89,9#199309-199311

NIPPONDENSO

main83420-20020iBU76,8#,96198808-198811

main83420-20030iBU79,89,92199311-199505

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iBU7#,8#,9#198808-199309

sub83530-28030

main83530-14070iBU79,89,9#199309-199311

sub83530-28010

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iBU79,89,9#199309-199311

main84210-60021iBU76,8#,96198808-199205

84220CSWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-22030iBU7#,88,92198808-199505

84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

main84540-36050iBU7#,8#,9#198808-199505

89429SENSOR, OIL TEMPERATURE

main89422-20010iBU7#,88,9#198808-199505

89491SENSOR, ENGINE OIL LEVEL

main89491-36040iBU79,88,89,9#198910-199311

main89491-36050iBU76,84198910-199210

8271136080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36080

9020110042

main90201-10042

9043018007

main90430-18007

9043027001

main90430-27001

9338516014

main93385-16014

14 parts on this diagram · 5 diagrams in section
