Toyota DYNA200 — PARTIAL ENGINE ASSEMBLY

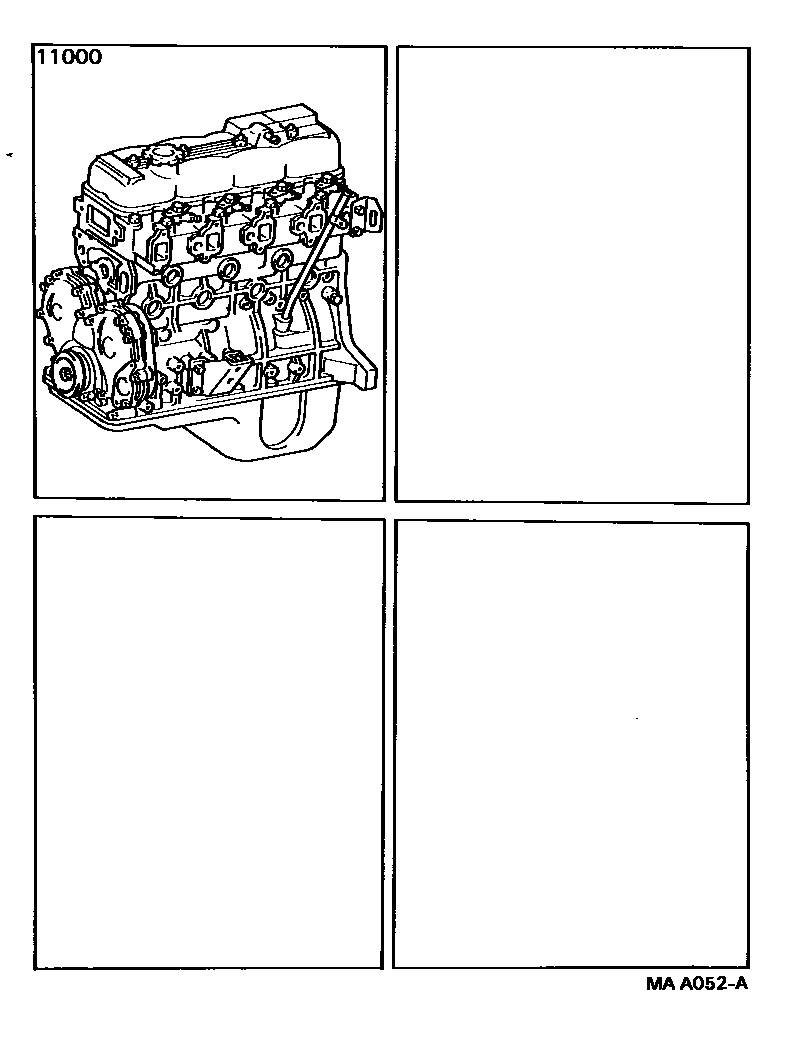

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-56300i198808-198910
W(POWER STEERING)
sub12129-56010
sub93385-16014
main19000-56301i198910-199210
W(POWER STEERING)
main19000-56320i198808-198910
sub12129-56010
sub93385-16014
main19000-56321i198910-199210
main19000-56330i198808-198910
sub12129-56010
sub93385-16014
main19000-56331i198910-199210
main19000-58480i198808-198910
W(POWER STEERING)
sub12129-58010
sub93385-16014
main19000-58481i198910-199210
W(POWER STEERING)
main19000-58490i198808-198910
sub12129-58010
sub93385-16014
main19000-58491i198910-199210
main19000-58620i198808-198910
W(POWER STEERING)
sub12129-58010
sub93385-16014
main19000-58621i198910-199310
W(POWER STEERING)
main19000-58630i198808-198910
sub12129-58010
sub93385-16014
main19000-58631i198910-199310
main19000-58660i199210-199505
W(POWER STEERING)
main19000-58670i199210-199505

1 parts on this diagram · 1 diagram in section
