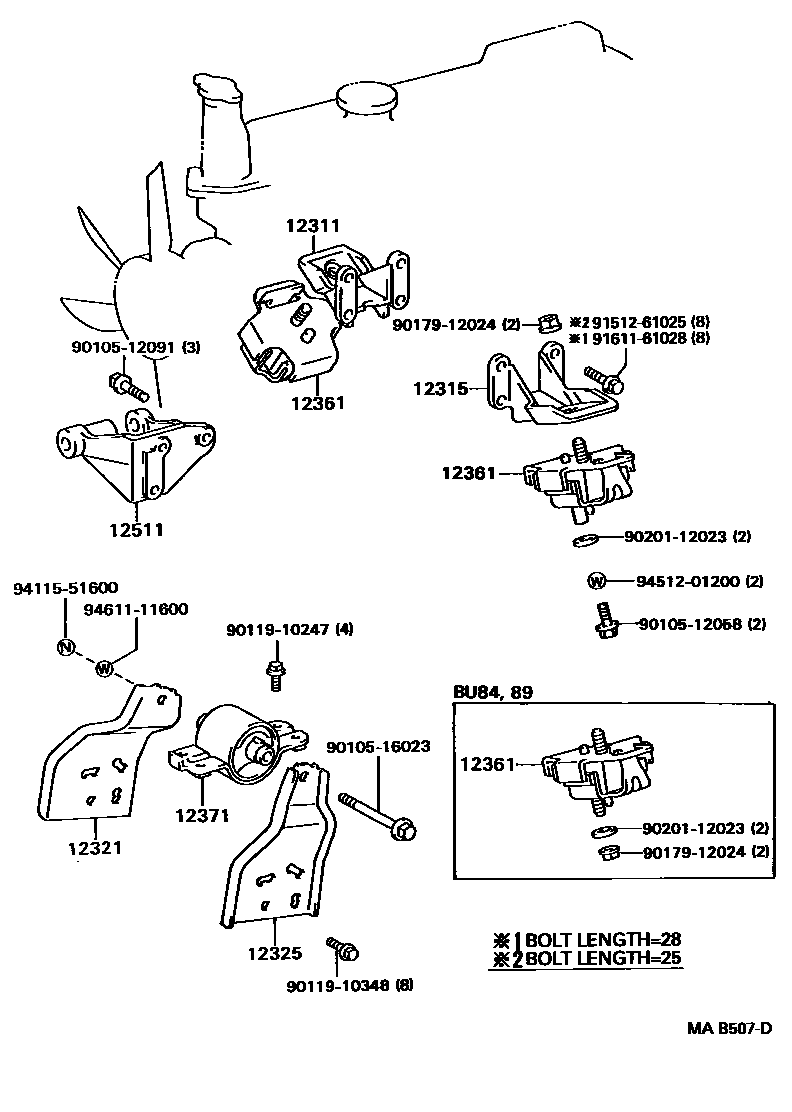

Toyota DYNA200 — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12321BRACKET, ENGINE MOUNTING, REAR, NO.1
12325BRACKET, ENGINE MOUNTING, NO.3
12361INSULATOR, ENGINE MOUNTING, FRONT
RH
LH
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12511BRACKET, ALTERNATOR, NO.1
9010512058
main90105-12058
9010512091
main90105-12091
9010516023
main90105-16023
9011910247
main90119-10247
9011910348
main90119-10348
9017912024
main90179-12024
9020112023
main90201-12023
9151261025
main91512-61025
9161161028
main91611-61028
9411551600
main94115-51600
9451201200
main94512-01200
9461111600
main94611-11600
19 parts on this diagram · 1 diagram in section
MOUNTING for Toyota DYNA200
This section contains 19 genuine Toyota parts for the MOUNTING system of the Toyota DYNA200. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, BRACKET, ENGINE MOUNTING, NO.3, INSULATOR, ENGINE MOUNTING, FRONT.
