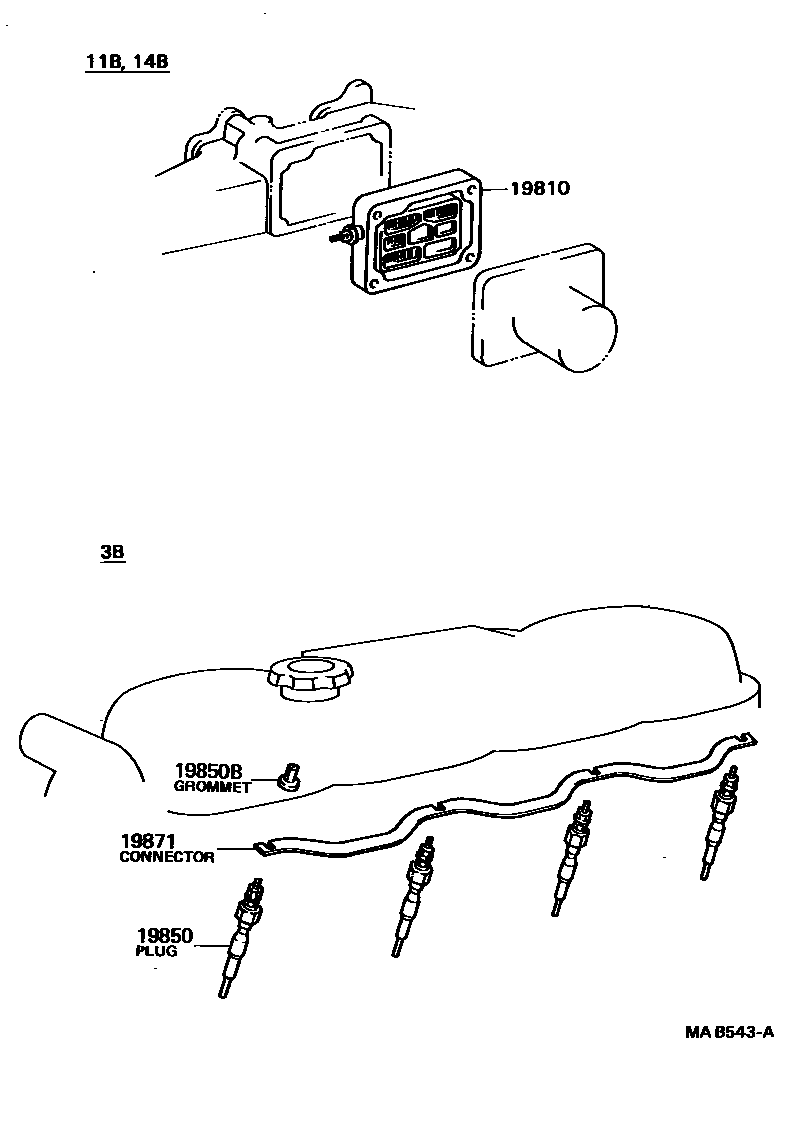

Toyota DYNA200 — IGNITION COIL & SPARK PLUG / GLOW PLUG

19810HEATER ASSY, INTAKE

main19810-58040i198808-199310

19850PLUG ASSY, GLOW

main19850-58010×4i199210-199505

*BV-GV=24V-23V

main19850-68010×4i199210-199505

*BV-GV=12V-10.5V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×3i199210-199505

19871CONNECTOR, GLOW PLUG NO.1

main19871-56020i199210-199505

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota DYNA200

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota DYNA200. Key components include: HEATER ASSY, INTAKE, PLUG ASSY, GLOW, GROMMET, SCREW(FOR GLOW PLUG), CONNECTOR, GLOW PLUG NO.1.
