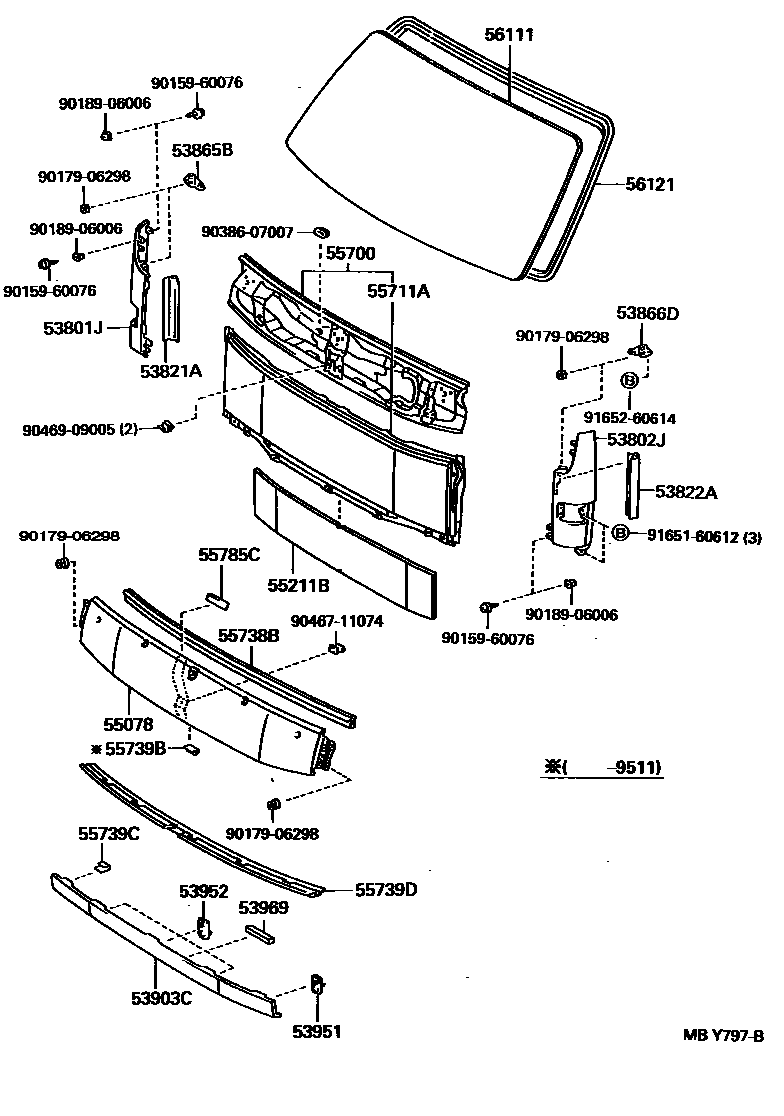

Toyota DYNA200 — FRONT PANEL & WINDSHIELD GLASS

0001 1 0002 1

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-37010iBU10#,111,14#,21#,22#,RZU100,YU210200008

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-37010iBU10#,111,14#,21#,22#,RZU100,YU210200008

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-37020iBU10#,111,14#,21#,22#,RZU100,YU210200008

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53821-37020iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

53865BPLATE, FRONT FENDER EXTENSION, RH

main53865-37010iBU10#,111,14#,21#,22#,RZU100,YU210200008

53866DPLATE, FRONT FENDER EXTENSION, LH

main53866-37010iBU10#,111,14#,21#,22#,RZU100,YU210200008

53903CGARNISH SUB-ASSY, FRONT PANEL, LOWER

main53903-37010iBU111..RHD;BU101..RHD..WT..IV3199505-199703

HONG KONG SPEC

main53903-37020iBU211,221..RHD..40T..GEN..IV3199505-199703

HONG KONG SPEC

53951SUPPORT, FRONT END PANEL, UPPER

main53951-37010×2iBU111,221..RHD..GEN;BU101,211..RHD..WT..(20T,40T)..GEN..IV3199505-199703

HONG KONG SPEC

53952SUPPORT, FRONT END PANEL, LOWER

main53952-37010×3iBU142..ARL,EUR;BU101..RHD..ST..CBU;BU101..RHD..(ARL,GEN)..IV3;BU100,110,141..RHD..(175T,20T,30T);BU102,112,142,RZU100..(15T,20T,30T)..GEN199708-200008

53969PACKING, AIR CLEANER INLET, NO.4

main53969-37010iBU111..RHD;BU101..RHD..WT..IV3199505-199703

HONG KONG SPEC

55078COVER SUB-ASSY, FRONT PANEL

main55078-37010iBU10#,110,111,14#,RZU100..RHD199505

main55078-37020iBU10#,111,112,14#,RZU100..LHD199505

main55078-37040iBU211,212,221,222,YU210..RHD200008

main55078-37050iBU21#,22#..LHD199505

55211BSILENCER, FRONT PANEL

main55211-37010iBU140,142..EUR;BU101..175T..GEN199505

main55211-37020iBU222..EUR199902-199905

55700PANEL ASSY, FRONT

main55700-37030iRZU100..RHD;BU100,101,110,141,142..ARL,SA199505-200212

W(FRONT HEATOR OR BOOSTVENTILATOR)

main55700-37040iBU10#,111,112,14#,RZU100..LHD199505-200212

main55700-37050iBU211,221..RHD..GEN..(CBU,IV3)199505-200212

W(FRONT HEATOR OR BOOSTVENTILATOR)

main55700-37060iBU211,221..LHD;BU212..LHD..40T..TD199505-199901

W(FRONT HEATOR OR BOOSTVENTILATOR)

sub91651-60820

main55700-37061iBU213,223199908-200302

main55700-37070iBU101,102,111,14#..RHD..GEN199505

main55700-37080iBU100,101,111,14#..LHD..(DM1,T3,TW2)..GEN199505-200212

W(FRONT HEATOR OR BOOSTVENTILATOR)

main55700-37090iBU212..RHD..GEN..IV3;BU211,221..RHD..GEN..(CBU,IV3)199808

THAILAND SPEC

main55700-37100iBU211,221..LHD;BU212..LHD..40T..TD199505-199901

sub91651-60820

main55700-37101iBU211,213,223200302

55711APANEL, FRONT, LOWER

main55711-37030iBU10#,11#,14#,RZU100199505

main55711-37040iBU21#,22#,YU210199505-200008

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-37010iBU10#,11#,14#,RZU100199505

main55738-37030iBU21#,22#,YU210199505-200008

55739BPROTECTOR, FRONT PANEL COVER, NO.2

main55739-37010×2iBU10#,11#,14#,21#,22#,YU210199505-199511

55739CPROTECTER, FRONT PANEL COVER, NO.2

main55739-37010×6iBU211,221..RHD..40T..GEN..IV3199505-199703

HONG KONG SPEC

55739DPROTECTOR, FRONT PANEL COVER, NO.2

main55739-37020iBU10#,11#,14#,RZU100199505

main55739-37040iBU21#,22#,YU210200008

55785CPAD, FRONT PANEL COVER

main55785-37010×2iBU10#,11#,14#199505-199603

main82712-37010×2iBU21#,22#,YU210199603-200008

56111GLASS, WINDSHIELD

main56111-37011iBU10#,11#,14#..ARL,GEN,TAIW199505-199610

*TL,T=5.7

main56111-37021iBU100,101,14#..(T1,T3)..GEN199505-199905

*LAM,T=5.7,BRONZE

main56111-37031iBU21#,22#,YU210199505-199610

*TL,T=5.7

main56111-37041iBU212..LHD..40T..TD;BU211,221..T3..GEN..(CBU,IV3)199505-199905

*LAM,T=5.7,BRONZE

main56111-37080iBU142..(20T,25T)..(ARL,GEN);BU10#,11#,141,RZU100..DSL,EFI199905

*TL,T=5.7,GREEN

main56111-37090iBU21#,22#..ARL,EUR,GEN199708-200108

*TL,T=5.7,GREEN

56121WEATHERSTRIP, WINDSHIELD

main56121-37010iBU10#,11#,14#..ARL,GEN,TAIW199505-199605

main56121-37020iBU212..DSL;BU211..CBU,IV2;BU212..TD..CBU;BU213,22#,YU210;BU211..30T..IV3;BU211,212..LHD..40T..IV3200110

9015960076

main90159-60076

9017906298

main90179-06298

9018906006

main90189-06006

9038607007

main90386-07007

9046711074

main90467-11074

9046909005

main90469-09005

9165160612

main91651-60612

9165260614

main91652-60614

29 parts on this diagram · 2 diagrams in section
