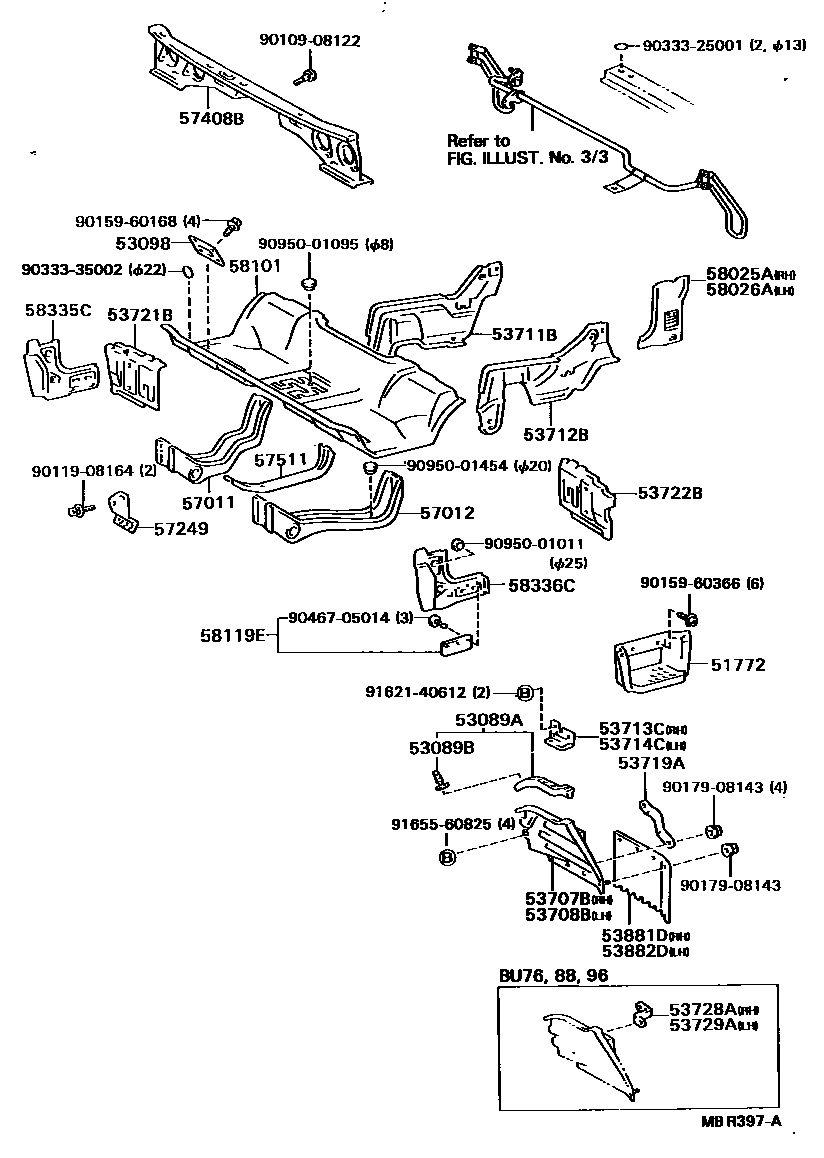

Toyota DYNA200 — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51772PLATE, STEP
RH
RH
LH
LH
53089AMUDGUARD SUB-ASSY, FRONT
53089BCLIP, FRONT MUDGUARD
53098COVER SUB-ASSY, AIR CLEANER INLET HOLE
53707BAPRON SUB-ASSY, FENDER SIDE, RH
53708BAPRON SUB-ASSY, FENDER SIDE, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53719ABRACE, FENDER APRON
53721BAPRON SUB-ASSY, FENDER SIDE, RH
53722BAPRON SUB-ASSY, FENDER SIDE, LH
53728ABRACKET, FENDER APRON, RH
53729ABRACKET, FENDER APRON, LH
57011MEMBER SUB-ASSY, FLOOR, RH
57012MENBER SUB-ASSY
57249BRACKET, FLEXIBLE HOSE, NO.1
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
57511REINFORCEMENT, FRONT FLOOR, CENTER
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58101PAN SUB-ASSY, FRONT FLOOR
W(PTO & HEADLAMP CLEANER)
W(PTO)
W(HEADLAMP CLEANER)
58119ECOVER, FRONT FLOOR SIDE, FRONT
58335CPLATE, FLOOR SIDE, FRONT RH
58336CPLATE, FLOOR SIDE, FRONT LH
9010908122
main90109-08122
9011908164
main90119-08164
9015960168
main90159-60168
9015960366
main90159-60366
9017908143
main90179-08143
9033325001
main90333-25001
9033335002
main90333-35002
9046705014
main90467-05014
9095001011
main90950-01011
9095001095
main90950-01095
9095001454
main90950-01454
9162140612
main91621-40612
9165560825
main91655-60825
41 parts on this diagram · 3 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota DYNA200
This section contains 67 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota DYNA200. Key components include: PLATE, STEP, MUDGUARD SUB-ASSY, FRONT, CLIP, FRONT MUDGUARD, COVER SUB-ASSY, AIR CLEANER INLET HOLE, APRON SUB-ASSY, FENDER SIDE, RH.
