Toyota DYNA200 — DISTRIBUTOR

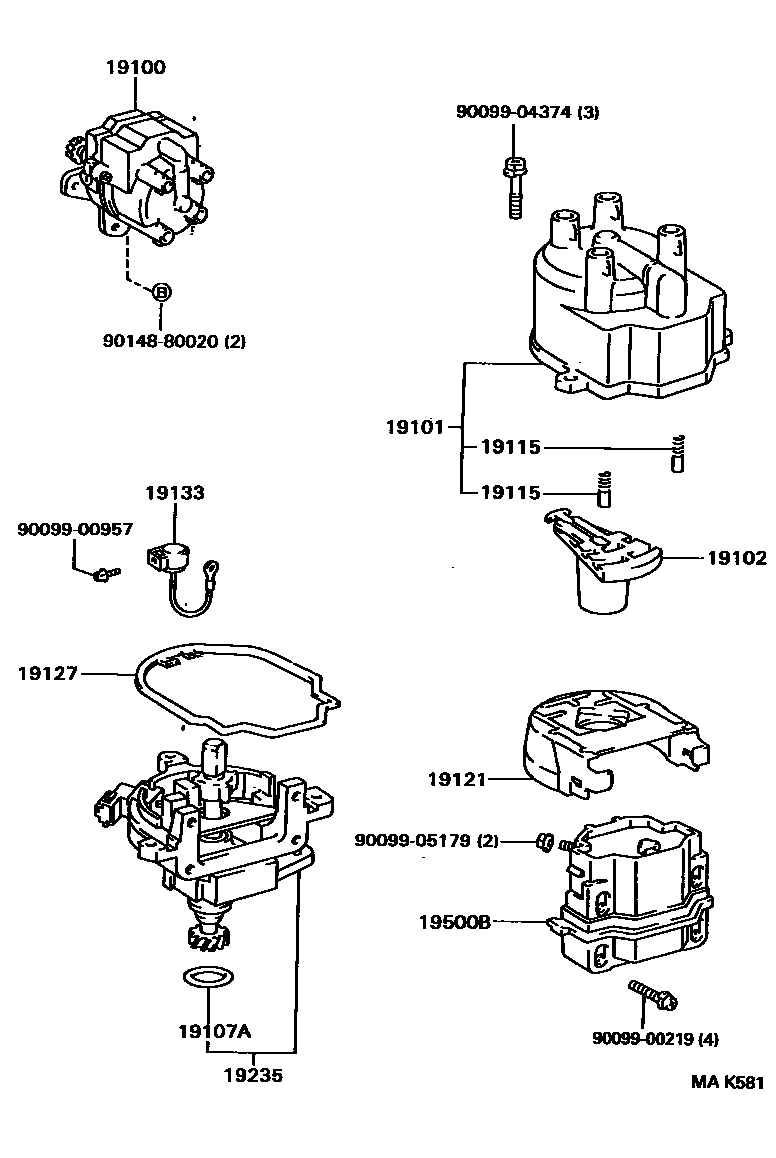

Parts diagram

19100DISTRIBUTOR ASSY

main19030-73080i199505

main19050-75020i199703

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-71010i199505

main19101-75010i199703

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-16010i199703

main19102-16040i199505

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14090i199505

main90099-14127i199703

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i199505

19121COVER, DUST PROOF

main19121-11080i199703

main19121-63010i199505

NO.1

main19121-63040i199505

NO.2

19127PACKING, DUST PROOF

main19127-15120i199703

main19127-63010i199505

NO.1

main19127-63020i199505

NO.2

19133CONDENSER, DISTRIBUTOR

main19133-16240i199703

19235HOUSING, DISTRIBUTOR

main19235-72011i199505

main19235-75060i199703

19500BCOIL ASSY, IGNITION

main90919-02139i199505

main90919-02163i199703

9009900219

main90099-00219

9009900957

main90099-00957

9009904374

main90099-04374

9009905179

main90099-05179

9014880020

main90148-80020

15 parts on this diagram · 2 diagrams in section

DISTRIBUTOR for Toyota DYNA200

This section contains 38 genuine Toyota parts for the DISTRIBUTOR system of the Toyota DYNA200. Key components include: IGNITION COIL & SPARK PLUG / GLOW PLUG, DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING.
