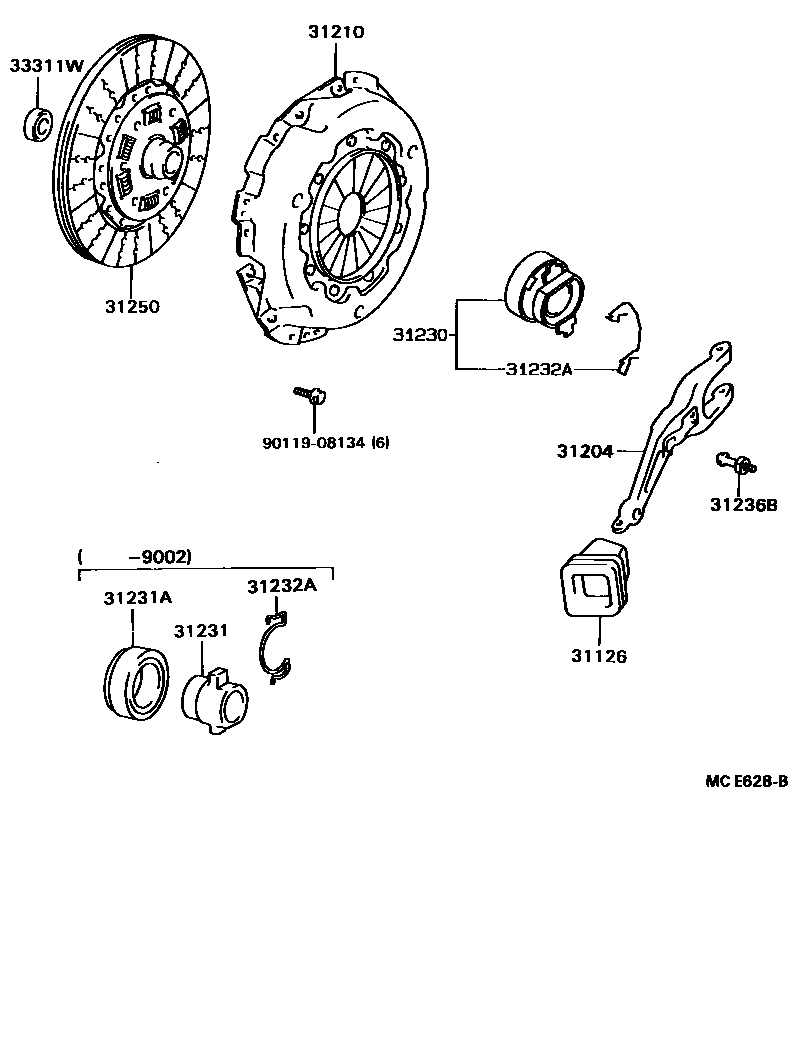

Toyota DYNA200 — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060i198808-198910

main31126-36050i198910-199505

main31126-36080i199301-199505

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35031i198808-198910

main31204-36100i198910-199505

31210COVER ASSY, CLUTCH

main31210-36140i198808-198910

main31210-36150i198808-198910

main31210-36160i198910-199505

main31210-36170i198910-199505

31230BEARING ASSY, CLUTCH RELEASE

main31230-36150i198910-199505

31231HUB, CLUTCH RELEASE BEARING

main31231-36120i198808-198910

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45013i198808-198910

31232ACLIP, RELEASE BEARING HUB

main31232-35010i198808-198910

main31232-36010i198910-199505

31236BSUPPORT, RELEASE FORK

main31236-35030i198808-198910

main31236-36040i198910-199505

31250DISC ASSY, CLUTCH

main31250-36410i198808-199006

main31250-36411i199006-199412

main31250-36412i199412-199505

33311WBEARING (FOR INPUT SHAFT)

main90363-12002i198808-199505

9011908134

main90119-08134

11 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota DYNA200

This section contains 11 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota DYNA200. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, HUB, CLUTCH RELEASE BEARING.
