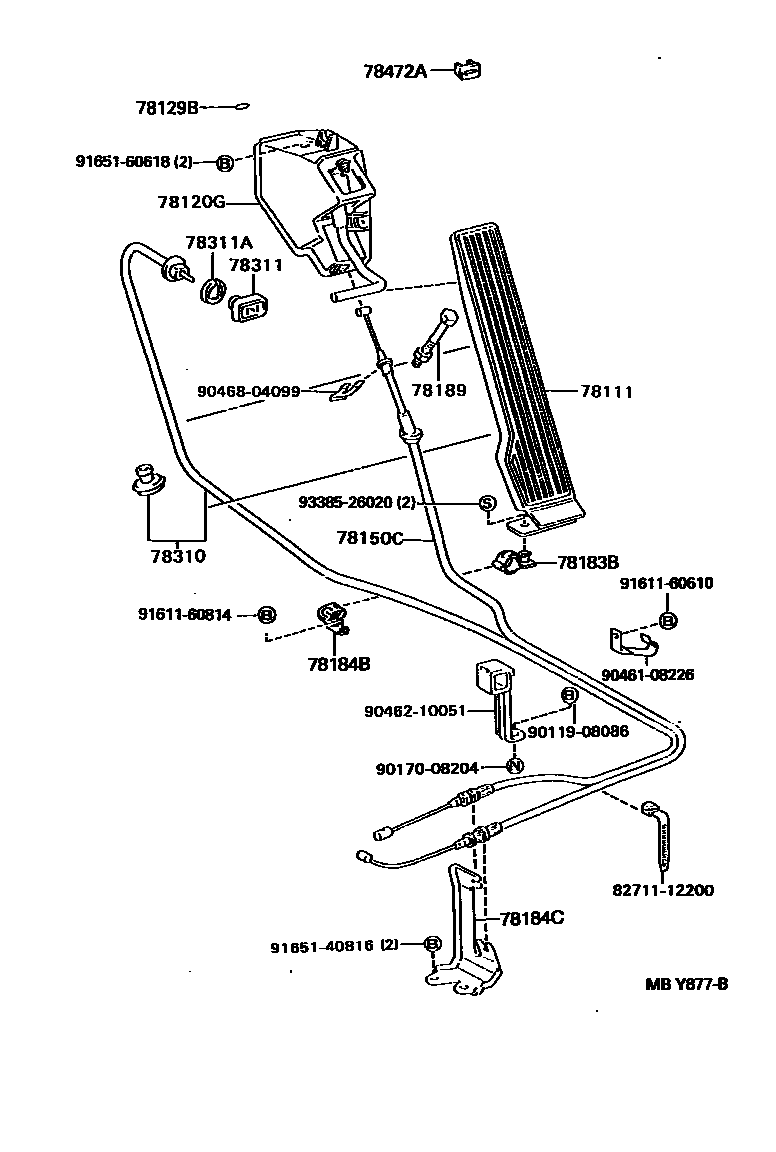

Toyota DYNA200 — ACCELERATOR LINK
78111PEDAL, ACCELERATOR
78120GROD ASSY, ACCELERATOR PEDAL
CHILE SPEC
78129BSEAL, ACCELERATOR PEDAL ARM
78150CWIRE ASSY, ACCELERATOR FLEXIBLE
CHILE SPEC
78183BCLAMP, ACCELERATOR CONTROL CABLE
78184BBRACKET, ACCELERATOR CONTROL CABLE
78184CBRACKET, ACCELERATOR CONTROL CABLE
78189BOLT, ACCELERATOR PEDAL STOPPER
78310CABLE ASSY, CHOKE
78311KNOB, CHOKE CONTROL CABLE
78311ANUT, CHOKE SHAFT SET
78472ASUPPORT, THROTTLE CONTROL CABLE
BLUISH GRAY,TRIM1#
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9011908086
main90119-08086
9017008204
main90170-08204
9046108226
main90461-08226
9046210051
main90462-10051
9046804099
main90468-04099
9161160610
main91611-60610
9161160814
main91611-60814
9165140816
main91651-40816
9165160618
main91651-60618
9338526020
main93385-26020
23 parts on this diagram · 14 diagrams in section
ACCELERATOR LINK for Toyota DYNA200
This section contains 71 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota DYNA200. Key components include: ROD SUB-ASSY, ACCELERATOR CONNECTING, LINK ASSY, ACCELERATOR, LINK ASSY, ACCELERATOR, NO.2, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, PEDAL, ACCELERATOR.
