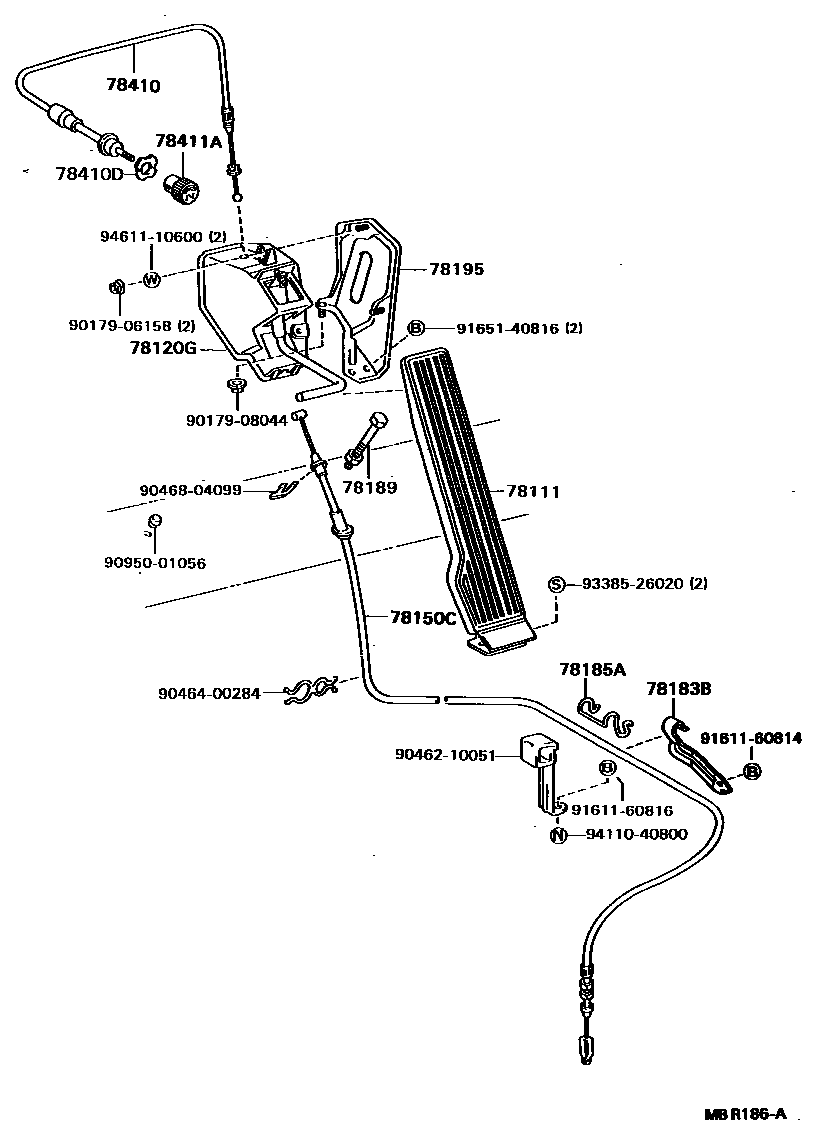

Toyota DYNA200 — ACCELERATOR LINK
78120GROD ASSY, ACCELERATOR PEDAL
78150CWIRE ASSY, ACCELERATOR FLEXIBLE
78183BCLAMP, ACCELERATOR CONTROL CABLE
78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2
78189BOLT, ACCELERATOR PEDAL STOPPER
78195BRACKET, ACCELERATOR LINK
78410CABLE ASSY, THROTTLE CONTROL
DENMARK SPEC
78410DNUT, THROTTLE
78411AKNOB, THROTTLE CONTROL CABLE
DENMARK SPEC
9017906158
main90179-06158
9017908044
main90179-08044
9046210051
main90462-10051
9046400284
main90464-00284
9046804099
main90468-04099
9095001056
main90950-01056
9161160814
main91611-60814
9161160816
main91611-60816
9165140816
main91651-40816
9338526020
main93385-26020
9411040800
main94110-40800
9461110600
main94611-10600
22 parts on this diagram · 2 diagrams in section
ACCELERATOR LINK for Toyota DYNA200
This section contains 28 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota DYNA200. Key components include: PEDAL, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL, WIRE ASSY, ACCELERATOR FLEXIBLE, CLAMP, ACCELERATOR CONTROL CABLE, BRACKET, ACCELERATOR CONTROL CABLE.
