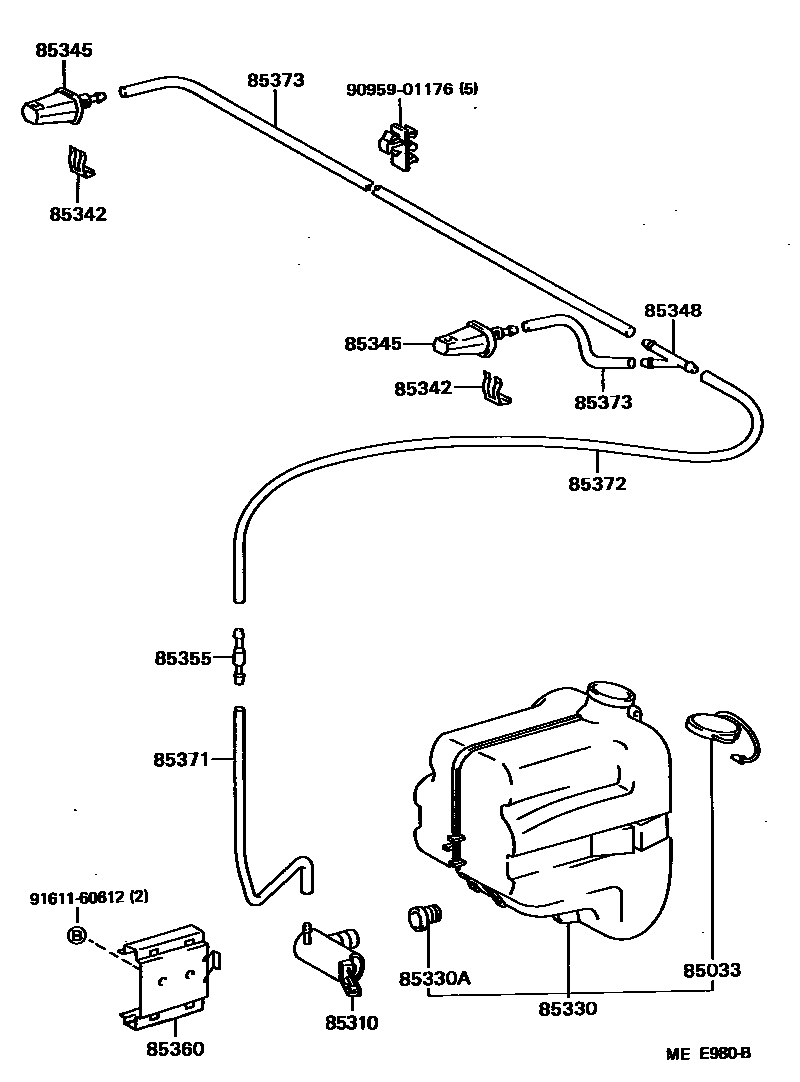

Toyota DYNA150 — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120iLY60,YY5#,6#198508-198708

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iLY60,YY5#,6#198508-198708

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040iLY60,YY5#,6#198508-198708

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iLY60,YY5#,6#198508-198708

85342HOLDER, WASHER NOZZLE

main85342-95J01iLY60,YY5#,6#198508-198708

85345NOZZLE, WINDSHIELD WASHER

main85035-95708iLY60,YY5#,6#..ARL,GEN198508-198708

main85035-95A08iLY60,YY61..EUR198508-198708

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iLY60,YY5#,6#198508-198708

85355VALVE, WINDSHIELD WASHER HOSE

main85349-89122iLY60,YY52,6#198703-198708

main85355-87201iLY60,YY5#,6#198508-198703

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-95400iLY60,YY5#,6#198508-198708

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iLY60,YY5#,6#198508-198708

L=1450(*H,L=200)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iLY60,YY5#,6#198508-198708

L=1000(*H,L=580)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iLY60,YY5#,6#198508-198708

L=1000(*H,L=680)

main90446-06013iLY60,YY5#,6#198508-198708

L=1000(*H,L=100)

9095901176

main90959-01176

9161160612

main91611-60612

14 parts on this diagram · 1 diagram in section
