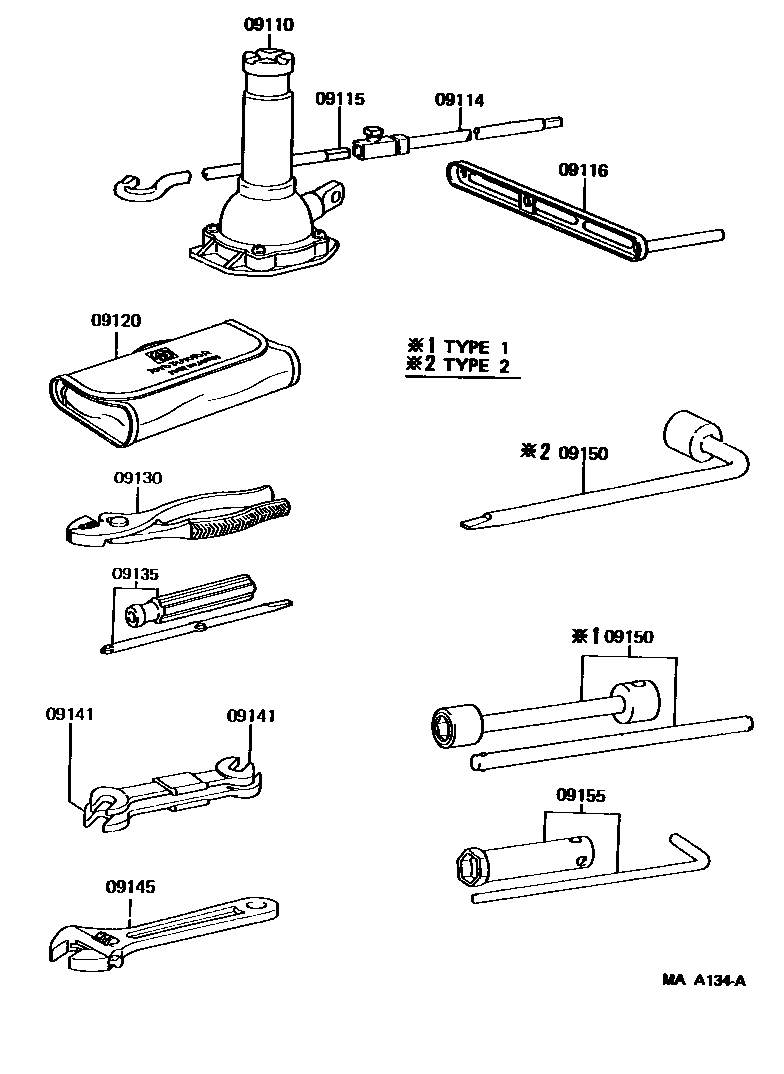

Toyota DYNA150 — STANDARD TOOL

09110JACK ASSY

main09110-25070i198708-199505

main09111-25070i198708-199505

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-25020i198708-199505

09115ROD SUB-ASSY, JACK HANDLE

main09115-28020i198708-199505

09116LEVER, JACK HANDLE

main09116-35041i198708-199505

09120BAG, TOOL

main09120-36060i198708-199505

09130PLIERS

main99913-11500i198708-199505

09135DRIVER, SCREW

main99915-10700i198708-199505

09141SPANNER

main99914-10810i198708-199505

8 X 10

main99914-11214i198708-199505

12 X 14

09145WRENCH, MONKEY

main99911-11200i198708-199505

09150WRENCH, HUB NUT BOX

main09150-25010i198708-199505

REAR

main09150-26030i198801-199505

FRONT

main09150-35020i198708-198801

FRONT

09155WRENCH, SPARK PLUG

main09155-41010i198708-199505

11 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota DYNA150

This section contains 11 genuine Toyota parts for the STANDARD TOOL system of the Toyota DYNA150. Key components include: JACK ASSY, EXTENSION SUB-ASSY, JACK HANDLE, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE, BAG, TOOL.
