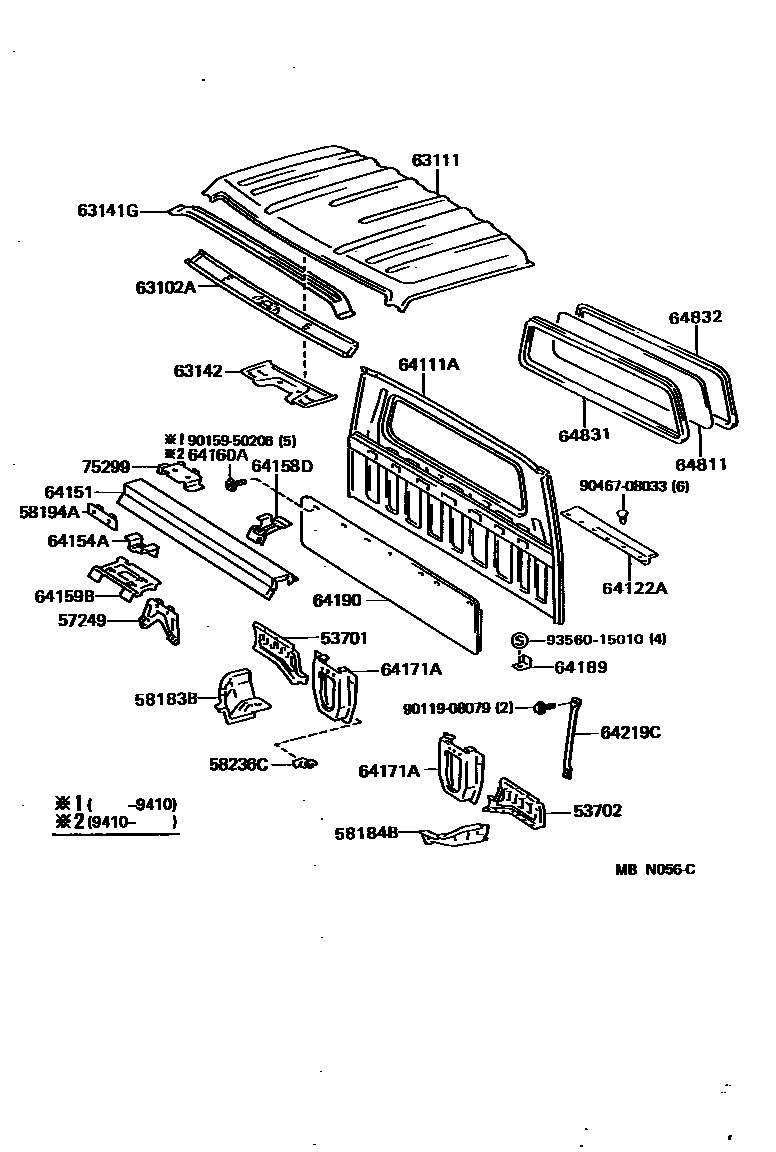

Toyota DYNA150 — ROOF PANEL & BACK PANEL

0001 1 0002 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53717-95411iLY61,YY52,61..TW199011-199505

main53717-95413iYY61..TW..WT199008-199011

main53717-95A03iLY61,YY61..T2,T3199008-199505

main53717-95A05iLY61,YY61..T2,T3198808-199008

53702APRON SUB-ASSY, FRONT FENDER, LH

main53718-95412iLY61,YY52,61..TW199011-199505

main53718-95414×2iYY61..TW..WT198910-199008

main53718-95A02iLY60,YY61..T2,T3198708-198808

main53718-95A03iLY61,YY61..T2,T3198808-199008

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-95A00iYY52,61198912-199505

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-95405iLY61,YY52,61199008-199505

main58183-95406iLY61,YY52;YY61..T2,T3;YY61..TW..ST198808-199008

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-95404iLY61,YY52;YY61..T2,T3;YY61..TW..ST199008-199011

main58184-95405iYY61..TW..WT199008-199011

58194ARETAINER, ENGINE COVER HINGE

main58194-95400iYY52,61198912-199505

58236CBRACKET, CLUTCH TUBE

main58236-95A00iLY6#,YY61..T2,T3198708-199505

sub58236-25010

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63132-95418iLY6#,YY52,61198708-199505

sub63132-37010

main63132-95420iLY61..T2,T3;LY60,YY52,61;LY61..TW..ST198708-199505

W(ROOF VENTILATOR)

sub63132-37010

63111PANEL, ROOF

main63111-37010iLY61,YY61..T2,T3199004-199505

main63111-37020iLY61,YY61..T2,T3199004-199505

W(ROOF VENTILATOR)

main63111-95409iLY6#,YY61..T2,T3198708-199004

main63111-95410iLY6#,YY61..T2,T3198708-199004

W(ROOF VENTILATOR)

main63111-95416iLY61..TW..ST;LY60,YY52,61..TW198708-199505

W(ROOF VENTILATOR)

main63111-95417iLY6#,YY52,61..TW198708-199505

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37010iLY61,YY61..T2,T3199004-199505

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iLY6#,YY61..T2,T3198708-199505

64111APANEL, BACK

main64100-25010iLY61,YY61..RHD..(T2,T3)..GEN199107-199505

W(HEADREST)

sub64100-25011

main64100-25020iLY61,YY61..RHD..(T2,T3)..GEN199107-199505

sub64100-25021

main64100-25040iLY61..ARL..IV199107-199505

W(HEADREST)

sub64100-25041

main64100-25060iLY61..ARL..IV199107-199505

sub64100-25061

main64100-95036iLY6#,YY61..LHD..T3198708-199505

sub64100-25140

main64100-95037iLY61..RHD..GEN;LY60,YY61..RHD..(T2,T3)198708-199107

sub64100-25150

main64100-95038iLY6#,YY61..LHD..T3198708-199505

W(HEADREST)

sub64100-25160

main64100-95040iLY61..RHD..GEN;LY60,YY61..RHD..(T2,T3)198708-199107

W(HEADREST)

sub64100-25180

main64100-95041iLY61..ARL..IV198808-199107

W(HEADREST)

sub64100-25190

main64100-95043iLY61..ARL..IV198808-199107

sub64100-25210

main64100-95450iLY6#,YY52,61..TW198708-199505

sub64111-95412

sub63218-95402

sub64116-95A01

sub64117-95400

sub64119-95A01

64122ABAFFLE, DUST REAR BODY

main64122-25010iLY61,YY61..T2199210-199505

sub64122-25011

main64122-25030iLY61,YY61..T3199210-199310

main64122-37060iLY61,YY52,61..TW199210-199505

sub64122-37061

main64122-95019iLY6#,YY61..T2198708-199210

main64122-95A03iLY6#,YY61..T3198708-199210

main64122-95A06iLY6#,YY52,61..TW198708-199210

64151FRAME, BACK

main64151-25020iLY61,YY61..RHD..(T2,T3)199107-199309

sub90333-25001

main64151-25021iLY61,YY61..RHD..(T2,T3)199309-199505

main64151-25030iLY61,YY61..LHD..T3199107-199505

main64151-37010iLY61,YY61..RHD..TW199107-199309

sub90333-25001

main64151-37011iLY61,YY61..TW..WT199309-199505

main64151-37050iLY61,YY52,61..TW..ST..GEN199107-199505

main64151-95028iLY61,YY61..RHD..(T2,T3)198912-199107

main64151-95029iLY61,YY61..LHD..T3198912-199107

main64151-95408iLY61,YY52,61..TW..ST..GEN198912-199107

main64151-95409iLY61,YY61..RHD..TW198912-199107

64154ARETAINER, BACK FRAME SHIFT CONTROL LINK

main64154-95A00iLY61,YY61..T2,T3198912-199505

64158DBRACKET, BACK FRAME SHIFT CONTROL LINK, NO.1

main64158-95A00iLY61,YY61..LHD..T3198912-199505

main64158-95A01iLY61,YY52,61..TW..ST..GEN198912-199505

64159BBRACKET, BACK FRAME SHIFT CONTROL LINK

main64159-95A00iLY61,YY61..T2,T3198912-199505

main64159-95A01iLY61,YY52,61..TW198912-199505

64160ACLIP(FOR BACK PANEL UPPER SILENCER)

main90467-06171-C0×5iLY61..T2,T3199410-199505

BLACK,TRIM1#

64171ABRACKET SUB-ASSY, REAR MOUNTING

main64025-25010×2iLY61,YY61..T2,T3199107-199505

sub64025-25011

main64025-25020×2iLY61,YY52,61..TW199107-199505

main64171-95408×2iLY6#,YY61..T2,T3198708-199107

main64171-95410×2iLY6#,YY52,61..TW198708-199107

64189CLAMP, BACK PANEL SILENCER

main64189-95400×4iLY6#..T2,T3198708-199505

64190SILENCER ASSY, BACK PANEL

main64190-95015iLY6#..RHD..(T2,T3)198708-199505

main64190-95016iLY6#..LHD..T3198708-199505

64219CSTAY, BACK PANEL

main64219-25010×2iLY61..RHD..(T2,T3)199107-199505

64811GLASS, BACK WINDOW

main64811-37020iLY61,YY61..(T2,T3)..GEN199109-199309

*TEM,T=3.5,BRONZE

main64811-95409iLY61..TW..WT;LY6#,YY61..T2,T3198708-199505

*TEM,T=3.5

main64811-95410iLY61..TW..ST;LY60,YY52,61..TW198708-199505

*TEM,T=3.5

sub64811-37080

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95406iLY6#,YY52,61198708-199505

sub64831-37050

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iLY61..TW..WT;LY6#,YY61..T2,T3198708-199505

main64832-95013iLY61..TW..ST;LY60,YY52,61..TW198708-199505

sub64832-37040

75299BASE, JACK HOLDER

main75299-95A00iLY61,YY61..T2,T3198912-199505

9011908079

main90119-08079

9015950206

main90159-50206

9046708033

main90467-08033

9356015010

main93560-15010

30 parts on this diagram · 2 diagrams in section
