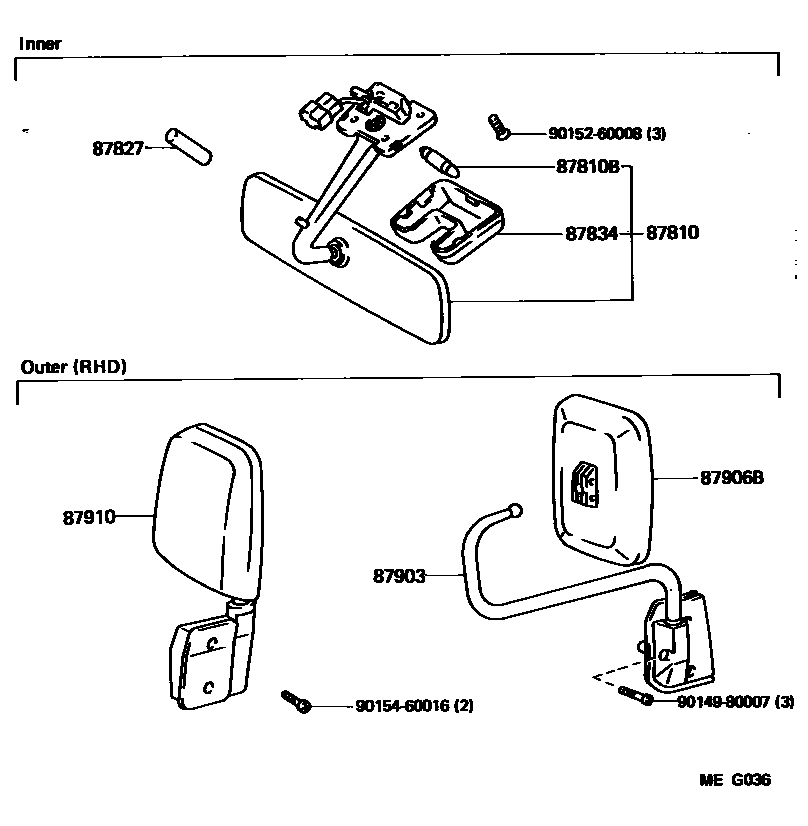

Toyota DYNA150 — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
BLACK,BLACK
87810BBULB, INNER REAR VIEW MIRROR LAMP
12V 10W
87827ABSORBER, INNER REAR VIEW MIRROR
L=38.5
L=43.5
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87903SUPPORT, REAR VIEW OUTSIDE MIRROR, LH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
9014980007
main90149-80007
9015260008
main90152-60008
9015460016
main90154-60016
10 parts on this diagram · 2 diagrams in section
MIRROR for Toyota DYNA150
This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota DYNA150. Key components include: MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
