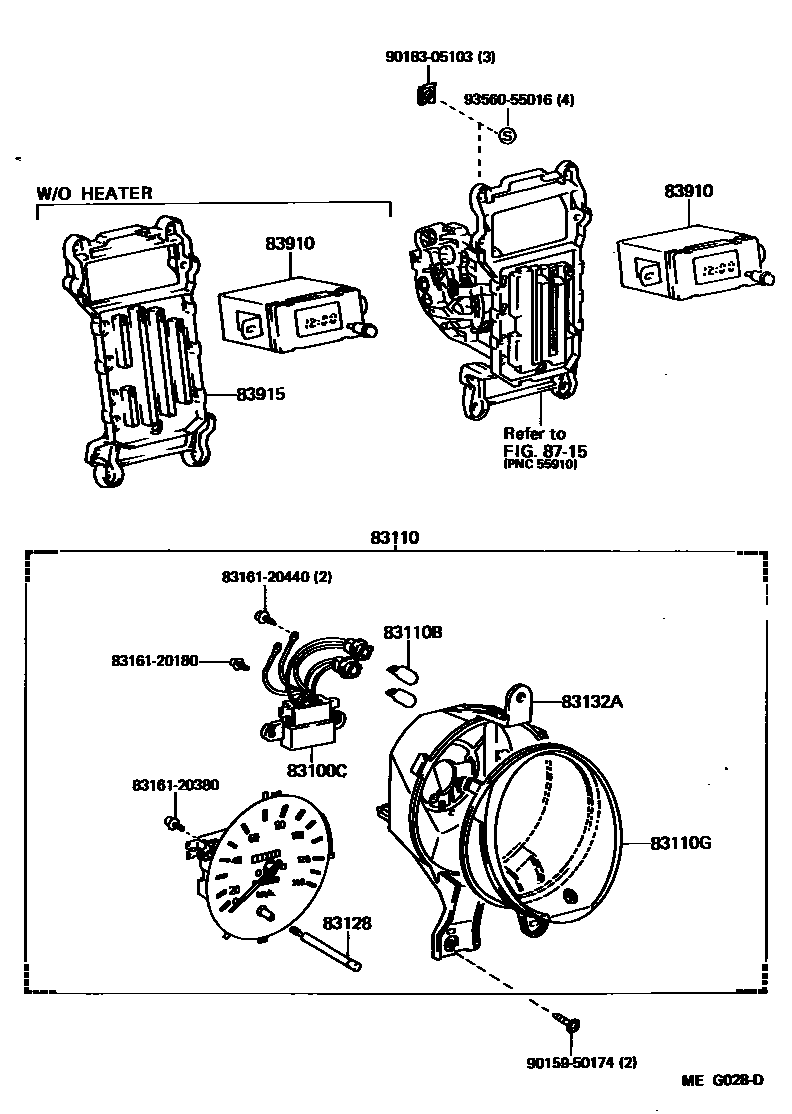

Toyota DYNA150 — METER

0001 1 0002 1 0003 1 0004 1

83100CCONNECTOR, COMBINATION METER

main83101-95409iYY5#,6#198508-198708

main83101-95410iLY60198508-198708

83110SPEEDOMETER ASSY

main83110-95441iYY5#,6#198508-198708

KM

main83110-95442iYY5#,6#..GEN198508-198708

MILE

main83110-95A22iLY60..EUR,GEN198508-198708

KM

main83110-95A24iLY60..GEN198508-198708

MILE

main83110-95A25iLY60..ARL198508-198708

KM

83110BBULB, SPEEDOMETER

main99132-12034iLY60,YY5#,6#198508-198708

83110GGLASS, SPEEDOMETER

main83134-95406iLY60,YY5#,6#198508-198708

83128KNOB, TRIP COUNTER

main83128-89300iLY60,YY5#,6#198508-198708

83132CASE, COMBINATION METER

main83132-92602iLY60,YY5#,6#198508-198708

W/TACHOMETER

main83132-95402iLY60,YY5#,6#198508-198708

83132ACASE, METER

main83132-95403iLY60,YY5#,6#198508-198708

83910CLOCK ASSY

main83910-95403iLY60,YY5#,6#198508-198708

83915BRACKET, CLOCK

main55912-95404iLY60,YY5#,6#..EUR,GEN198508-198708

W/O HEATER

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

8316120180CASE, COMBINATION METER MIRROR, NO.1

main83161-20180

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

9015950174

main90159-50174

9018305103

main90183-05103

9356055016

main93560-55016

16 parts on this diagram · 4 diagrams in section
