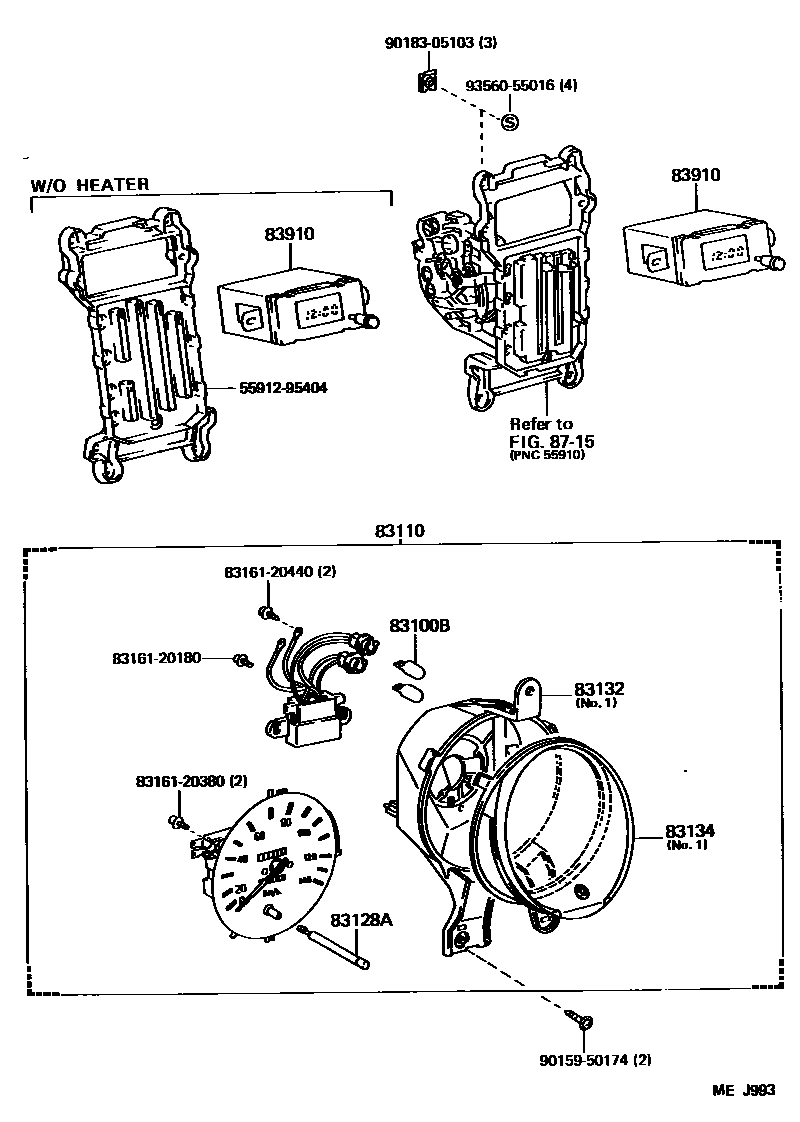

Toyota DYNA150 — METER

83100BBULB, COMBINATION METER, NO.1

main90981-11018i199208-199505

12V 1.2W W/O SOCKET,SINGAPORE SPEC

main90981-11018i198708-199505

12V 1.2W W/O SOCKET

main99132-12034i198708-199505

12V 3.4W

83110SPEEDOMETER ASSY

main83110-95032i198708-199505

main83110-95033i198708-199311

main83110-95034i198708-199505

KM & MILE

main83110-95453i198708-199311

main83110-95454i198708-199505

KM & MILE

main83110-95455i199311-199505

83128AKNOB, METER

main83128-89300i198708-199505

83132CASE, COMBINATION METER

main83132-95404i198708-199505

main83132-95B00i198708-199505

W(TACHOMETER)

main83132-95B00i198708-199109

W(POWER STEERING) OR W(TACHOMETER)

main83132-95B00i199208-199505

SINGAPORE SPEC

main83132-95B01i198708-199208

main83132-95B01i199208-199505

W(WATER TEMP.GAUGE=*ME)

83134COVER, COMBINATION METER, NO.1

main83134-95408i198708-199505

main83134-95B00i198708-199505

W(TACHOMETER)

main83134-95B00i198708-199109

W(POWER STEERING) OR W(TACHOMETER)

main83134-95B00i199208-199505

SINGAPORE SPEC

main83134-95B01i198708-199208

main83134-95B01i199208-199505

W(WATER TEMP.GAUGE=*ME)

83910CLOCK ASSY

main83910-37030i199309-199505

main83910-95403i198708-199309

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

5591295404NOZZLE, DEFROSTER, NO.2

main55912-95404

8316120180CASE, COMBINATION METER MIRROR, NO.1

main83161-20180

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

9015950174

main90159-50174

9018305103

main90183-05103

9356055016

main93560-55016

14 parts on this diagram · 3 diagrams in section

METER for Toyota DYNA150

This section contains 44 genuine Toyota parts for the METER system of the Toyota DYNA150. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, SPEEDOMETER ASSY, BRACKET, SPEEDOMETER.
