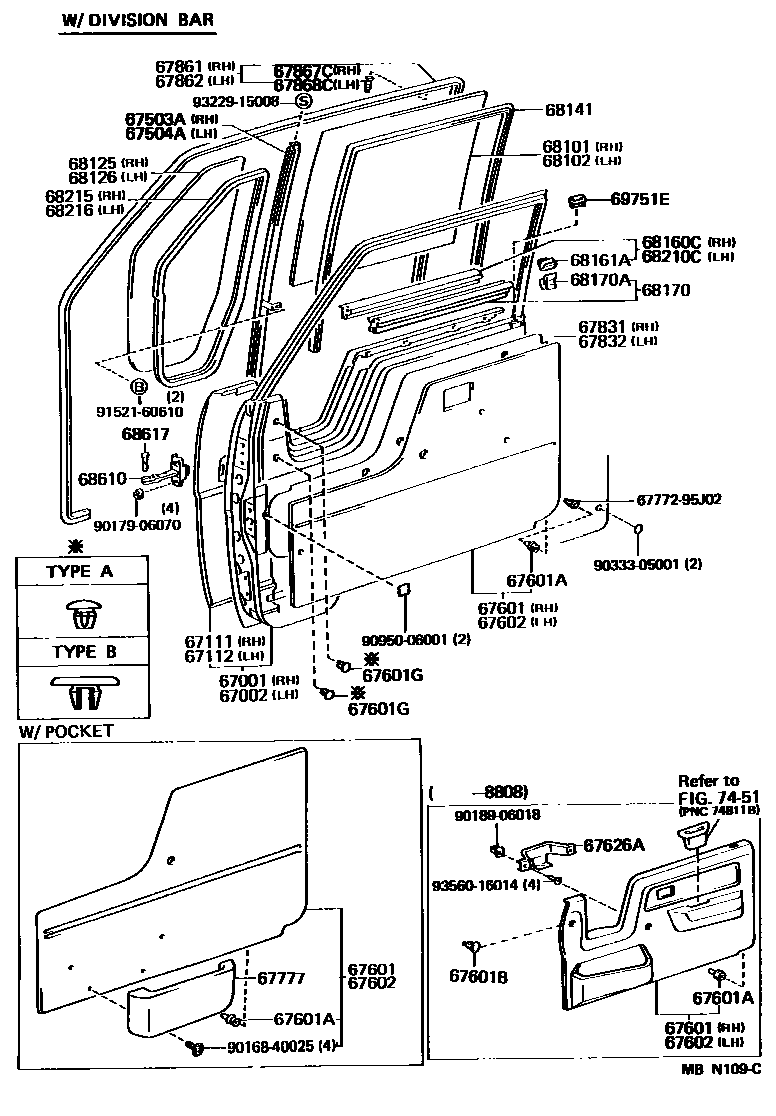

Toyota DYNA150 — FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-37010i199305-199505

W(DIVISION BAR)

main67001-37020i199305-199505

W(DIVISION BAR)

main67001-37030i199305-199505

main67001-37040i199305-199505

main67001-95021i198708-198801

main67001-95024i198808-199305

main67001-95429i198708-198801

main67001-95430i198808-199305

main67001-95432i198801-198808

main67001-95A18i198708-198801

IRELAND SPEC

main67001-95A19i198808-199305

W(DIVISION BAR)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-37010i199305-199505

W(DIVISION BAR)

main67002-37020i199305-199505

W(DIVISION BAR)

main67002-37040i199305-199505

main67002-37050i199305-199505

main67002-95022i198708-198801

main67002-95024i198808-199305

main67002-95433i198711-198801

PORTUGAL SPEC

main67002-95435i198708-198710

IRELAND SPEC

main67002-95436i198808-199305

main67002-95438i198801-198808

PORTUGAL SPEC

main67002-95A27i198808-199305

W(DIVISION BAR)

67111PANEL, FRONT DOOR, OUTER RH

main67111-37010i199305-199505

W(DIVISION BAR)

main67111-37020i199305-199505

W(DIVISION BAR)

main67111-37030i199305-199505

main67111-95406i198708-198801

main67111-95407i198801-198808

main67111-95408i198808-199305

main67111-95A10i198808-199305

W(DIVISION BAR)

67112PANEL, FRONT DOOR, OUTER LH

main67112-37010i199305-199505

W(DIVISION BAR)

main67112-37020i199305-199505

W(DIVISION BAR)

main67112-37040i199305-199505

main67112-95405i198711-198801

PORTUGAL SPEC

main67112-95406i198801-198808

PORTUGAL SPEC

main67112-95408i198808-199305

main67112-95A11i198808-199305

W(DIVISION BAR)

67503ABAR SUB-ASSY, FRONT DOOR DIVISION, RH

main67503-95400i198708-198808

67504ABAR SUB-ASSY, FRONT DOOR DIVISION, LH

main67504-95400i198708-198808

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95019-06i198808-199109

W(DIVISION BAR),BROWN,TRIM4#

main67610-95019-B0i199109-199505

W(DIVISION BAR),GRAY,TRIM1#

main67610-95022-06i198708-198808

W(DOOR POCKET),BROWN,TRIM4#

main67610-95413-06i198708-198808

BROWN,TRIM4#

main67610-95416-06i198808-199109

BROWN,TRIM4#

main67610-95416-B0i199109-199505

GRAY,TRIM1#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12020×26i198808-199505

W(DIVISION BAR)

main67771-30060×22i198708-198808

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-06017-B0×4i199303-199505

GRAY,TRIM1#

main90467-06046-03×4i199109-199303

GRAY,TRIM1#

main90467-06046-06×4i198808-199109

BROWN,TRIM4#

main90467-07043-16×2i198708-198808

BROWN,TRIM4#

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01324-06×2i198708-199109

BROWN,TRIM4#,TYPE A

main90950-01324-B0×2i199109-199505

GRAY,TRIM1#,TYPE A

main90950-01607-06×2i198708-199109

BROWN,TRIM4#,TYPE B

main90950-01607-B0×2i199109-199505

GRAY,TRIM1#,TYPE B

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95022-06i198708-198808

BROWN,TRIM4#

main67620-95022-B0i199109-199505

W(DIVISION BAR),GRAY,TRIM1#

main67620-95026-06i198708-198808

W(DOOR POCKET),BROWN,TRIM4#

main67620-95420-06i198708-198808

BROWN,TRIM4#

main67620-95422-06i198808-199109

BROWN,TRIM4#

main67620-95422-B0i199109-199505

GRAY,TRIM1#

67626ABRACKET, DOOR TRIM, NO.2

main67626-95400×2i198708-198808

67777POCKET, FRONT DOOR TRIM, RH

main67777-22040-01i198708-198808

BLACK,TRIM4#

main67778-22030-01i198708-198808

BLACK,TRIM4#

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95406i198708-198808

main67831-95408i198808-199505

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95407i198708-198808

main67832-95409i198808-199505

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-37010i199406-199505

main67861-95406×2i198807-199406

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-37010i199406-199505

main67862-95406×2i198808-199406

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-95403×28i198808-199505

main67868-89101×28i198708-198808

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-89103×28i198708-198808

main67868-95402×28i198808-199505

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-37020i199109-199309

*TEM,T=4.0,BRONZE

main68111-95406i198708-198808

*TEM,T=4.0

main68111-95407i198808-199505

*TEM,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-37020i199109-199309

*TEM,T=4.0,BRONZE

main68112-95406i198708-198808

*TEM,T=4.0

main68112-95407i198808-199505

*TEM,T=4.0

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-95400i198708-199505

*TEM,T=3.5

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-95400i198708-199505

*TEM,T=3.5

68141RUN, FRONT DOOR GLASS

main68141-95407×2i198708-198808

main68141-95408×2i198808-199505

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-95402i198708-198808

main68161-95403i198808-199505

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-12080×10i198808-199505

1ST,3RD,4TH,5TH

main68211-30080×8i198708-198808

main68211-95402i198808-199505

RH,2ND

main68212-95400i198808-199505

LH,2ND

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95406i198708-198711

main68171-95407i198708-198808

main68171-95408i198711-198801

main68171-95409i198808-199505

main68171-95410i198808-199505

W(DIVISION BAR),RH

main68172-95402i198708-198711

main68172-95404i198708-198808

main68172-95405i198711-198801

main68172-95406i198808-199505

main68172-95407i198801-198808

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-12080×6i198708-198808

WHITE

main68211-95400×2i198708-198808

YELLOWISH GREEN

main68211-95401i198808-199505

YELLOW

main68211-95402×2i198808-199505

LH,BROWN

main68212-95400×2i198808-199505

RH,YELLOWISH GREEN

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68160-95402i198708-198808

main68162-95402i198808-199505

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-95402i198708-199505

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-95402i198708-199505

68610CHECK ASSY, FRONT DOOR

main68610-95400×2i198708-198808

main68610-95401×2i198808-199505

68617PIN, FRONT DOOR CHECK

main68617-20011×2i198911-199505

main68617-90A00×2i198708-198911

69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69751-20031-01×2i198708-198801

BLACK,TRIM4#

main69751-95400-01×2i198801-199109

BLACK,TRIM4#

7451ARMREST & VISOR

→ Go to FIG 74-51

6777295J02WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J02

9016840025

main90168-40025

9017906070

main90179-06070

9018906018

main90189-06018

9033305001

main90333-05001

9095006001

main90950-06001

9152160610

main91521-60610

9322915008

main93229-15008

9356016014

main93560-16014

44 parts on this diagram · 2 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota DYNA150

This section contains 54 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota DYNA150. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH, FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH.
