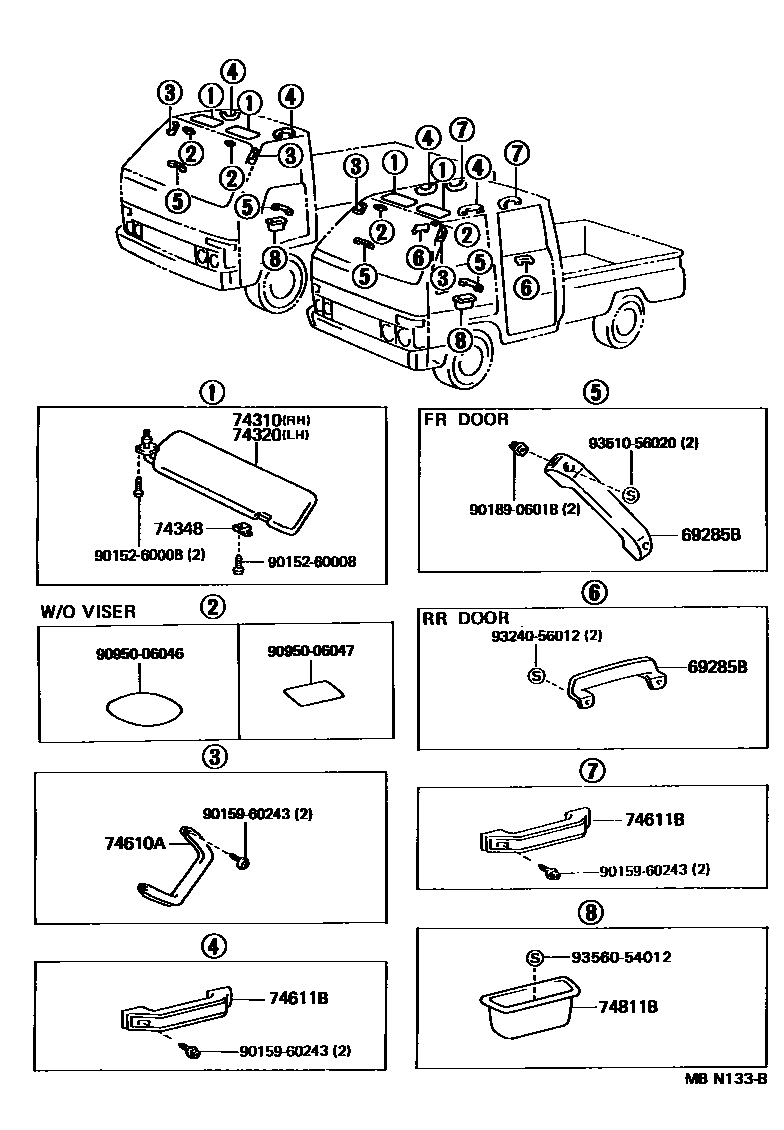

Toyota DYNA150 — ARMREST & VISOR
69285BHANDLE, PULL
BLACK,TRIM4#
GRAY,TRIM1#
74310VISOR ASSY, RH
W(ROOF VENTILATOR & SUNVISOR),GRAY,TRIM1#; W(ROOF VENTILATOR),GRAY,TRIM1#
W(ROOF VENTILATOR & SUNVISOR),BROWN,TRIM4#; W(ROOF VENTILATOR),BROWN,TRIM4#
GRAY,TRIM1#
BROWN,TRIM4#
W(ROOF VENTILATOR),GRAY,TRIM1#
W(ROOF VENTILATOR),BROWN,TRIM4#
GRAY,TRIM1#; W(SUNVISOR),GRAY,TRIM1#
BROWN,TRIM4#; W(SUNVISOR),BROWN,TRIM4#
74320VISOR ASSY, LH
W(ROOF VENTILATOR & SUNVISOR),GRAY,TRIM1#; W(ROOF VENTILATOR),GRAY,TRIM1#
W(ROOF VENTILATOR & SUNVISOR),BROWN,TRIM4#; W(ROOF VENTILATOR),BROWN,TRIM4#
GRAY,TRIM1#
BROWN,TRIM4#
W(ROOF VENTILATOR),GRAY,TRIM1#
W(ROOF VENTILATOR),BROWN,TRIM4#
main74320-95425-03iYY52,61..LHD;LY61..TW..GEN;LY61..LHD..T3; YY61..RHD;LY61..RHD..(T2,T3)..GEN199109-199505
GRAY,TRIM1#; W(SUNVISOR),GRAY,TRIM1#
BROWN,TRIM4#; W(SUNVISOR),BROWN,TRIM4#
74348HOLDER, VISOR
main74348-12010-23iLY61..ARL;LY61..TW..WT; YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN199109-199505
GRAY,TRIM1#
BEIGE,TRIM4#
74610AGRIP SUB-ASSY, ASSIST
BROWN,TRIM4#
GRAY,TRIM1#
74611BGRIP, ASSIST
BROWN,TRIM4#
GRAY,TRIM1#
74811BHANDLE, DOOR PULL
BROWN,TRIM4#
GRAY,TRIM1#
9015260008
main90152-60008
9015960243
main90159-60243
9018906018
main90189-06018
9095006046
main90950-06046
9095006047
main90950-06047
9324056012
main93240-56012
9351056020
main93510-56020
9356054012
main93560-54012
15 parts on this diagram · 1 diagram in section
ARMREST & VISOR for Toyota DYNA150
This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota DYNA150. Key components include: HANDLE, PULL, VISOR ASSY, RH, VISOR ASSY, LH, HOLDER, VISOR, GRIP SUB-ASSY, ASSIST.
