Toyota DYNA150 — ARMREST & VISOR

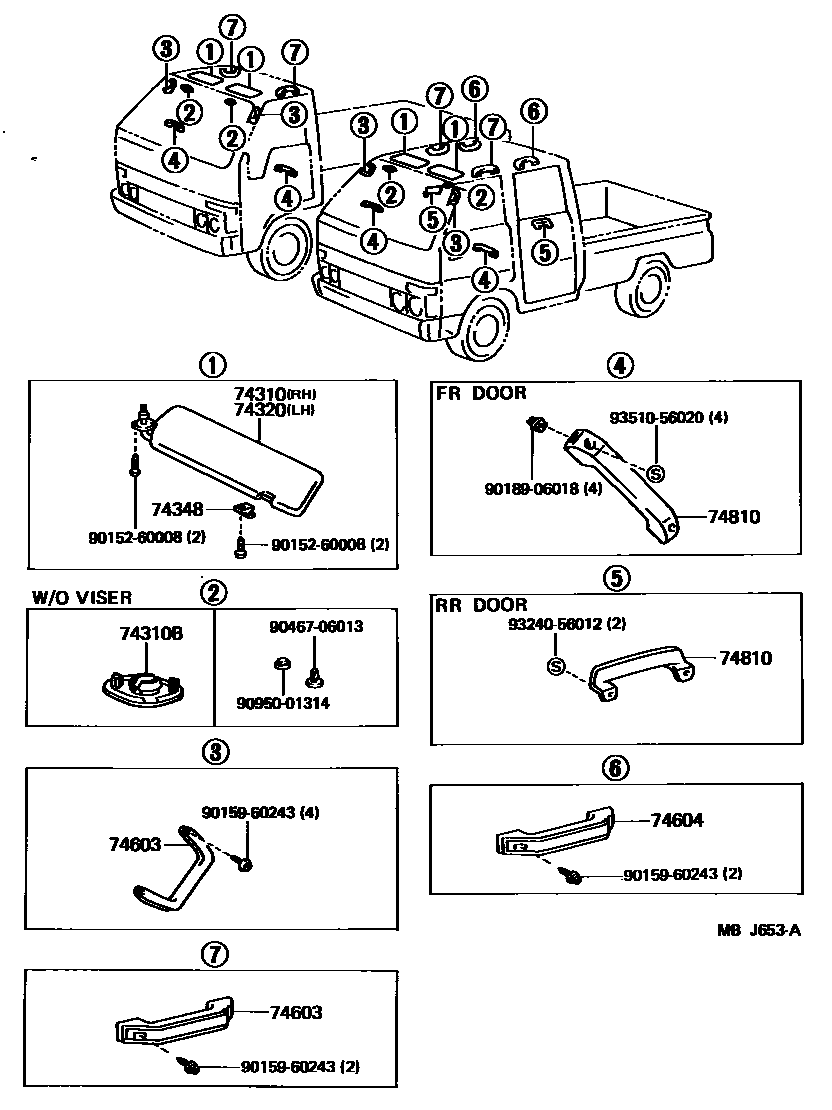

Parts diagram

74310VISOR ASSY, RH

main74310-95427-03198508-198608

main74310-95430-03198508-198708

main74310-95436-03198508-198708

main74310-95437-03198508-198708

main74310-95439-03198608-198708

74310BPLUG, HOLE (FOR VISOR)

main74325-95400-03198508-198708

74320VISOR ASSY, LH

main74320-95416-03198508-198608

main74320-95418-03198508-198708

main74320-95422-03198508-198708

main74320-95423-03198508-198708

main74320-95425-03198608-198708

74348HOLDER, VISOR

main74348-12010-23198508-198708

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-95403-03198508-198708

main74611-92601-03198508-198708

74604GRIP SUB-ASSY, ASSIST, REAR

main74611-92601-03198508-198708

74810PULL ASSY, DOOR, INSIDE

main69285-92600-03198508-198708

main69285-95404-03198508-198708

9015260008

main90152-60008

9015960243

main90159-60243

9018906018

main90189-06018

9046706013

main90467-06013

9095001314

main90950-01314

9324056012

main93240-56012

9351056020

main93510-56020

14 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota DYNA150

This section contains 14 genuine Toyota parts for the ARMREST & VISOR system of the Toyota DYNA150. Key components include: VISOR ASSY, RH, PLUG, HOLE (FOR VISOR), VISOR ASSY, LH, HOLDER, VISOR, GRIP SUB-ASSY, ASSIST, FRONT.
