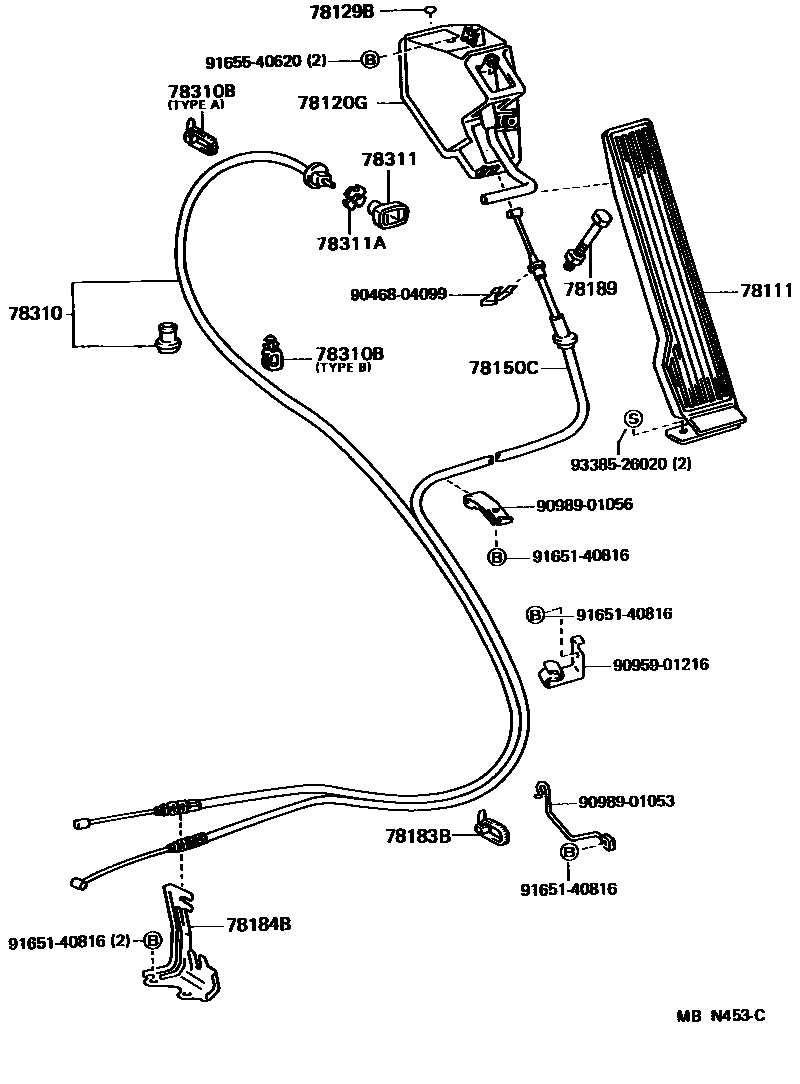

Toyota DYNA150 — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78111PEDAL, ACCELERATOR

main78110-95014iLY6#,YY52,61..LHD198708-199505

main78110-95410iLY6#,YY61..RHD198708-199505

78120GROD ASSY, ACCELERATOR PEDAL

main78202-95010iLY6#,YY61..RHD198708-199505

main78202-95011iLY6#,YY52,61..LHD198708-199505

78129BSEAL, ACCELERATOR PEDAL ARM

main78129-95J00iYY61..RHD198809-199505

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-25020iYY61..RHD199109-199208

main78150-25030iYY52,61..LHD199109-199505

sub78150-25031

main78150-25040iLY61..RHD199109-199505

main78150-25050iLY61..LHD199109-199505

sub78150-25051

main78150-25060iYY61..WT199208-199505

SINGAPORE SPEC

main78150-95055iYY61..RHD198708-199109

main78150-95056iLY60..RHD198708-198808

main78150-95058iYY52,61..LHD198708-199109

main78150-95059iLY60..LHD198708-198808

main78150-95060iLY61..RHD198808-199109

main78150-95061iLY61..LHD198808-199109

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-95011iLY61198808-199505

TYPE B

main78183-95A10iYY61..WT199208-199505

SINGAPORE SPEC

main82711-12200iYY61..ST;LY61,YY52..LHD199208-199505

TYPE A

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-25020iYY61..WT199208-199505

SINGAPORE SPEC

main78184-95010iYY52,61..ST199208-199505

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-95402iLY61,YY52,61..LHD199008-199505

main78208-95404iLY6#,YY61..RHD198708-199309

78310CABLE ASSY, CHOKE

main78304-95010iYY61..RHD..ST199208-199505

sub78304-25020

main78304-95012iYY52,61..LHD198708-199505

78310BCLAMP, CHOKE CABLE

main82711-12200iYY61..RHD198708-199208

TYPE A

main82711-95410iYY61..RHD198708-199208

TYPE B

78311KNOB, CHOKE CONTROL CABLE

main78302-95400iYY52,61..ST199208-199505

78311ANUT, CHOKE SHAFT SET

main78314-95010iYY52,61198708-199208

9046804099

main90468-04099

9095901216

main90959-01216

9098901053

main90989-01053

9098901056

main90989-01056

9165140816

main91651-40816

9165540620

main91655-40620

9338526020

main93385-26020

18 parts on this diagram · 4 diagrams in section
