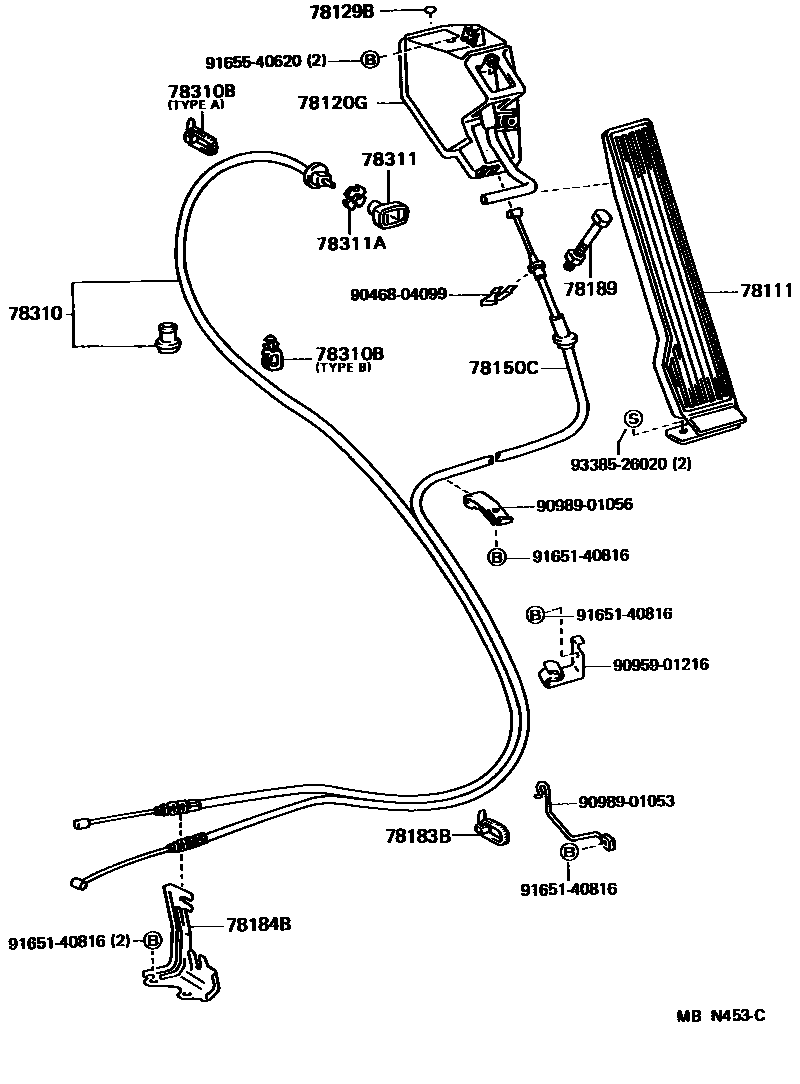

Toyota DYNA150 — ACCELERATOR LINK
78111PEDAL, ACCELERATOR
78120GROD ASSY, ACCELERATOR PEDAL
78129BSEAL, ACCELERATOR PEDAL ARM
78150CWIRE ASSY, ACCELERATOR FLEXIBLE
SINGAPORE SPEC
78183BCLAMP, ACCELERATOR CONTROL CABLE
TYPE B
SINGAPORE SPEC
TYPE A
78184BBRACKET, ACCELERATOR CONTROL CABLE
SINGAPORE SPEC
78189BOLT, ACCELERATOR PEDAL STOPPER
78310CABLE ASSY, CHOKE
78310BCLAMP, CHOKE CABLE
TYPE A
TYPE B
78311KNOB, CHOKE CONTROL CABLE
78311ANUT, CHOKE SHAFT SET
9046804099
main90468-04099
9095901216
main90959-01216
9098901053
main90989-01053
9098901056
main90989-01056
9165140816
main91651-40816
9165540620
main91655-40620
9338526020
main93385-26020
18 parts on this diagram · 4 diagrams in section
ACCELERATOR LINK for Toyota DYNA150
This section contains 41 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota DYNA150. Key components include: LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, BRACKET SUB-ASSY, ACCELERATOR WIRE CLAMP, PEDAL, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL.
