Toyota DYNA150 — ROOF PANEL & BACK PANEL

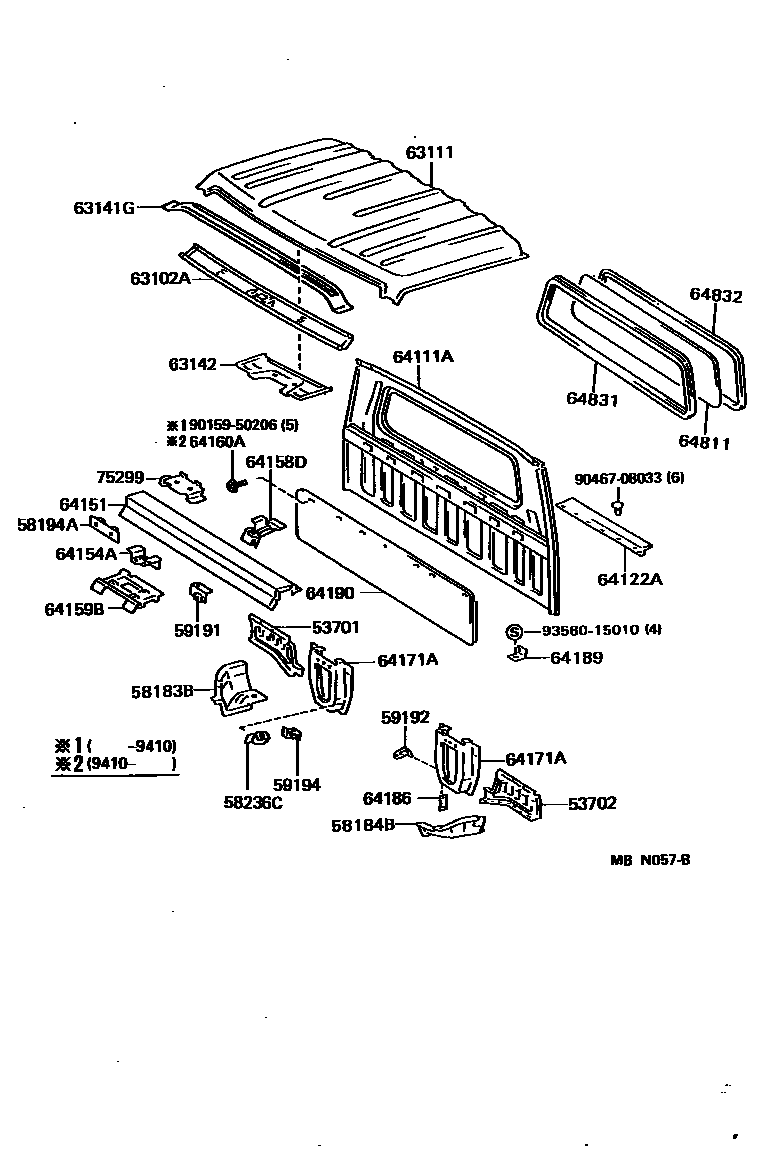

Parts diagram
53701APRON SUB-ASSY, FRONT FENDER, RH
main53717-95A03i198708-199008
main53717-95A05i198808-199008
53702APRON SUB-ASSY, FRONT FENDER, LH
main53718-95A02i198708-199008
main53718-95A03i198808-199008
58183BREINFORCEMENT, REAR MOUNTING, RH
main58183-95405i198708-199008
main58183-95406i198808-199008
58184BREINFORCEMENT, REAR MOUNTING, LH
main58184-95404i198708-199008
main58184-95405i198808-199008
58194ARETAINER, ENGINE COVER HINGE
main58194-95400×2i198912-199505
58236CBRACKET, CLUTCH TUBE
main58236-95A00i198708-199505
sub58236-25010
59191BRACKET, NOISE SHUTTER
main59191-95A00i198912-199207
59192BRACKET, NOISE SHUTTER, NO.2
main59192-95A00i198808-199207
59194BRACKET, NOISE SHUTTER SEAL
main59194-95010i198912-199207
63102APANEL SUB-ASSY, WINDSHIELD HEADER
main63132-95418i198708-199505
sub63132-37010
main63132-95420i198708-199505
W(ROOF VENTILATOR)
sub63132-37010
63111PANEL, ROOF
main63111-37010i199004-199505
main63111-37020i199004-199505
W(ROOF VENTILATOR)
main63111-95409i198708-199004
main63111-95410i198708-199004
W(ROOF VENTILATOR)
63141GREINFORCEMENT, ROOF PANEL, NO.1
main63141-37010i199004-199505
63142REINFORCEMENT, ROOF PANEL, NO.2
main63142-95400i198708-199505
64111APANEL, BACK
main64100-95036i198708-199309
sub64100-25140
main64100-95038i199309-199505
sub64100-25160
main64100-95044i198808-199305
sub64100-25220
main64100-95045i198808-199305
W(HEADREST)
sub64100-25230
64122ABAFFLE, DUST REAR BODY
main64122-25030i199210-199310
main64122-95A03i198708-199210
64151FRAME, BACK
main64151-25030i199107-199505
main64151-95029i198912-199107
64154ARETAINER, BACK FRAME SHIFT CONTROL LINK
main64154-95A00i198912-199505
64158DBRACKET, BACK FRAME SHIFT CONTROL LINK, NO.1
main64158-95A00i198912-199505
64159BBRACKET, BACK FRAME SHIFT CONTROL LINK
main64159-95A00i198912-199505
64160ACLIP(FOR BACK PANEL UPPER SILENCER)
main90467-06171-C0×5i199410-199505
BLACK,TRIM1#
64171ABRACKET SUB-ASSY, REAR MOUNTING
main64025-25010×2i199107-199505
sub64025-25011
main64171-95408×2i198708-199107
64186RETAINER, REAR MOUNTING BRACKET
main64186-95A00×2i198708-199505
64189CLAMP, BACK PANEL SILENCER
main64189-95400×4i198708-199505
64190SILENCER ASSY, BACK PANEL
main64190-95016i198708-199505
64811GLASS, BACK WINDOW
main64811-37020i199109-199207
*TEM,T=3.5,BRONZE
main64811-95409i198708-199505
*TEM,T=3.5
64831WEATHERSTRIP, BACK WINDOW GLASS
main64831-95406i198708-199505
sub64831-37050
64832KEY, BACK WINDOW WEATHERSTRIP
main64832-95010i198708-199505
sub64832-95013
75299BASE, JACK HOLDER
main75299-95A00i198912-199505
9015950206
main90159-50206
9046708033
main90467-08033
9356015010
main93560-15010

31 parts on this diagram · 1 diagram in section
