Toyota DYNA150 — PARTIAL ENGINE ASSEMBLY

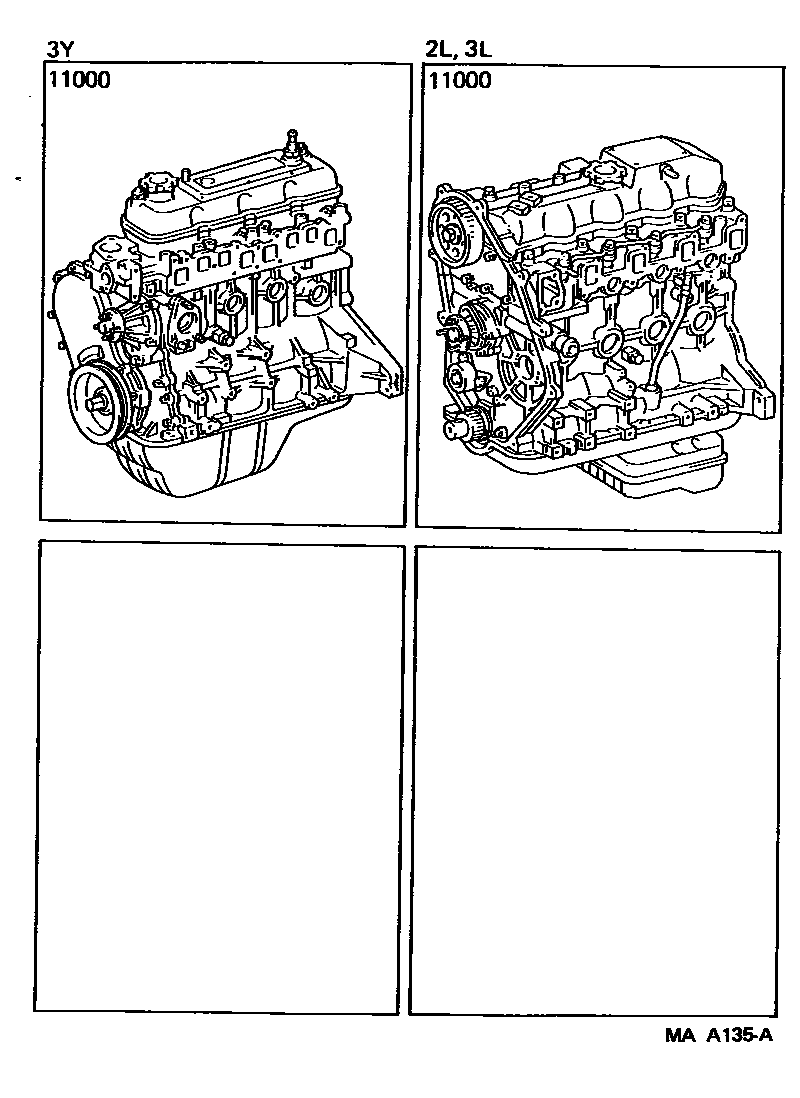

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-54510i198708-198805
sub13405-54011
sub90105-12109
main19000-54521i198805-198807
sub31349-26020
main19000-54522i198807-198808
main19000-54840i198808-198910
main19000-54870i198808-198910
main19000-5B110i198910-199505
main19000-5B120i198910-199505
main19000-73370i198708-198808
sub19000-73371

1 parts on this diagram · 1 diagram in section
