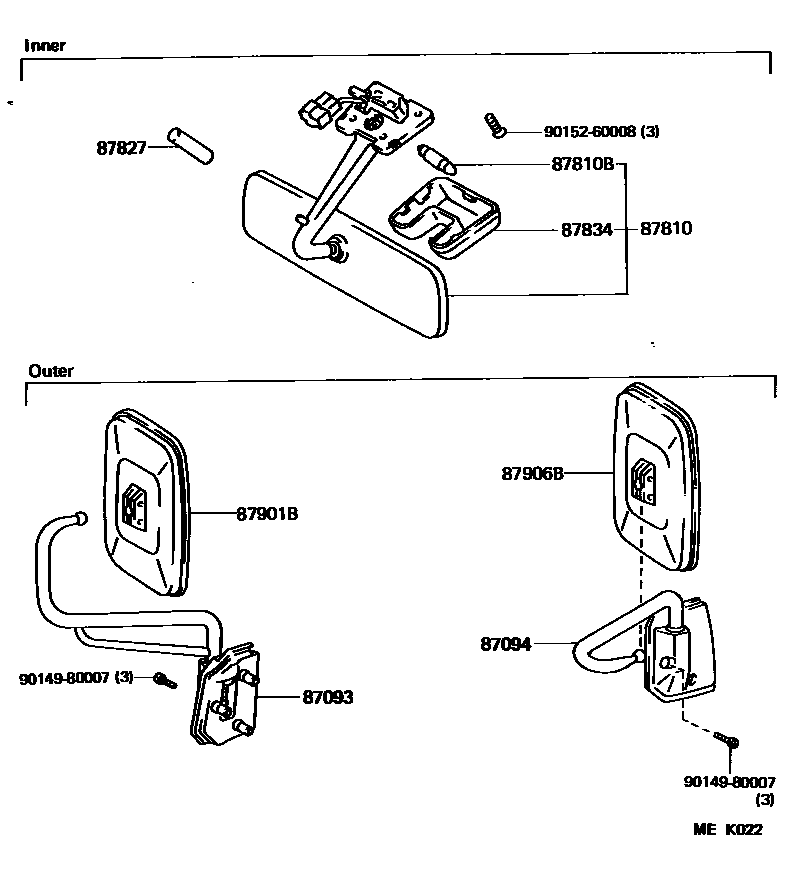

Toyota DYNA150 — MIRROR
87093STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH
87094STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH
87810MIRROR ASSY, INNER REAR VIEW
87810BBULB, INNER REAR VIEW MIRROR LAMP
12V 10W
87827ABSORBER, INNER REAR VIEW MIRROR
L=38.5
L=43.5
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
9014980007
main90149-80007
9015260008
main90152-60008
10 parts on this diagram · 1 diagram in section
MIRROR for Toyota DYNA150
This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota DYNA150. Key components include: STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH, STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH, MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, ABSORBER, INNER REAR VIEW MIRROR.
