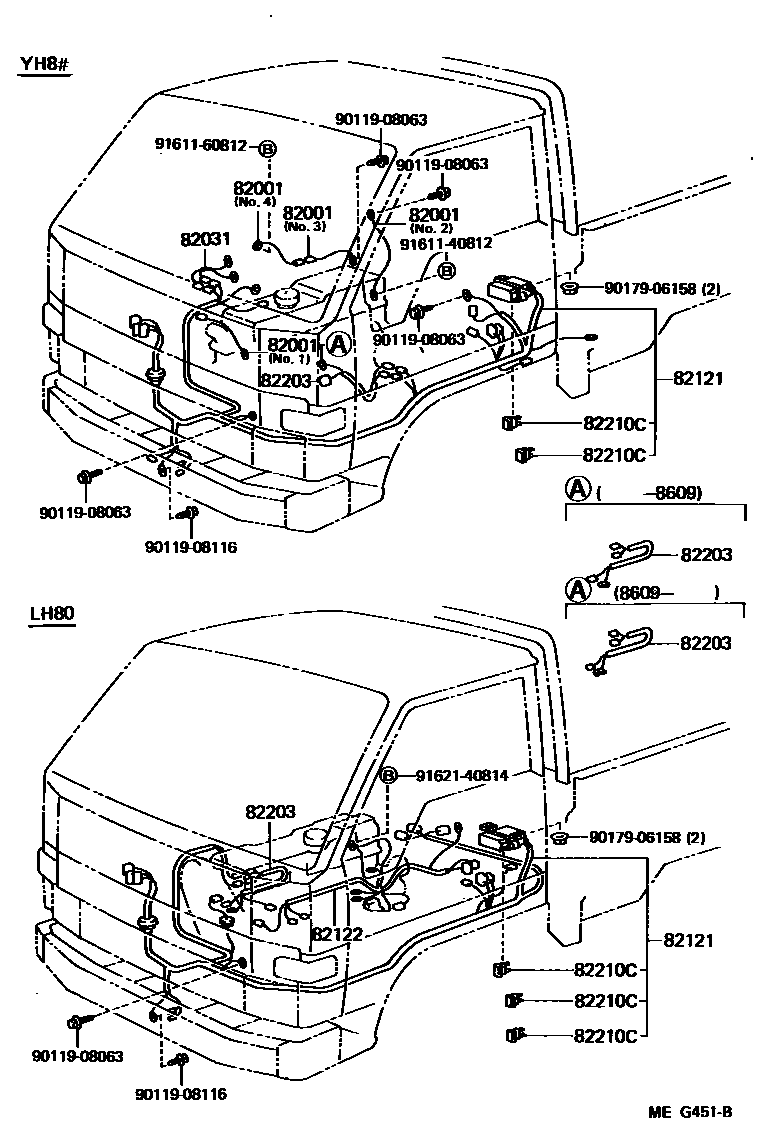

Toyota DYNA100 — WIRING & CLAMP
82001CABLE, BOND, NO.1
NO.2,L=460
NO.4,L=300
NO.3,L=170
NO.1,L=170
82031WIRE SUB-ASSY, IGNITION COIL
82121WIRE, ENGINE
sub82121-95042
sub82121-95044
W/FUEL HEATER
W/FUEL HEATER
sub82121-95A17
sub82121-95A18
sub82121-95A20
sub82121-95A21
sub82121-95A23
ALTERNATOR=12V 45A
ALTERNATOR=12V 40A
ALTERNATOR=12V 45A
ALTERNATOR=12V 40A
82122WIRE, ENGINE, NO.2
ALTERNATOR=12V 40A
W/PS
W/TACHOMETER
ALTERNATOR=12V 40A,W/*TAC,W/PS
ALTERNATOR=12V 45A
ALTERNATOR=12V 45A,W/*TAC,W/PS
ALTERNATOR=12V 40A
ALTERNATOR=12V 40A,W/*TAC,W/PS
W/TACHOMETER
W/PS
ALTERNATOR=12V 45A
82203WIRE SUB-ASSY, ALTERNATOR
W/TRUCK FREEZER
82210CFUSIBLE LINK
40A,TERM.:FEMALE,GRN,40A
60A,TERM.:MALE,YEL,60A
80A,TERM.:MALE,BLK,80A
50A,TERM.:MALE,RED,50A
9011908063
main90119-08063
9011908116
main90119-08116
9017906158
main90179-06158
9161140812
main91611-40812
9161160812
main91611-60812
9162140814
main91621-40814
12 parts on this diagram · 4 diagrams in section
