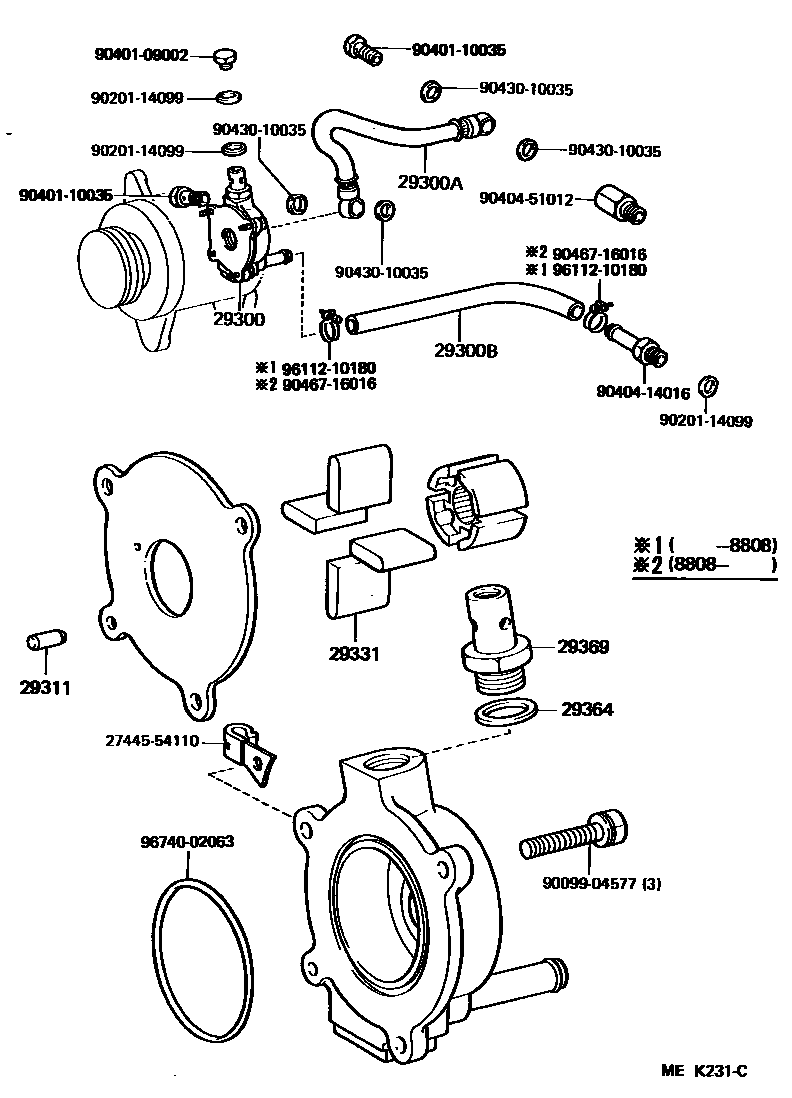

Toyota DYNA100 — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-54050i2L..LH80198708-199101

main29300-54051i2L..LH80199101-199505

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i2L..LH80198708-199505

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i2L..LH80198808-199505

main90923-02076i2L..LH80198708-198808

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2L..LH80198708-199505

29331BLADE, VACUUM PUMP, A

main29331-56070i2L..LH80198708-199505

29364WASHER, VACUUM PUMP

main29364-66010i2L..LH80198708-199505

29369VALVE SUB-ASSY, CHECK

main29369-56070i2L..LH80198708-199505

2744554110

main27445-54110

9009904577

main90099-04577

9020114099

main90201-14099

9040109002

main90401-09002

9040110035

main90401-10035

9040414016

main90404-14016

9040451012

main90404-51012

9043010035

main90430-10035

9046716016

main90467-16016

9611210180

main96112-10180

9674002063

main96740-02063

18 parts on this diagram · 1 diagram in section
