Toyota DYNA100 — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

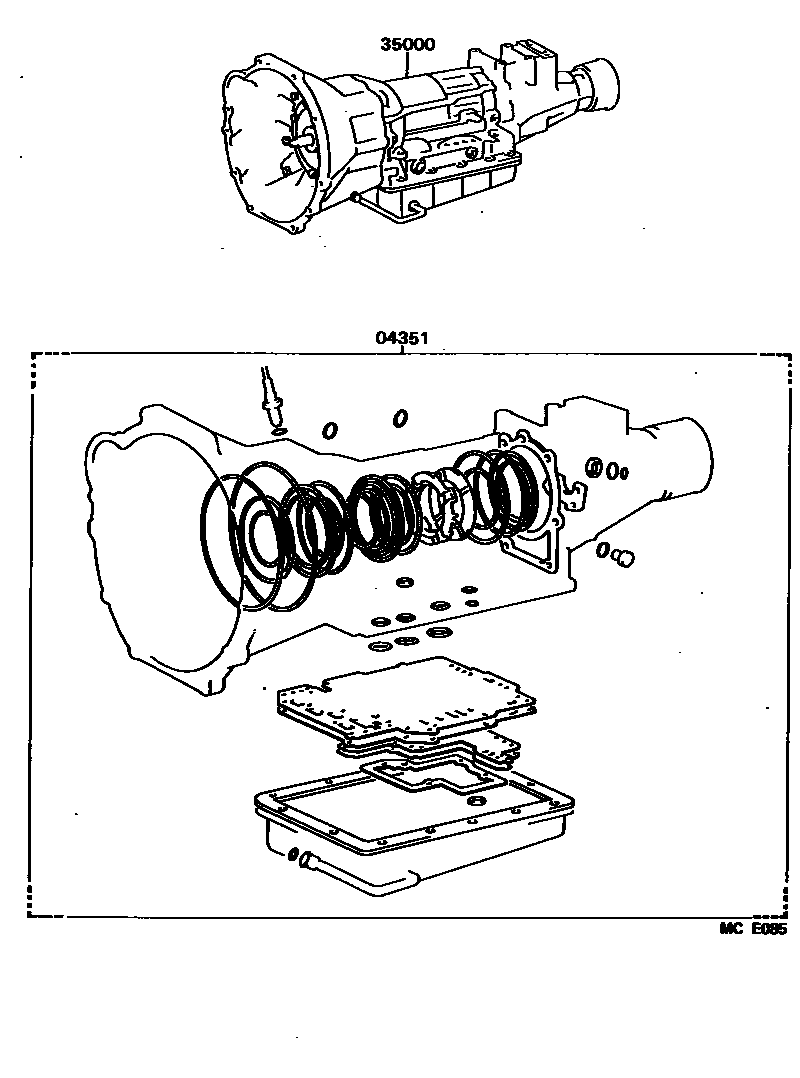

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-28020i198708-199203

35000TRANSMISSION ASSY, AUTOMATIC

main35000-26200i198808-198906

main35000-26201i198906-199203

main35000-26300i198708-198808

2 parts on this diagram · 1 diagram in section
