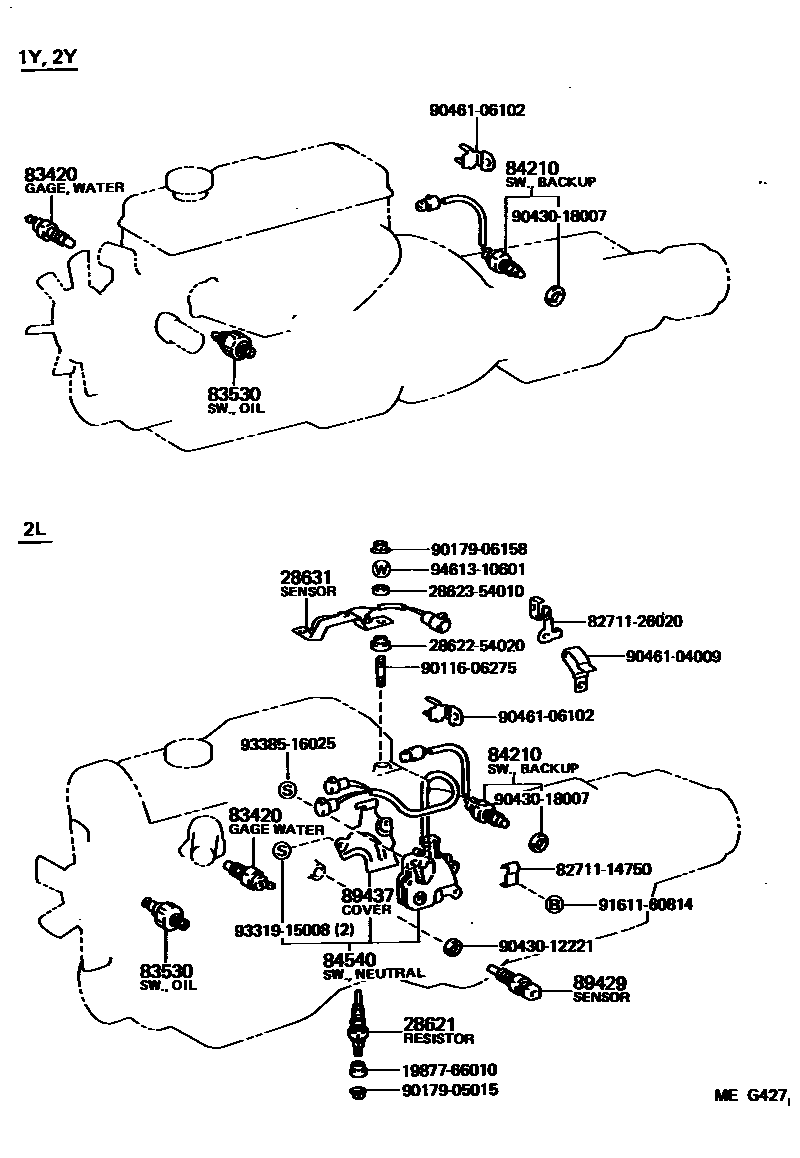

Toyota DYNA100 — SWITCH & RELAY & COMPUTER
28621RESISTOR, GLOW PLUG
28631SENSOR, GLOW PLUG CURRENT
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
89429SENSOR, OIL TEMPERATURE
89437COVER, SENSOR
1987766010
main19877-66010
2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1
main28622-54020
2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2
main28623-54010
8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14750
8271126020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26020
9011606275
main90116-06275
9017905015
main90179-05015
9017906158
main90179-06158
9043012221
main90430-12221
9043018007
main90430-18007
9046104009
main90461-04009
9046106102
main90461-06102
9161160814
main91611-60814
9331915008
main93319-15008
9338516025
main93385-16025
9461310601
main94613-10601
24 parts on this diagram · 4 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota DYNA100
This section contains 101 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota DYNA100. Key components include: RELAY ASSY, STARTER, RELAY, BULB CHECK, TIMER, PREHEATING, RELAY ASSY, INTAKE HEATER OR GLOW PLUG, COVER, GLOW PLUG RELAY.
