Toyota DYNA100 — SHORT BLOCK ASSEMBLY

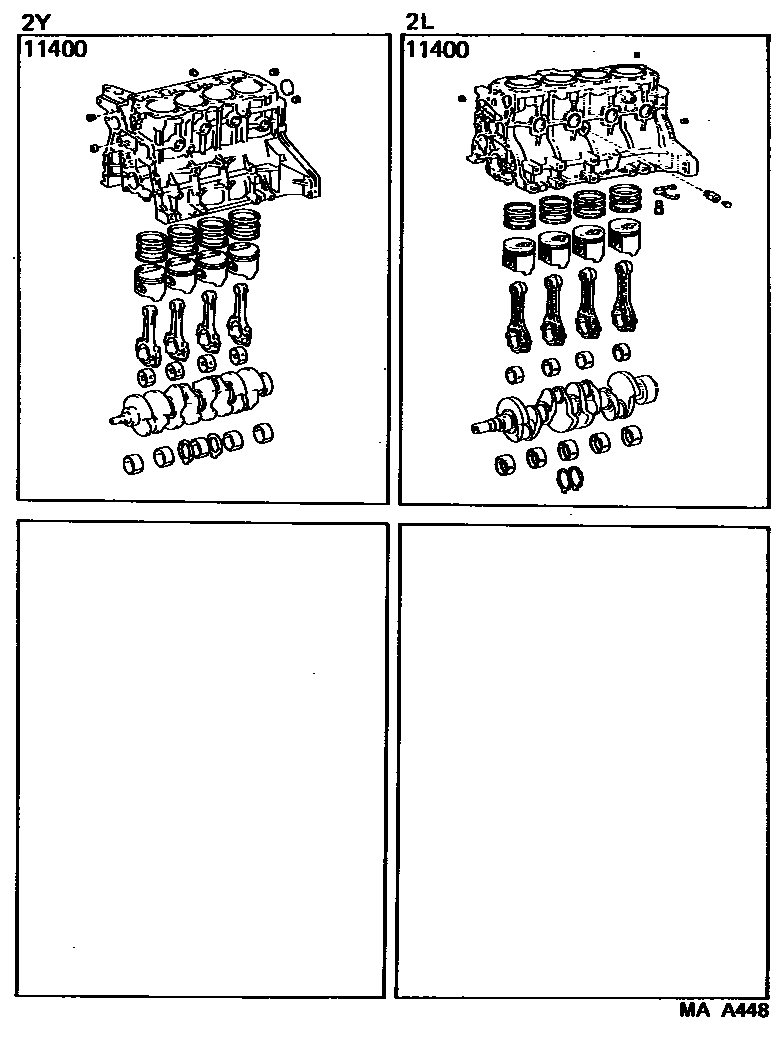

Parts diagram

11400BLOCK ASSY, SHORT

main11400-54061i198708-198805

main11400-54062i198805-198807

main11400-54063i198807-198808

main11400-54100i198808-199505

main11400-72031i198708-199505

1 parts on this diagram · 1 diagram in section
