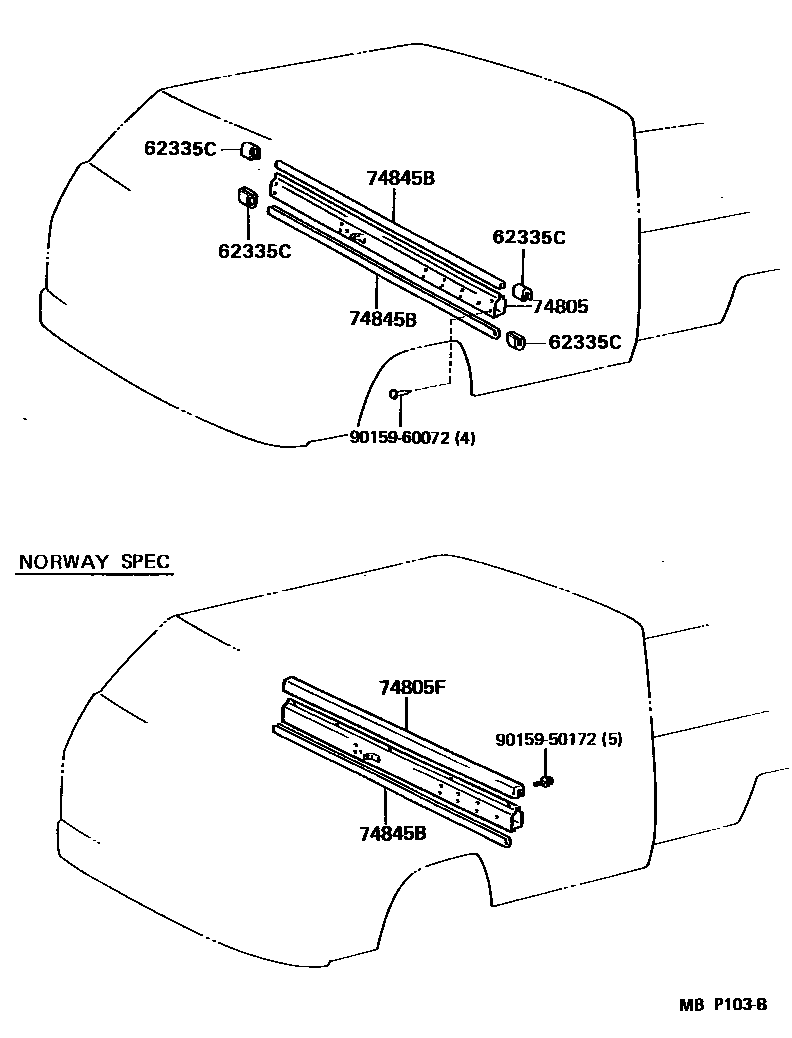

Toyota DYNA100 — SEPARATOR & SEPARATOR CURTAIN

62335CCOVER, SEPARATOR BAR

main62335-92600-06×2i198708-199109

BROWN,TRIM4#; NORWAY SPEC,BROWN,TRIM4#

main62335-92600-B0×2i199109-199505

GRAY,TRIM1#; NORWAY SPEC,GRAY,TRIM1#

74805SEPARATOR SUB-ASSY

main74805-95403i198708-199505

main74805-95404i198708-199203

main74805-95A08i198708-199505

NORWAY SPEC

74805FBAR SUB-ASSY, SEPARATOR, A

main74810-95A00-06i198708-199109

DARK BROWN,TRIM4#

main74810-95A00-B0i199109-199505

GRAY,TRIM1#

74845BORNAMENT, FRONT SEATBACK PANEL, C

main74845-95400-06i198708-199109

BROWN,TRIM4#; NORWAY SPEC,BROWN,TRIM4#

main74845-95400-B0i199109-199505

GRAY,TRIM1#; NORWAY SPEC,GRAY,TRIM1#

9015950172

main90159-50172

9015960072

main90159-60072

6 parts on this diagram · 1 diagram in section

SEPARATOR & SEPARATOR CURTAIN for Toyota DYNA100

This section contains 6 genuine Toyota parts for the SEPARATOR & SEPARATOR CURTAIN system of the Toyota DYNA100. Key components include: COVER, SEPARATOR BAR, SEPARATOR SUB-ASSY, BAR SUB-ASSY, SEPARATOR, A, ORNAMENT, FRONT SEATBACK PANEL, C.
