Toyota DYNA100 — SEPARATOR & SEPARATOR CURTAIN

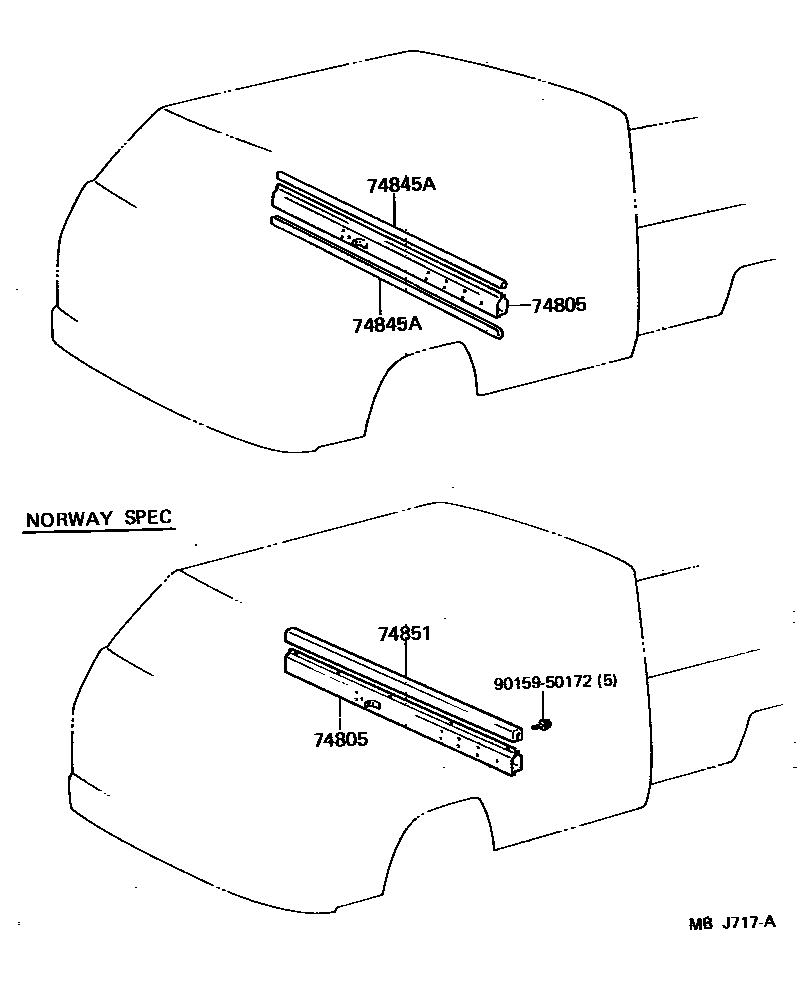

Parts diagram
74805SEPARATOR SUB-ASSY
main74805-92602i198511-198708
main74805-92607i198511-198708
main74805-92608i198511-198708
W/HEADREST
main74805-92609i198511-198708
W/HEADREST
main74805-95A02i198508-198511
W/HEADREST
main74805-95A03i198508-198511
main74805-95A04i198508-198511
main74805-95A05i198508-198511
W/HEADREST
main74805-95A07i198605-198708
NORWAY SPEC
74845AORNAMENT, FRONT SEATBACK PANEL
main74845-92600-03×2i198508-198708
GRAY,SHADOW GRAY
74851BAR, SEPARATOR
main74810-95A00i198605-198708
NORWAY SPEC
9015950172
main90159-50172

4 parts on this diagram · 1 diagram in section

SEPARATOR & SEPARATOR CURTAIN for Toyota DYNA100

This section contains 4 genuine Toyota parts for the SEPARATOR & SEPARATOR CURTAIN system of the Toyota DYNA100. Key components include: SEPARATOR SUB-ASSY, ORNAMENT, FRONT SEATBACK PANEL, BAR, SEPARATOR.
