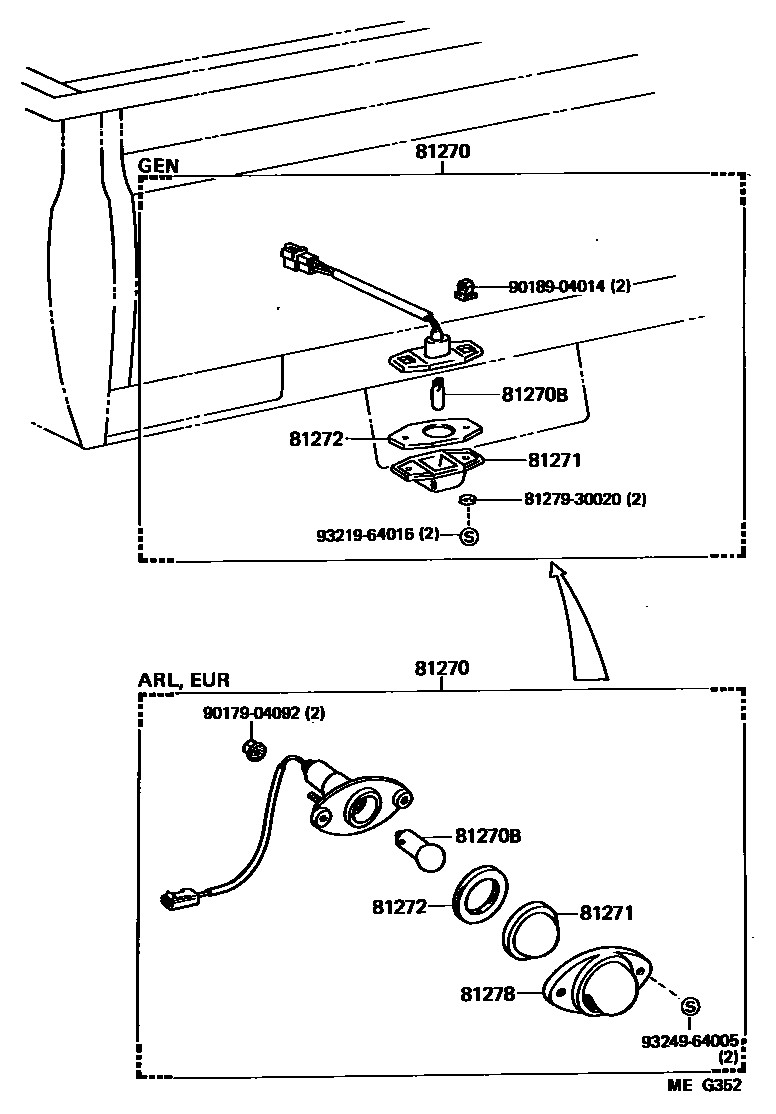

Toyota DYNA100 — REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-29395iLH80,YH80..GEN198508-198608

main81270-29725iLH80,YH81..ARL,EUR198508-198608

main81270-95014iLH80,YH80..GEN198608-198708

sub81270-25070

main81270-95015iLH80,YH81..ARL,EUR198608-198708

sub81270-37030

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12013iLH80,YH81..ARL,EUR198508-198708

12V 10W,12V 10W

main99132-12050iLH80,YH80..GEN198508-198708

12V 5W,12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-10010iLH80,YH81..ARL,EUR198702-198708

main81271-10011iLH80,YH81..ARL,EUR198508-198702

sub81271-10010

main81271-89110iLH80,YH80..GEN198508-198708

sub81271-25030

81272GASKET, LICENSE PLATE LAMP LENS

main81272-10010iLH80,YH81..ARL,EUR198508-198708

main81272-89110iLH80,YH80..GEN198508-198708

81278COVER, LICENSE PLATE LAMP

main81278-10011iLH80,YH81..ARL,EUR198508-198708

8127930020WASHER, SIDE TURN SIGNAL LAMP

main81279-30020

9017904092

main90179-04092

9018904014

main90189-04014

9321964016

main93219-64016

9324964005

main93249-64005

10 parts on this diagram · 1 diagram in section
