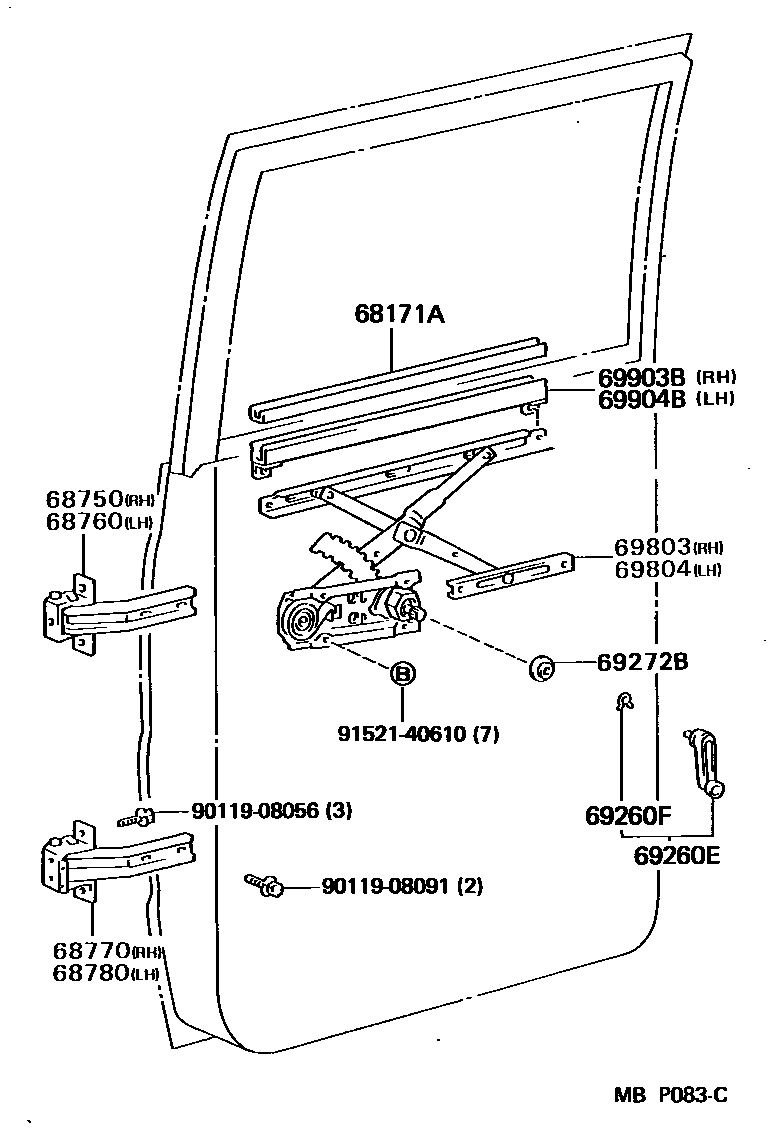

Toyota DYNA100 — REAR DOOR WINDOW REGULATOR & HINGE

68171AWEATHERSTRIP, REAR DOOR GLASS CHANNEL

main68171-22020iLH80,YH81..TW198708-199208

sub69971-22010

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-95401iLH80,YH81..TW198708-199505

68760HINGE ASSY, REAR DOOR, UPPER LH

main68750-95401iLH80,YH81..TW198708-199505

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-95401iLH80,YH81..TW198708-199505

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-95402iLH80,YH81..TW198708-199505

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-06iLH80,YH81..TW198708-199109

BROWN,TRIM4#

sub69260-10040

sub69260-16010

main69260-10040-08iLH80,YH81..TW199109-199308

BLUISH GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-B1iLH80..TW199308-199505

BLUISH GRAY,TRIM1#

sub69260-10040

sub69260-16010

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLH80,YH81..TW198708-199109

sub90520-01274

main90520-01274iLH80,YH81..TW199109-199505

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69272-30010-08iLH80,YH81..TW198708-199109

NATURAL WHITE,TRIM4#

sub69272-30010

main69272-30010-08iLH80,YH81..TW199109-199505

NATURAL WHITE,TRIM1#

sub69272-30010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-95400iLH80,YH81..TW198708-199505

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-95400iLH80,YH81..TW198708-199505

69903BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69901-87002iLH80,YH81..TW198708-199505

69904BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69901-87002iLH80,YH81..TW198708-199505

9011908056

main90119-08056

9011908091

main90119-08091

9152140610

main91521-40610

15 parts on this diagram · 1 diagram in section
