Toyota DYNA100 — REAR BODY FLOOR & FENDER

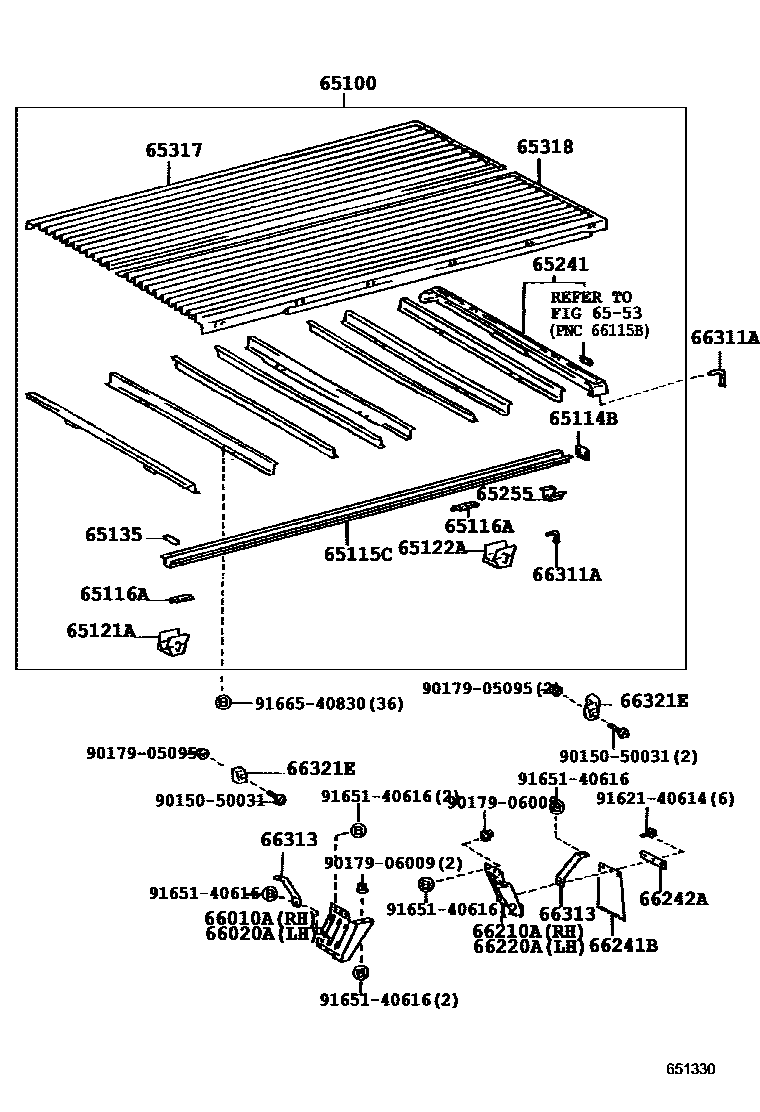

Parts diagram
65100FLOOR ASSY, REAR BODY
main65100-26110i199210-199505
main65100-95A16i198708-198910
sub65100-95A26
main65100-95A18i198708-199203
sub65100-26100
main65100-95A19i198708-199210
sub65100-26110
main65100-95A26i198910-199505
65114BCOVER, MAIN SILL, REAR
main65114-95A00i199109-199505
65115CSILL, MAIN
main65115-95A04i199109-199505
65116APLATE, MAIN SILL
main65116-26010i199109-199505
RR
main65116-95A02i199109-199505
FR
65121ABRACKET, MAIN SILL MOUNTING, NO.1
main65121-95A03i199109-199505
65122ABRACKET, MAIN SILL MOUNTING, NO.2
main65122-95A01i199109-199505
65135PATCH, MAIN SILL
main65135-95A00i199109-199505
65241SILL, REAR CROSS
main65240-26020i199210-199505
main65240-95A03i198708-199203
sub65240-26010
main65240-95A04i198708-199210
sub65240-26020
main65240-95A06i198708-198910
sub65240-95A09
main65240-95A09i198910-199505
65255GUSSET, MAIN SILL
main65255-95A01i199109-199505
65317PANEL, FLOOR SIDE, RH
main65317-95041i198708-198910
sub65317-95045
main65317-95045i198910-199505
65318PANEL, FLOOR SIDE, LH
main65318-95039i198708-198910
sub65318-95041
main65318-95041i198910-199505
6553
66010AFENDER ASSY, REAR NO.2 RH
main66010-26010i198910-199505
sub66010-25090
main66010-95A02i198708-198910
sub66010-26010
66020AFENDER ASSY, REAR NO.2 LH
main66020-26010i198910-199505
sub66020-25080
main66020-95A02i198708-198910
sub66020-26010
66210AFENDER ASSY, REAR NO.1 RH
main66205-95A00i198708-198804
sub66205-95A01
main66205-95A01i198804-199505
sub66205-25010
main66210-95A02i198708-199505
sub66210-25050
66220AFENDER ASSY, REAR NO.1 LH
main66205-95A00i198708-198804
sub66205-95A01
main66205-95A01i198804-199505
sub66205-25010
main66220-95A02i198708-199505
sub66220-25050
66241BBAFFLE, RUBBER
main66241-95600i198708-199505
66242APLATE, BAFFLE RUBBER
main66242-95012i198708-199505
66311AHOOK, ROPE, NO.1
main66312-95A00i198708-199505
66313SUPPORT, REAR FENDER
main66235-26010i198910-199505
FR
main66235-95A02i198708-198910
FR
main66236-26020i199109-199505
RR
main66236-95A02i198708-199109
RR
sub66236-26020
66321EBUMPER, GATE RUBBER
main66321-25010i199109-199505
RR
sub66321-25020
main66321-95017i198708-199109
RR
sub66321-25010
main66321-95406i198708-199505
sub66321-37010
main66331-95010i198708-199505
FR
9015050031
main90150-50031
9017905095
main90179-05095
9017906009
main90179-06009
9162140614
main91621-40614
9165140616
main91651-40616
9166540830
main91665-40830

27 parts on this diagram · 2 diagrams in section
