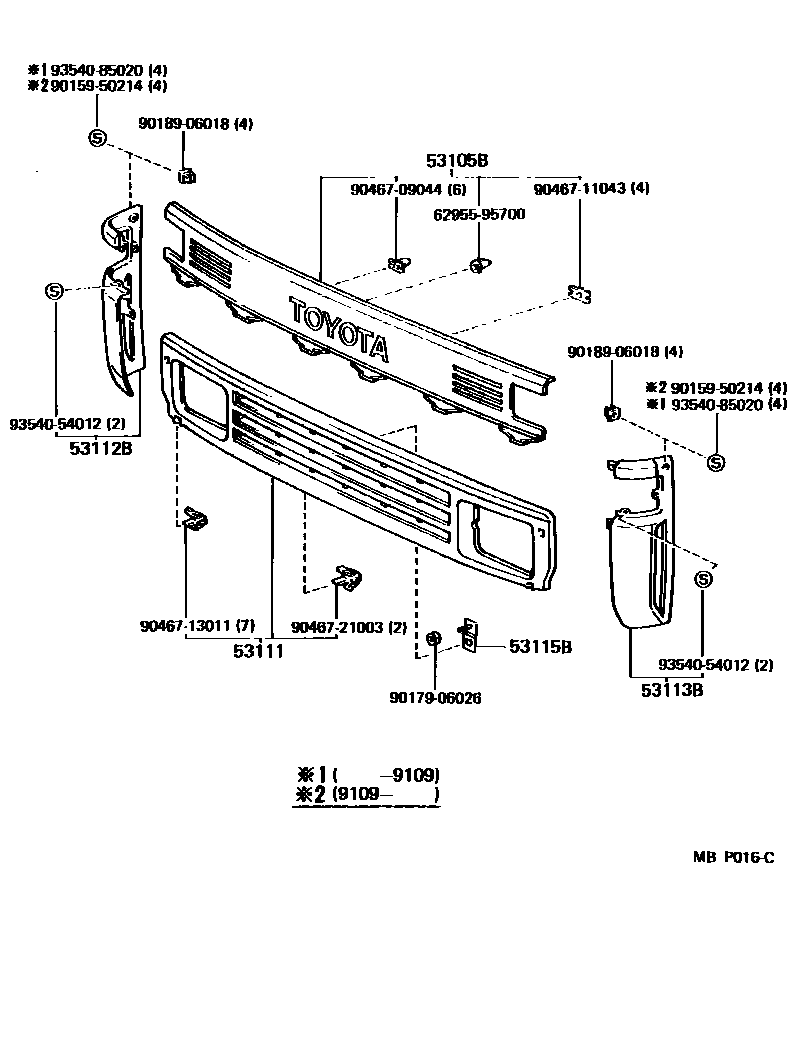

Toyota DYNA100 — RADIATOR GRILLE

53105BGARNISH SUB-ASSY, RADIATOR GRILLE

main53105-95A02iLH80,YH81198708-199505

53111GRILLE, RADIATOR

main53111-95A02iLH80,YH81198708-199505

53112BGRILLE, RADIATOR SIDE, RH

main53112-95A01iLH80,YH81198708-199505

53113BGRILLE, RADIATOR SIDE, LH

main53113-95A01iLH80,YH81198708-199505

53115BBRACKET, RADIATOR GRILLE

main53115-95A00iLH80,YH81198708-199505

6295595700SEAL, ROOF SIDE VENT

main62955-95700

9015950214

main90159-50214

9017906026

main90179-06026

9018906018

main90189-06018

9046709044

main90467-09044

9046711043

main90467-11043

9046713011

main90467-13011

9046721003

main90467-21003

9354054012

main93540-54012

9354085020

main93540-85020

15 parts on this diagram · 1 diagram in section
