Toyota DYNA100 — PARTIAL ENGINE ASSEMBLY

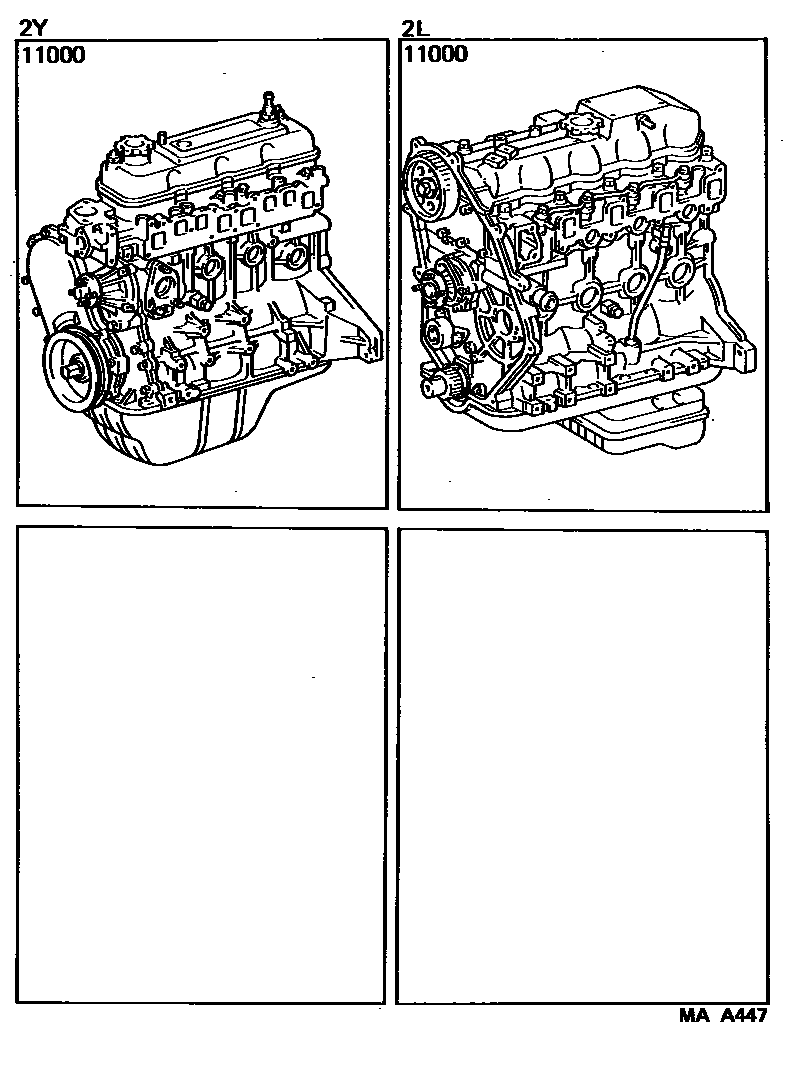

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-54530i198708-198805
sub13405-54011
sub32101-30052
sub32116-35010
sub32117-35010
sub90105-12014
sub90105-12109
main19000-54531i198805-198807
sub31349-26020
main19000-54532i198807-198808
main19000-54790i198708-198712
MALAYSIA SPEC
sub13405-54011
sub90105-12109
main19000-54860i198808-198910
main19000-5B130i198910-199505
main19000-5B140i198910-199505
main19000-72170i198910-199001
main19000-72330i198910-199303
main19000-72331i199303-199505
main19000-72350i199001-199303
main19000-72351i199303-199505

1 parts on this diagram · 1 diagram in section
