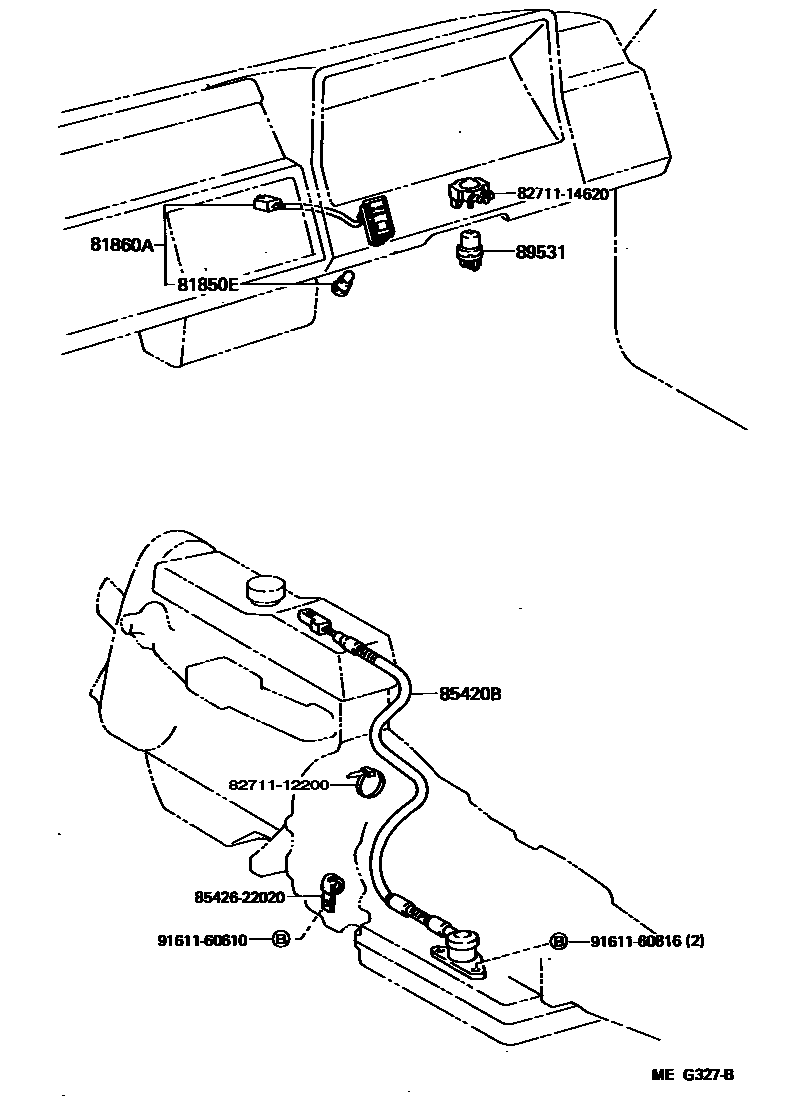

Toyota DYNA100 — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

81850EBULB, INDICATOR LAMP

main84999-10110iLH80..4FC198508-198708

12V 1.12W

81860ALAMP ASSY, TRANSMISSION INDICATOR

main81860-20050iLH80..4FC198508-198708

85420BSOLENOID ASSY, TRANSMISSION

main85420-12050iLH80..4FC198508-198708

89531RELAY, TRANSMISSION CONTROL

main90987-03001iLH80..4FC198508-198708

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271114620WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14620

8542622020CLAMP, OVER DRIVE SOLENOID

main85426-22020

9161160610

main91611-60610

9161160816

main91611-60816

9 parts on this diagram · 1 diagram in section
