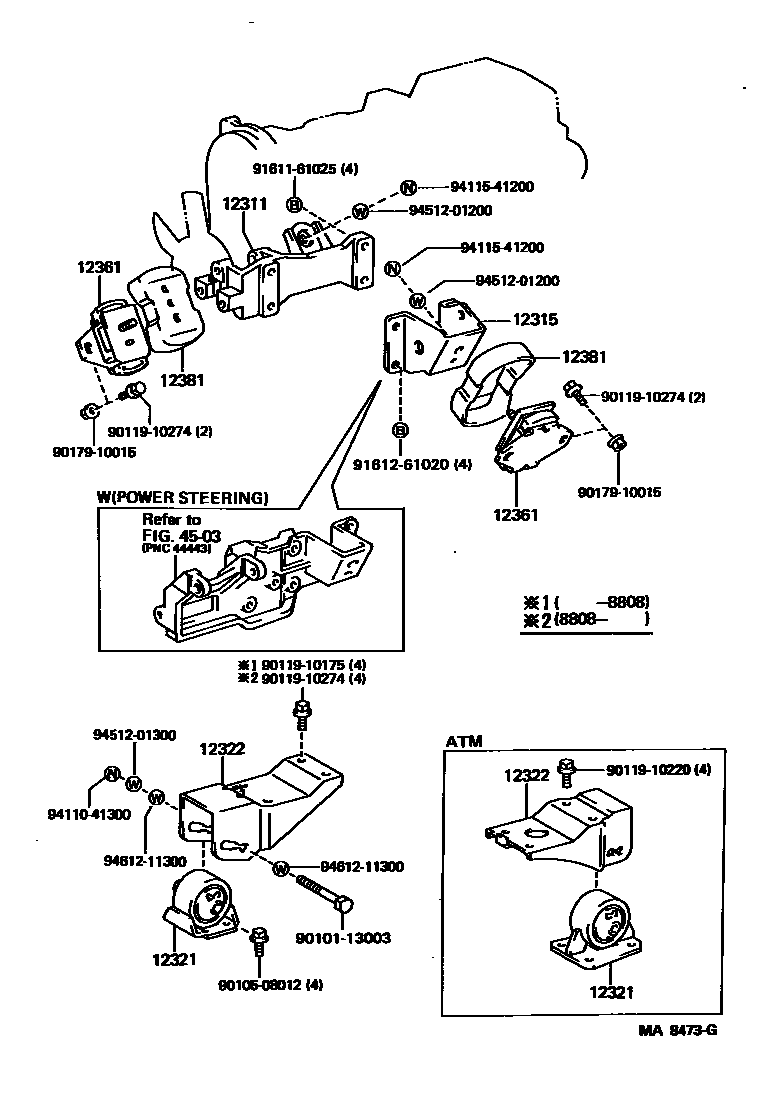

Toyota DYNA100 — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-54090i2L..LH80198708-199505

sub12311-54091

main12311-71010i2Y..YH81198708-199505

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54021i2L..LH80..EUR,GEN198708-199505

main12315-71010i2Y..YH81198708-199505

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12303-54020i2L..LH80..5F198708-199308

sub12303-67020

main12303-54030i2L..LH80..4FC198708-199203

sub12303-67030

main12303-67020i2Y..YH81199308-199505

sub12303-67021

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-54050i2Y..YH81198708-199505

main12322-54060i2L..LH80..4FC198708-199203

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-54120i2L..LH80198708-199001

sub12361-54121

main12361-54121i2L..LH80199001-199505

main12361-71020i2Y..YH81198708-199505

12381STABILIZER, ENGINE MOUNTING

main12381-54040i2L..LH80198708-199505

main12381-71030i2Y..YH81198708-199505

4503

9010113003

main90101-13003

9010508012

main90105-08012

9011910175

main90119-10175

9011910220

main90119-10220

9011910274

main90119-10274

9017910015

main90179-10015

9161161025

main91611-61025

9161261020

main91612-61020

9411041300

main94110-41300

9411541200

main94115-41200

9451201200

main94512-01200

9451201300

main94512-01300

9461211300

main94612-11300

20 parts on this diagram · 2 diagrams in section
