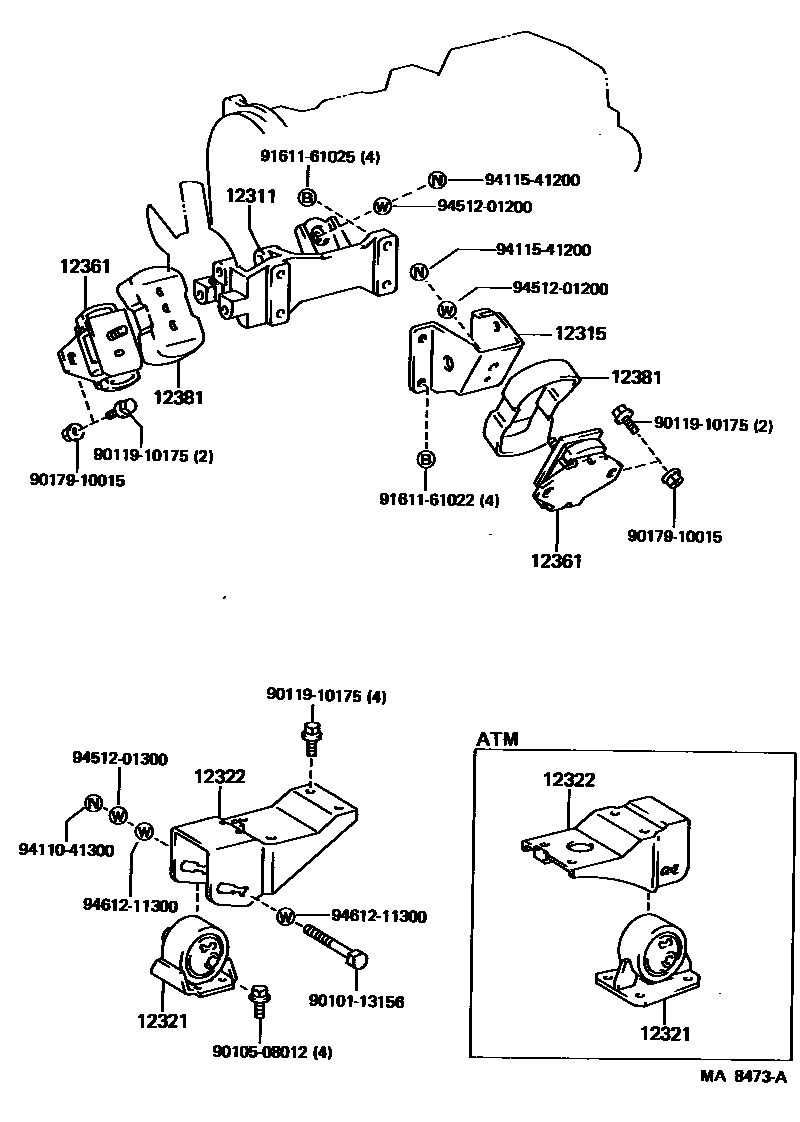

Toyota DYNA100 — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-54090i2L..LH80198508-198708

sub12311-54091

main12311-71010i1Y,2Y..YH8#198508-198708

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54020i2L..LH80..EUR,GEN198508-198608

sub12312-54021

main12312-54021i2L..LH80..EUR,GEN198608-198708

main12315-71010i1Y,2Y..YH8#198508-198708

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12303-18020i2L..LH80..4FC198508-198701

main12303-54020i2L..LH80..5F198701-198708

sub12303-67020

main12303-54030i2L..LH80..4FC198701-198708

sub12303-67030

main12303-72010i2L..LH80..5F198508-198701

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-54050i2L..LH80..5F198508-198708

main12322-54060i2L..LH80..4FC198508-198708

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-54120i2L..LH80198508-198708

sub12361-54121

main12361-71020i1Y,2Y..YH8#198508-198708

12381STABILIZER, ENGINE MOUNTING

main12381-54020i2L..LH80198508-198510

main12381-54040i2L..LH80198510-198708

main12381-71030i1Y,2Y..YH8#198508-198708

9010113156

main90101-13156

9010508012

main90105-08012

9011910175

main90119-10175

9017910015

main90179-10015

9161161022

main91611-61022

9161161025

main91611-61025

9411041300

main94110-41300

9411541200

main94115-41200

9451201200

main94512-01200

9451201300

main94512-01300

9461211300

main94612-11300

17 parts on this diagram · 2 diagrams in section
