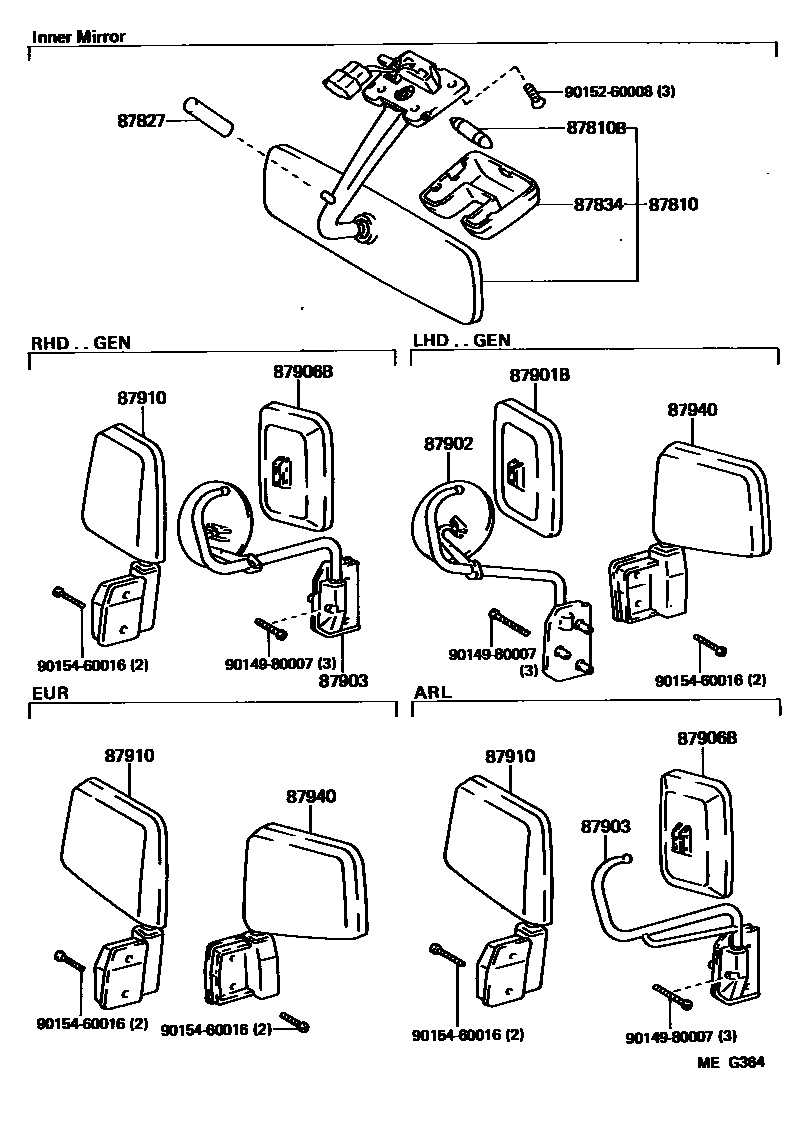

Toyota DYNA100 — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-95418i198508-198708

main87810-95420i198508-198607

main87810-95426i198607-198708

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027i198508-198708

12V 10W,12V 10W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-23010i198508-198708

L=38.5

main87828-30010i198508-198708

L=43.5

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701i198508-198708

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-95417i198604-198708

DENMARK SPEC

main87901-95A00i198508-198708

87902SUPPORT, REAR VIEW OUTSIDE MIRROR, RH

main87093-95401i198604-198708

DENMARK SPEC

main87093-95A00i198508-198708

87903SUPPORT, REAR VIEW OUTSIDE MIRROR, LH

main87094-95010i198508-198708

main87094-95400i198508-198708

main87094-95402i198604-198708

DENMARK SPEC

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87901-95414i198508-198708

main87901-95417i198604-198708

DENMARK SPEC

main87901-95A00i198508-198708

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-95A10i198508-198708

main87910-95A11i198508-198606

main87910-95A12i198508-198708

main87910-95A14i198606-198708

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-95A04i198508-198606

main87940-95A06i198508-198708

main87940-95A08i198606-198708

9014980007

main90149-80007

9015260008

main90152-60008

9015460016

main90154-60016

13 parts on this diagram · 2 diagrams in section

MIRROR for Toyota DYNA100

This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota DYNA100. Key components include: MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
