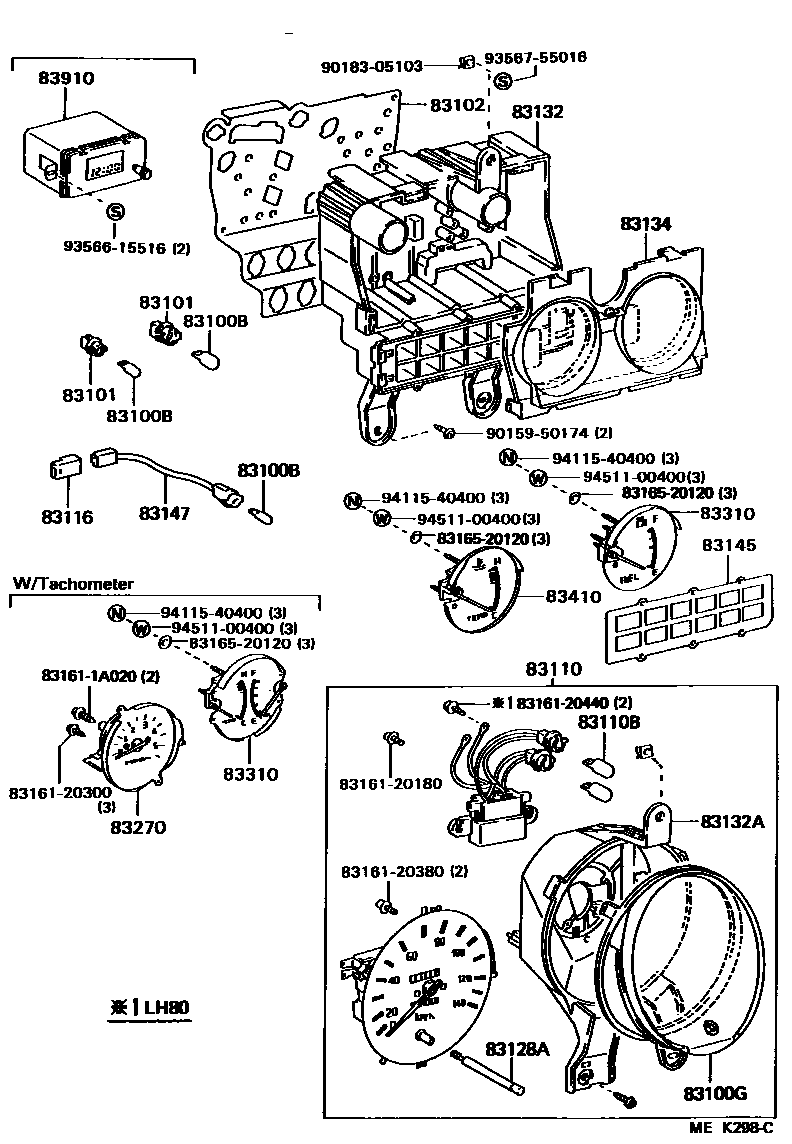

Toyota DYNA100 — METER
83100BBULB, COMBINATION METER, NO.1
12V 1.2W W/O SOCKET,SOCKET:83101-14040
12V 3.4W; 12V 3.4W,SOCKET:83101-20040
83100GGLASS, COMBINATION METER
KM
W(TRIP METER)
83101SOCKET SUB-ASSY, COMBINATION METER BULB
BULB:90981-11018
BULB:99132-12034
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
W(TACHOMETER)
W(TACHOMETER)
W(AIR CLEANER & TACHOMETER)
83110SPEEDOMETER ASSY
W(TRIP METER)
W(KM/MILE)
W(KM/MILE)
W(KM/MILE)
W(KM/MILE)
83110BBULB, SPEEDOMETER
83116BRACKET, SPEEDOMETER
83128AKNOB, METER
83132CASE, COMBINATION METER
W(TACHOMETER)
83132ACASE, METER
83134COVER, COMBINATION METER, NO.1
83145LENS, METER, NO.1
W(AIR CLEANER)
W(AIR CLEANER)
83147LAMP, METER NO.1
83270TACHOMETER ASSY, ENGINE
83310GAGE ASSY, FUEL RECEIVER
W(TACHOMETER)
W(TACHOMETER)
MIDDLE EAST SPEC & W(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
MIDDLE EAST SPEC
831611A020CASE, COMBINATION METER MIRROR, NO.1
main83161-1A020
8316120180CASE, COMBINATION METER MIRROR, NO.1
main83161-20180
8316120300CASE, COMBINATION METER MIRROR, NO.1
main83161-20300
8316120380CASE, COMBINATION METER MIRROR, NO.1
main83161-20380
8316120440CASE, COMBINATION METER MIRROR, NO.1
main83161-20440
8316520120MIRROR, COMBINATION METER, NO.2
main83165-20120
9015950174
main90159-50174
9018305103
main90183-05103
9356615516
main93566-15516
9356755016
main93567-55016
9411540400
main94115-40400
9451100400
main94511-00400
29 parts on this diagram · 3 diagrams in section
METER for Toyota DYNA100
This section contains 43 genuine Toyota parts for the METER system of the Toyota DYNA100. Key components include: INJECTION PUMP BODY, BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1.
