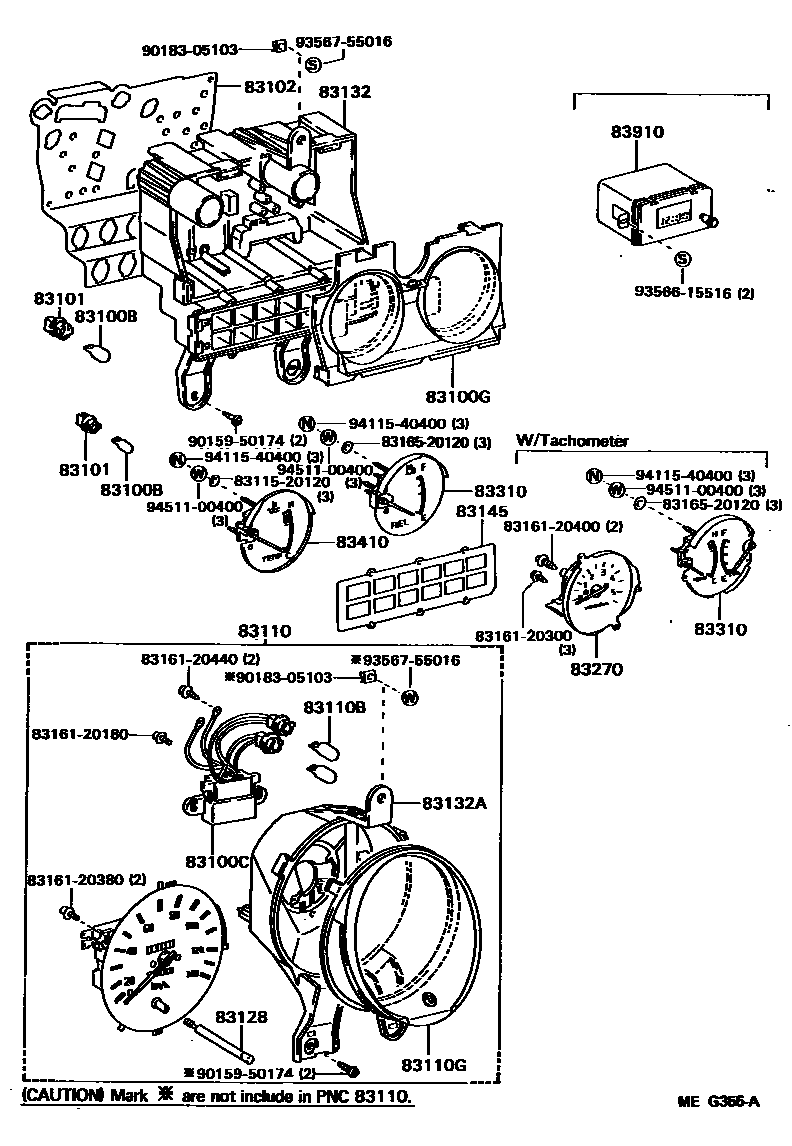

Toyota DYNA100 — METER
83100BBULB, COMBINATION METER, NO.1
12V 1.2W W/O SOCKET,12V 1.4W
12V 3.4W,12V 3.4W
83100CCONNECTOR, COMBINATION METER
83100GGLASS, COMBINATION METER
W/TACHOMETER
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 1.4W
12V 3.4W
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
W/TACHOMETER
W/*CAC
W/TACHOMETER
W/TACHOMETER
83110SPEEDOMETER ASSY
KM,W/TRIP METER
KM & MILE,W/TRIP METER
KM
KM & MILE
KM
KM,W/TRIP METER
KM & MILE
KM & MILE,W/TRIP METER
83110BBULB, SPEEDOMETER
12V 3.4W
83110GGLASS, SPEEDOMETER
W/TRIP COUNTER
83128KNOB, TRIP COUNTER
83132CASE, COMBINATION METER
W/TACHOMETER
83132ACASE, METER
83145LENS, METER, NO.1
W/*CAC
83310GAGE ASSY, FUEL RECEIVER
W/TACHOMETER
W/TACHOMETER
*ME,W/TACHOMETER
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
*ME
83910CLOCK ASSY
8311520120
main83115-20120
8316120180CASE, COMBINATION METER MIRROR, NO.1
main83161-20180
8316120300CASE, COMBINATION METER MIRROR, NO.1
main83161-20300
8316120380CASE, COMBINATION METER MIRROR, NO.1
main83161-20380
8316120400CASE, COMBINATION METER MIRROR, NO.1
main83161-20400
8316120440CASE, COMBINATION METER MIRROR, NO.1
main83161-20440
8316520120MIRROR, COMBINATION METER, NO.2
main83165-20120
9015950174
main90159-50174
9018305103
main90183-05103
9356615516
main93566-15516
9356755016
main93567-55016
9411540400
main94115-40400
9451100400
main94511-00400
29 parts on this diagram · 3 diagrams in section
METER for Toyota DYNA100
This section contains 43 genuine Toyota parts for the METER system of the Toyota DYNA100. Key components include: INJECTION PUMP BODY, BULB, COMBINATION METER, NO.1, CONNECTOR, COMBINATION METER, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB.
