Toyota DYNA100 — HEATING & AIR CONDITIONING - SET

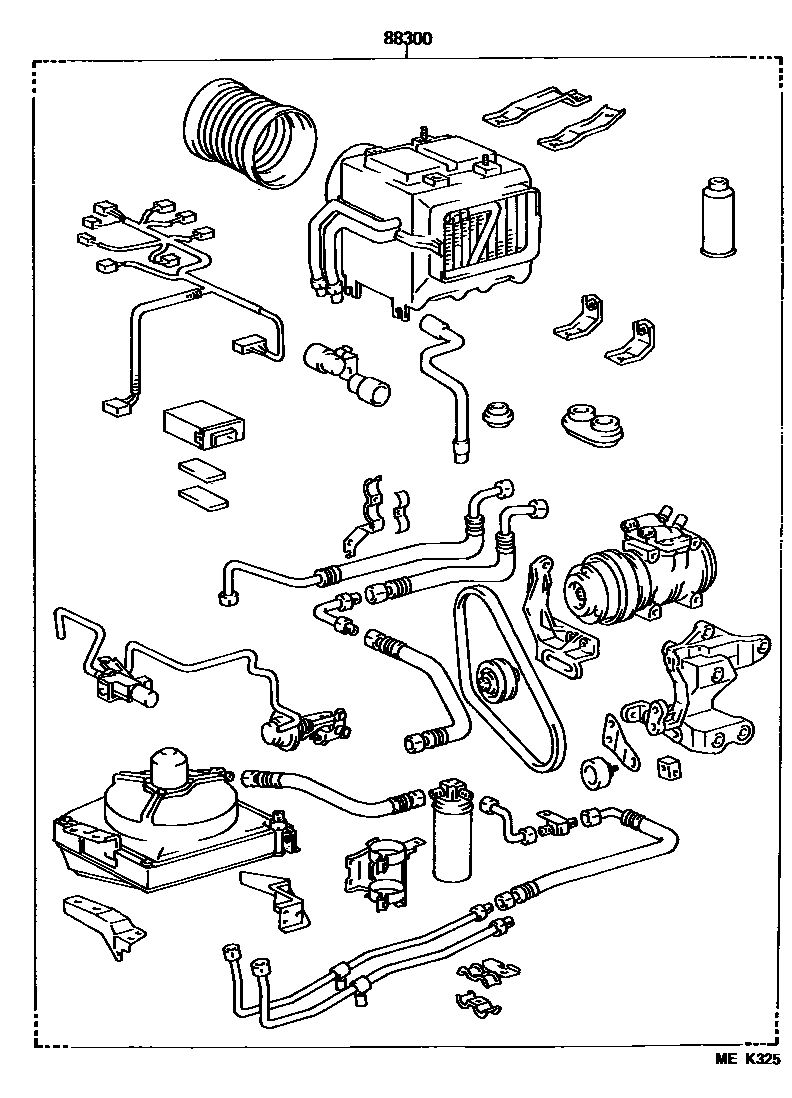

Parts diagram

88300COOLER & ACCESSORY ASSY

main88300-2F320i199309-199505

DEALER OPTION

main88300-2F330i199309-199505

MAKER OPTION

main88300-2F340i199309-199505

DEALER OPTION

main88300-2F350i199309-199505

MAKER OPTION

main88300-2F370i199309-199505

DEALER OPTION

main88300-2F390i199309-199505

MAKER OPTION

main88300-95K22i198708-198808

main88300-95K23i198708-199309

main88300-95K24i198708-199309

main88300-95K25i198708-198808

main88300-95K29i198808-199309

main88300-95K30i198808-199309

1 parts on this diagram · 1 diagram in section
